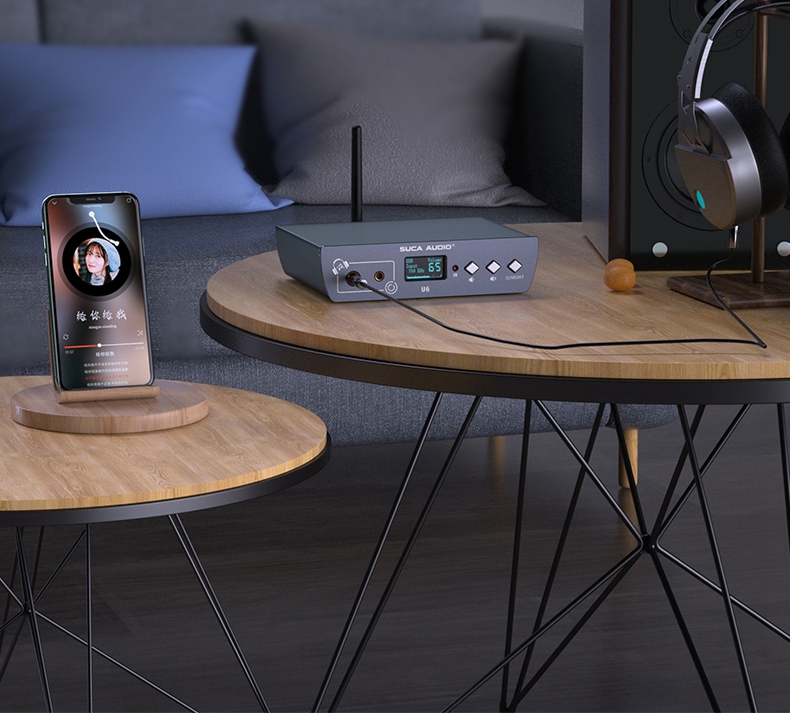

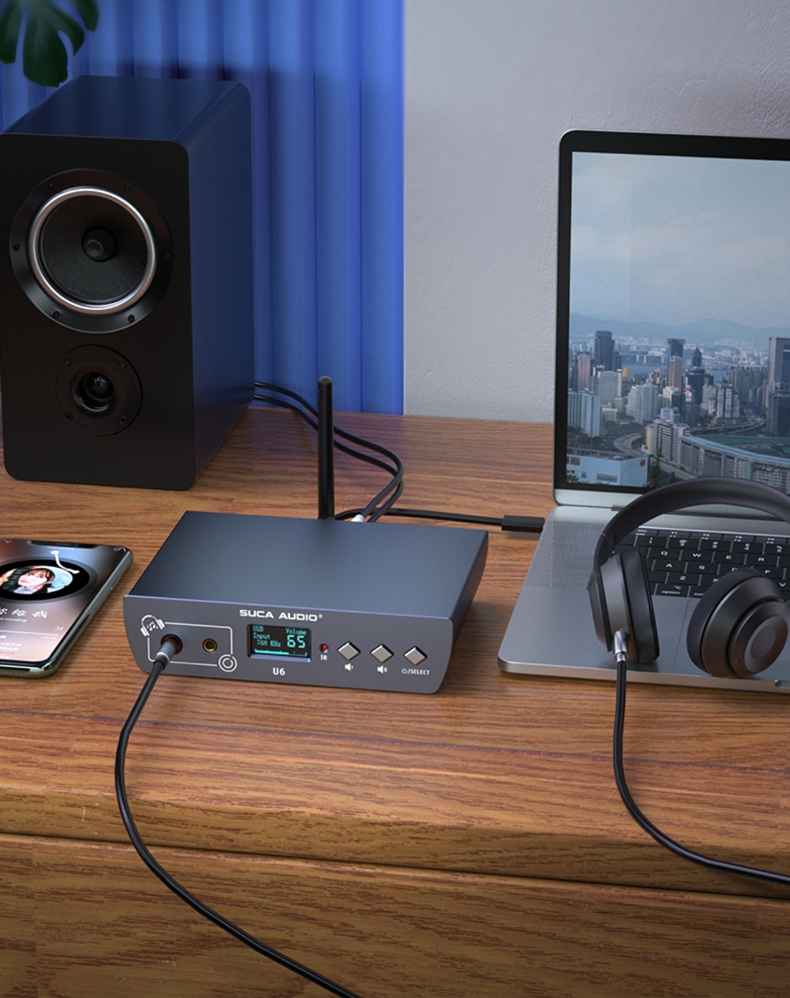

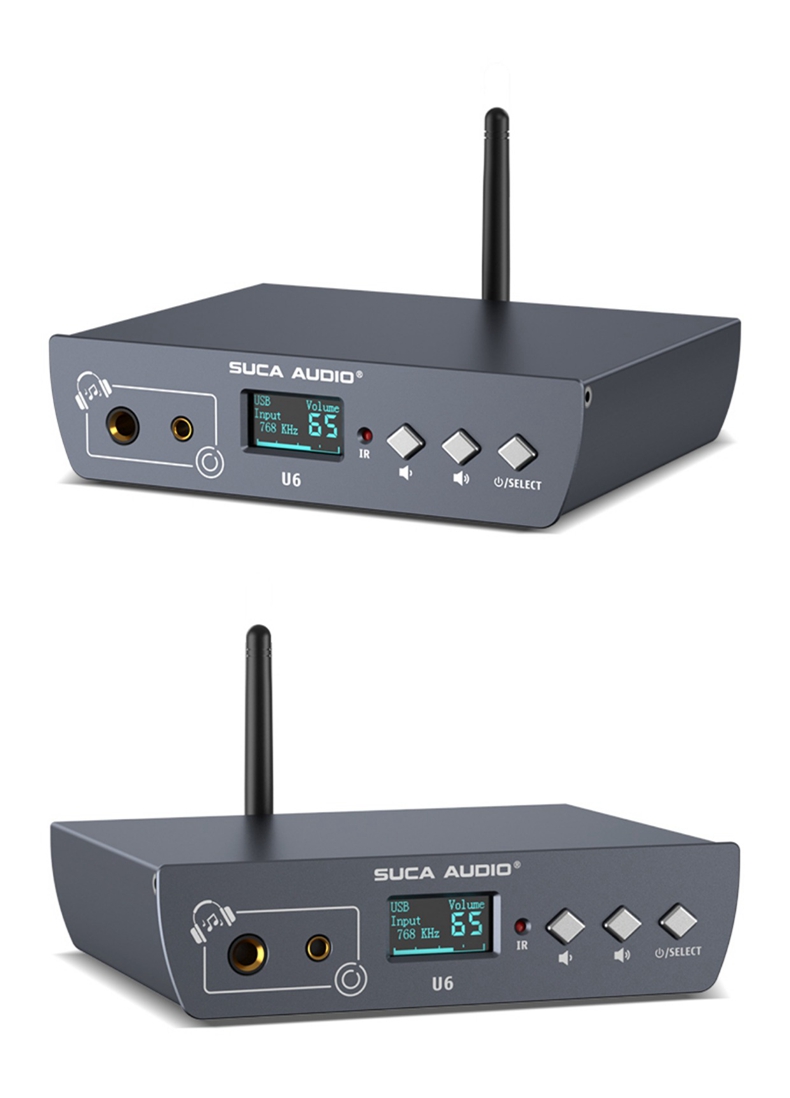

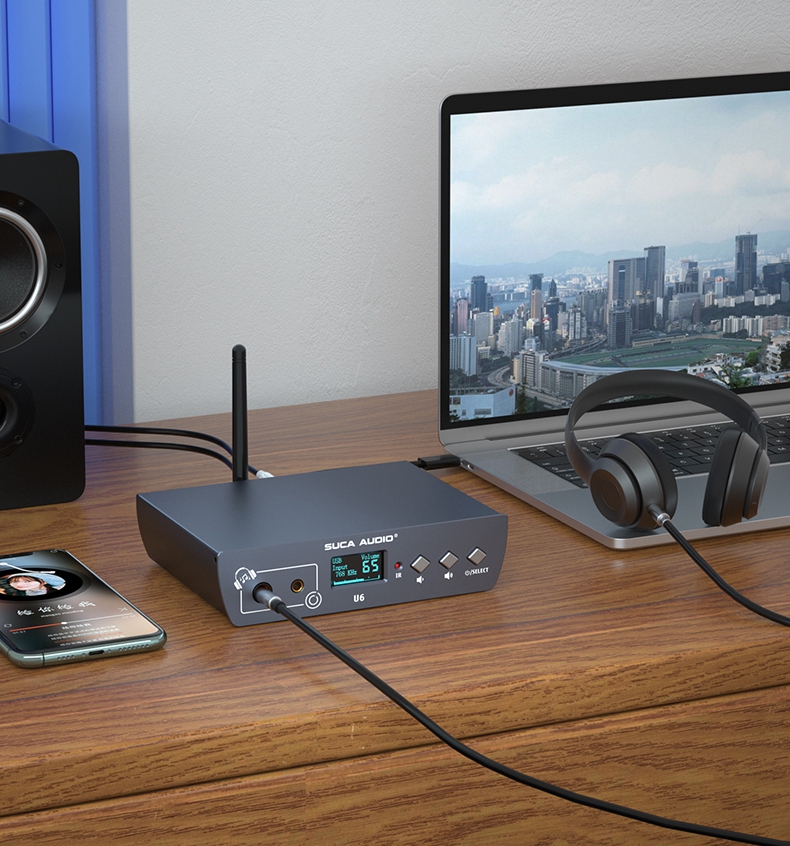

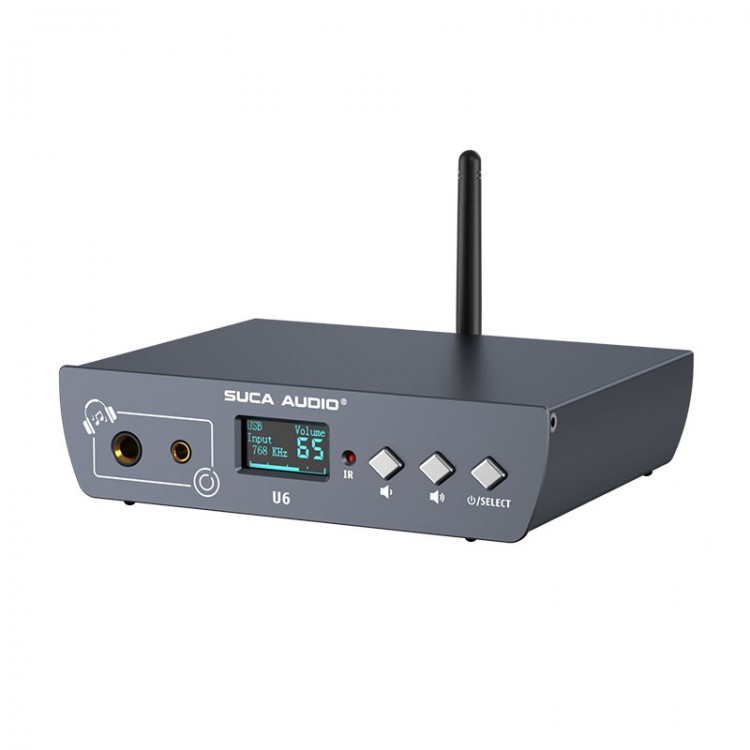

U6 Audio Decoder DSD512 Multifunctional Optical Fiber Coaxial XLR Balanced Output Decoder Headphone Amplifier in One
Features:
- Bluetooth 5.0

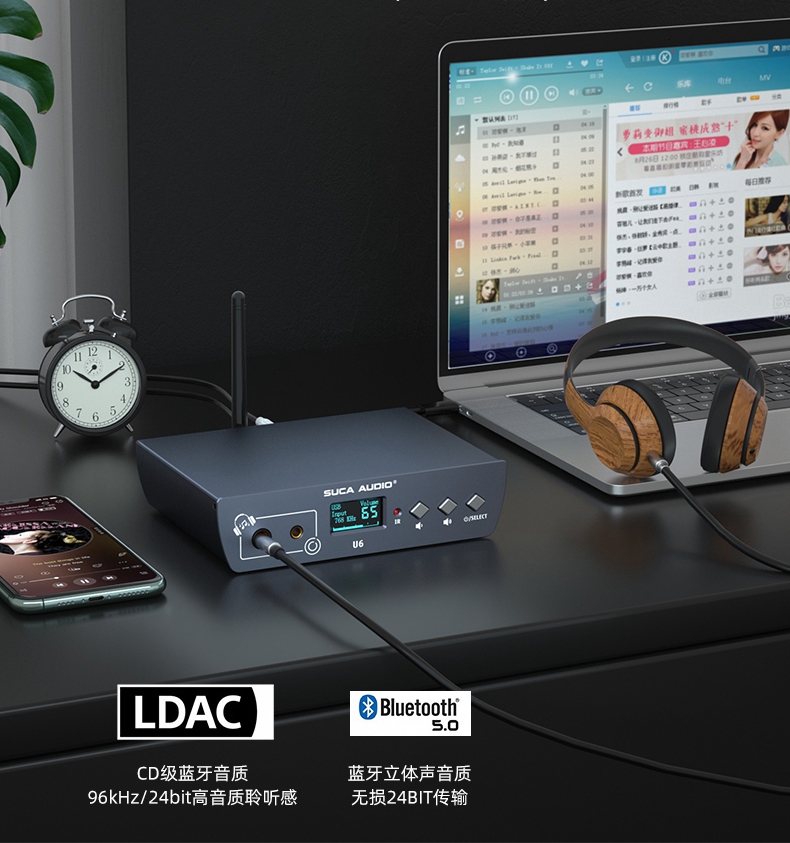

- CSR8675 is a Bluetooth chip supporting LDAC 96 kHz/24 bit sampling rate with high-speed transmission and low delay.
- 6.35 and 4.4mm headphone output, support 16~600ohm resistance.

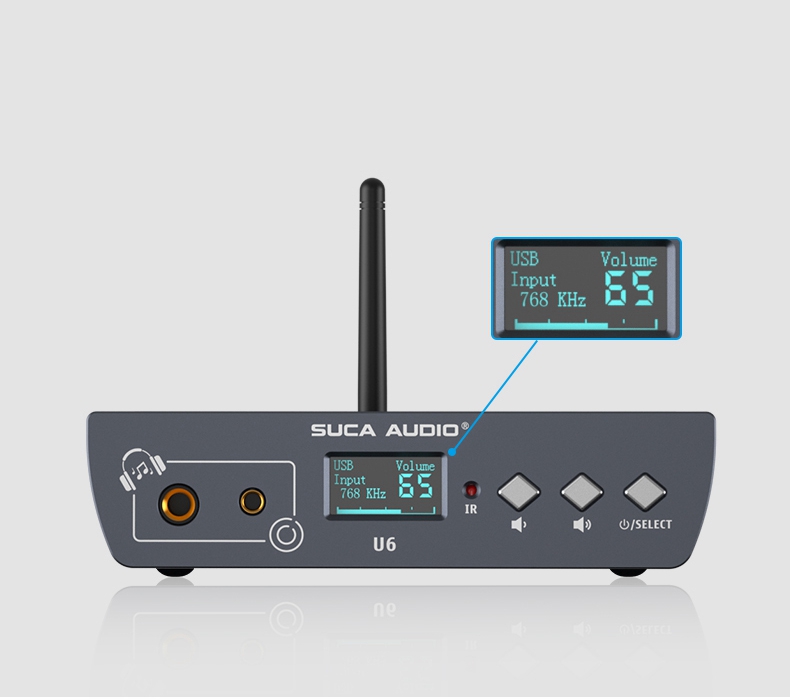

- It adopted OLED display screen.

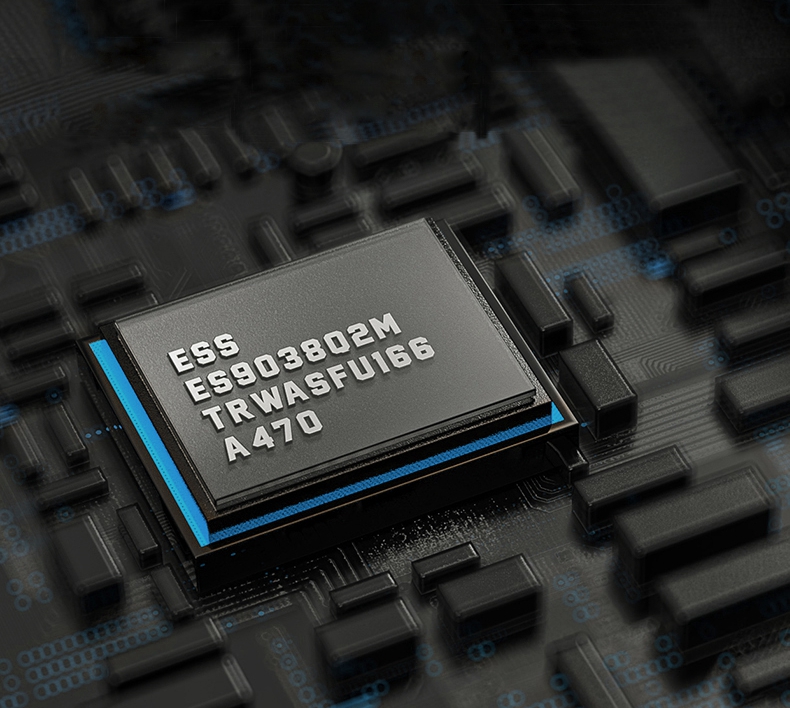

- ES9038 chip: The distortion is reduced by 50%, the LO crosstalk attenuation is increased by more than 6dB, the resolution is better, and the dynamic range is increased by 3dB.

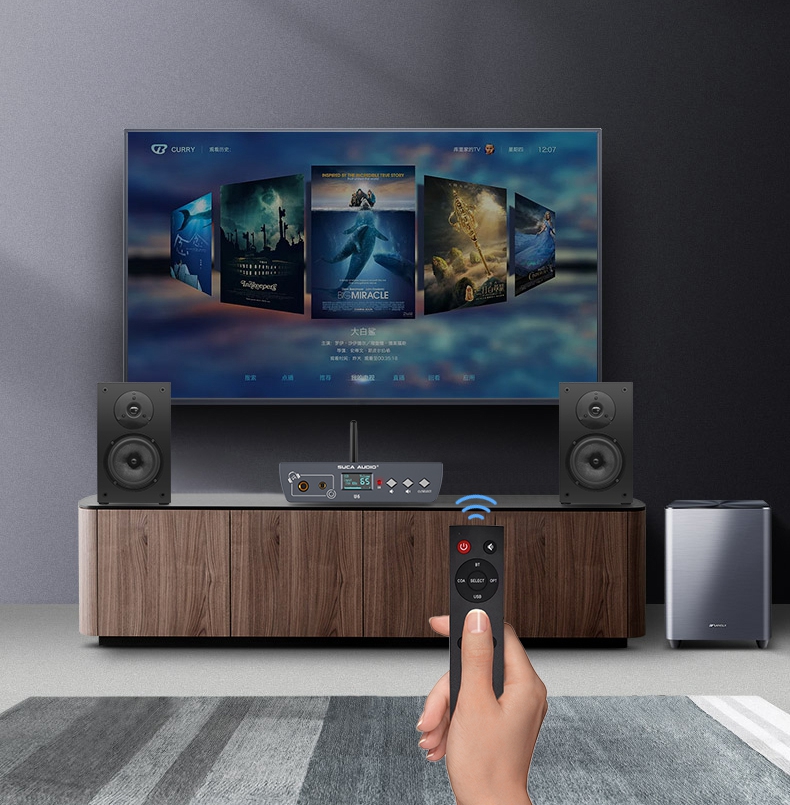

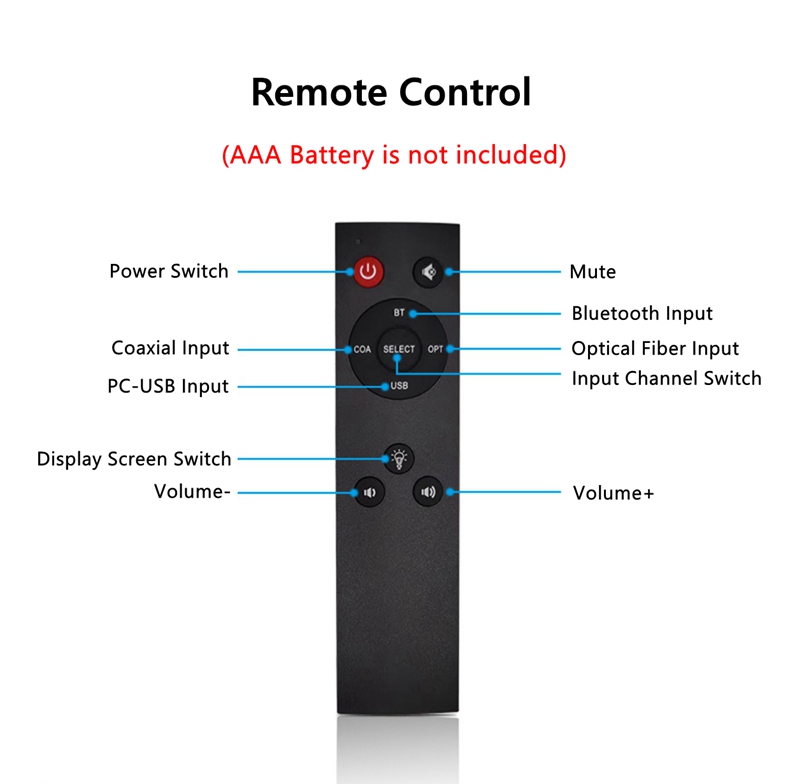

- Support remote control

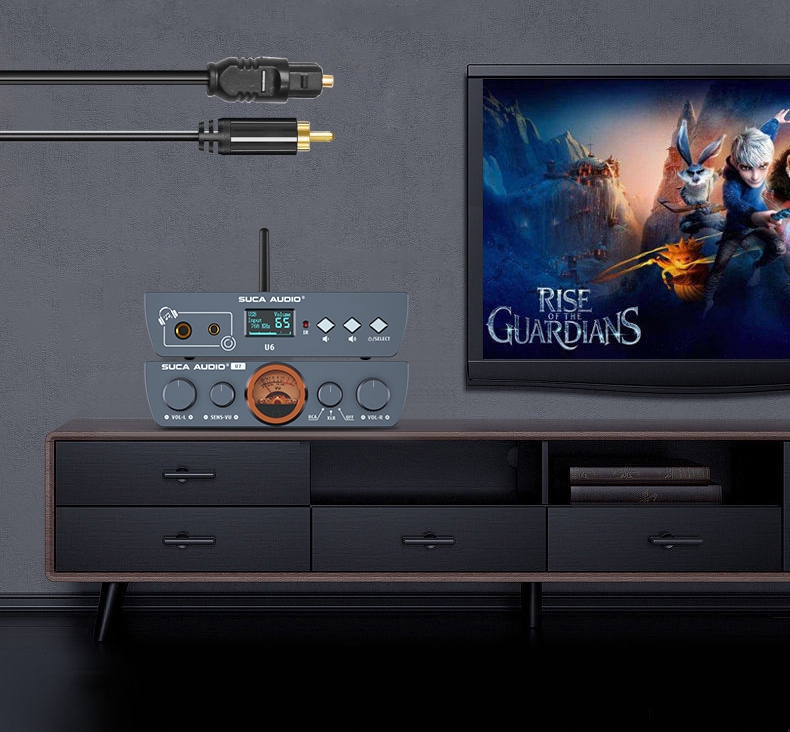

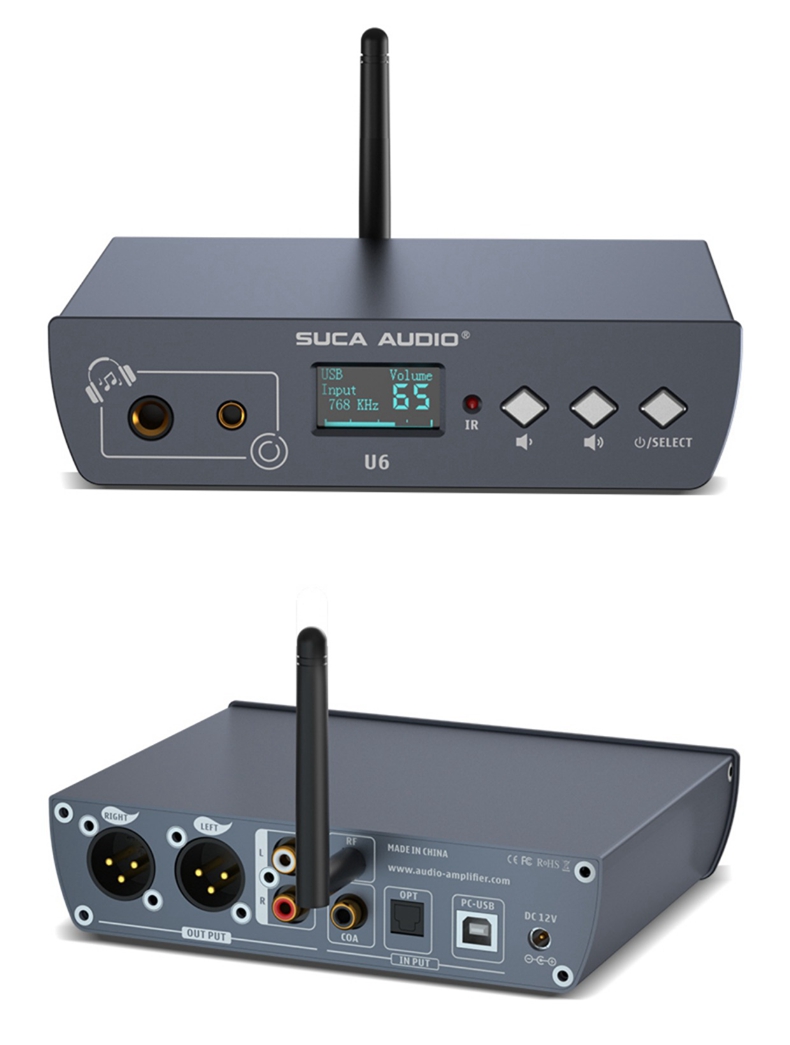

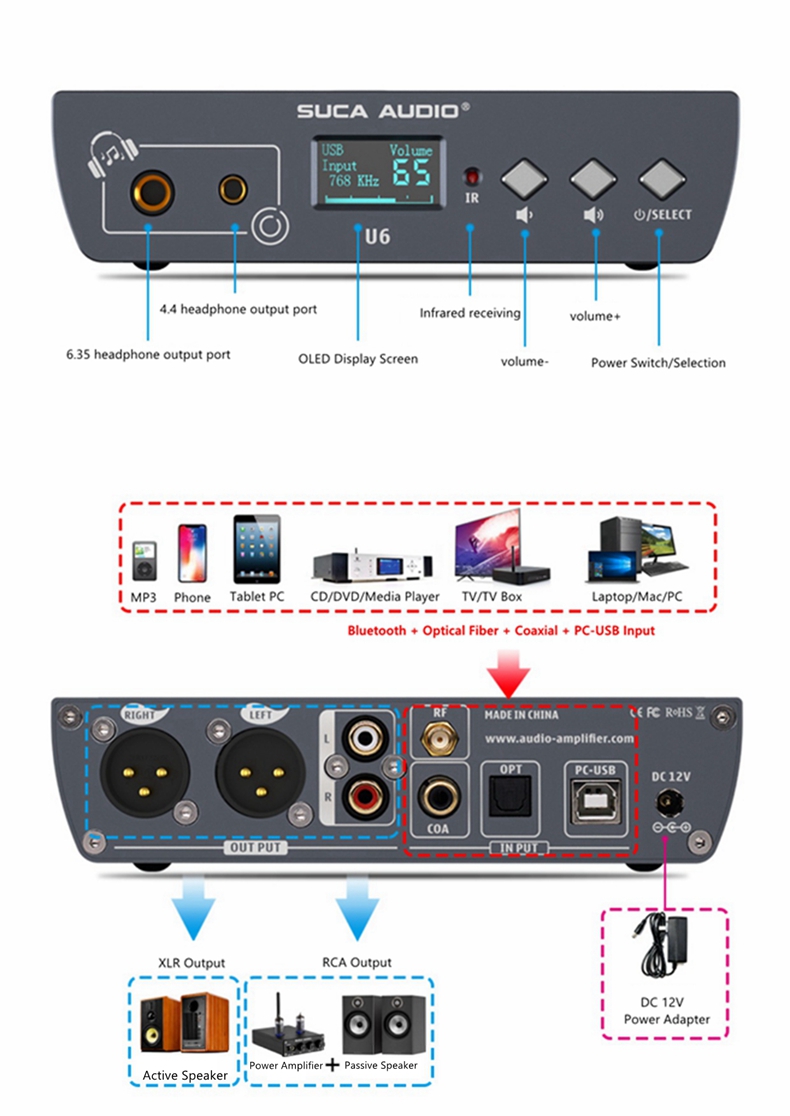

- Support multiple digital audio input
- Aluminum alloy shell

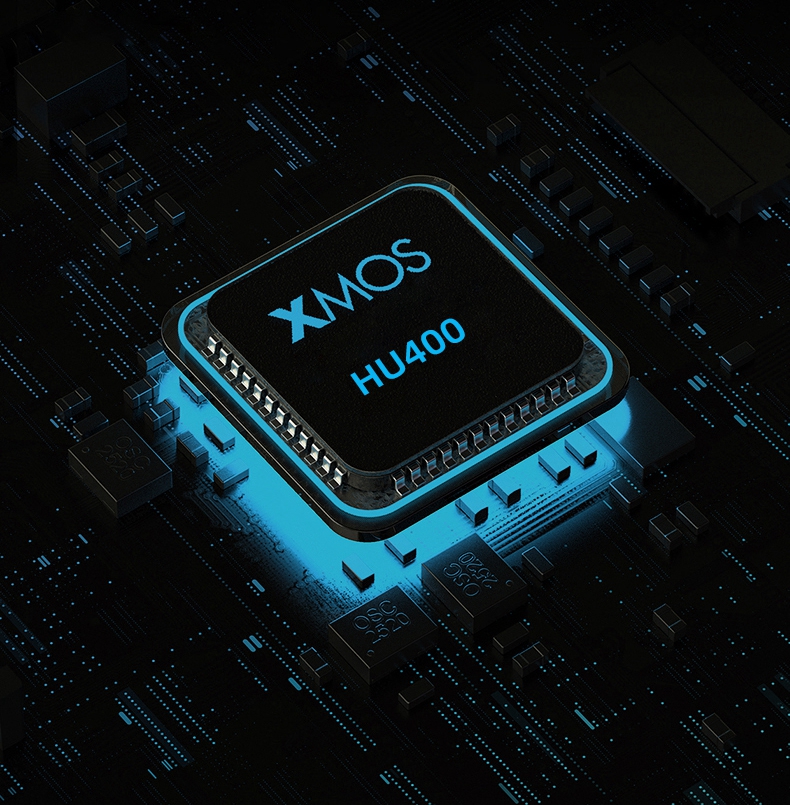

- Equipped with XMOS HU400 USB decoding chip, it supports 768K sampling rate and DSD512 hard decoding, and can handle decoding of higher specifications easily.

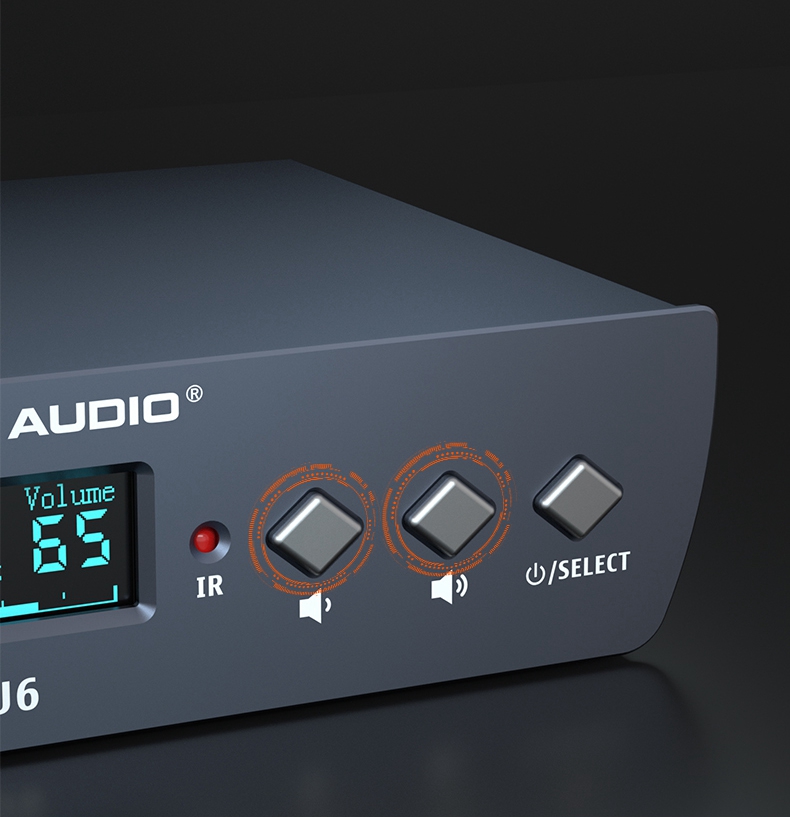

- Independent volume button
Parameter:
- Model: U6
- Bluetooth version: Bluetooth 5.0
- Distortion: ≤0.0003%
- SNR: ≥118dB
- RCA output amplitude: 2.4V

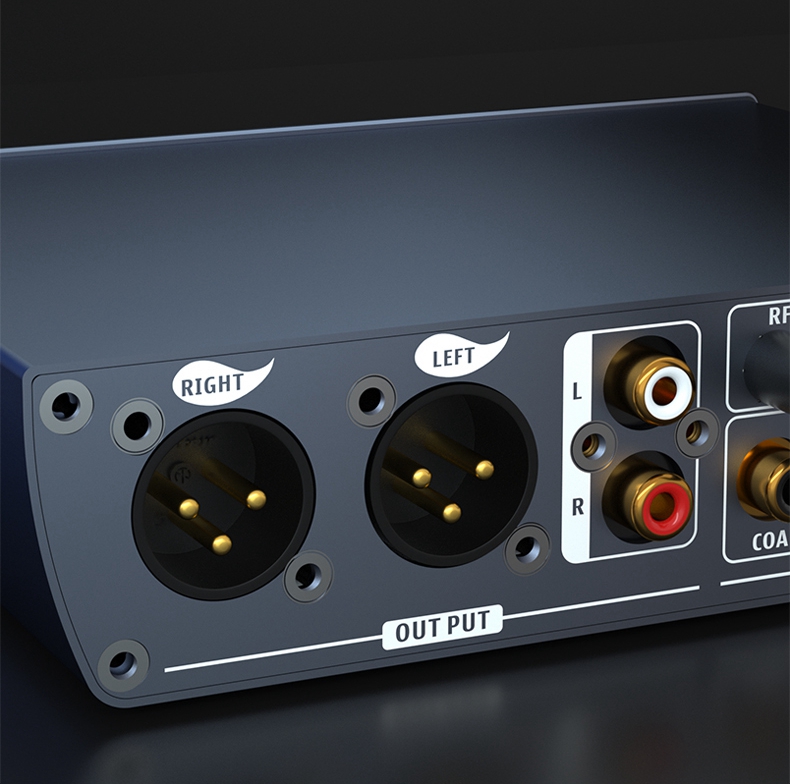

- BAL output amplitude: 4.8V
- Working voltage: DC 12V
- Headphone matched resistance: 16~600ohm
- Headphone output power: 2W 4.4 port
- Headphone output power: 520mW 6.35 port
- PC-USB supported maximum sampling rate: PCM 768KHz/32Bit DSD512
- Coaxial supported maximum sampling rate: PCM 192KHz/24Bit
- Optical fiber supported maximum sampling rate: PCM 192KHz/24Bit
- Frequency response: 10Hz~40KHz (±0.2dB)
- Packaging weight: 1.0kg

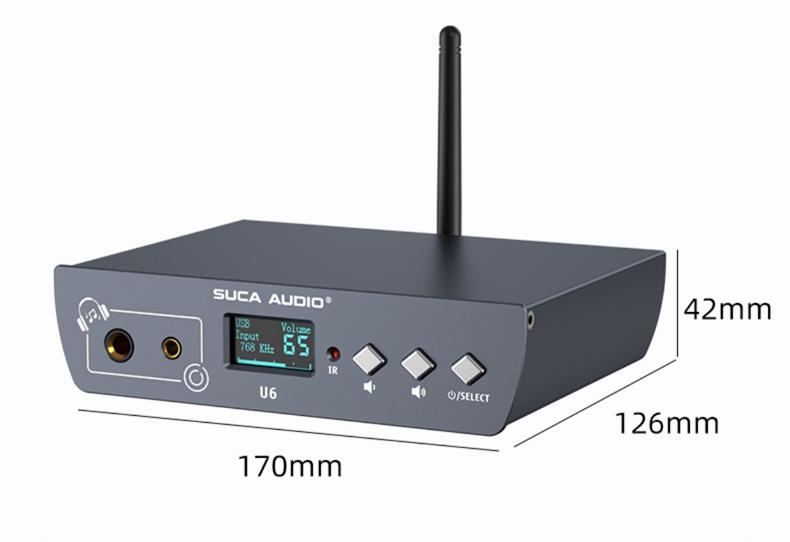

- Size: 170 x 126 x 42mm
- PC-USB supported operation system: W7/W8/W10/MAC/Linux

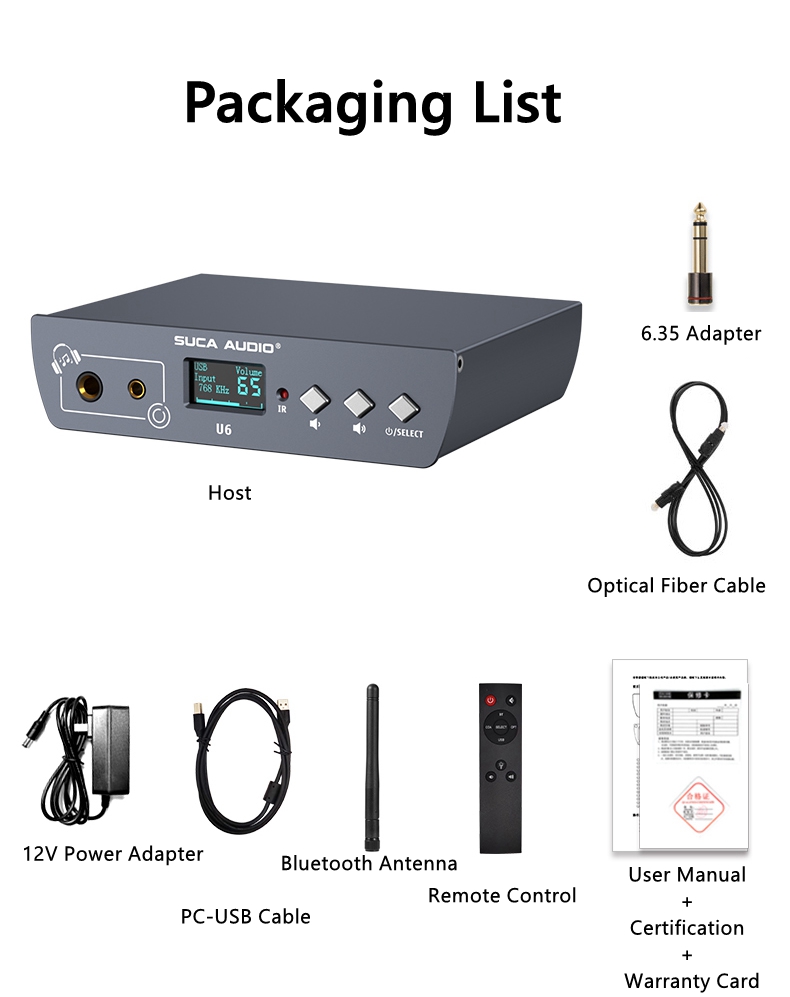

Package Included:
- 1 x Host
- 1 x 12V Power Adapter
- 1 x PC-USB Cable
- 1 x Bluetooth Antenna
- 1 x Remote Control
- 1 x 6.35 Adapter
- 1 x Optical Fiber Cable
- 1 x User Manual
