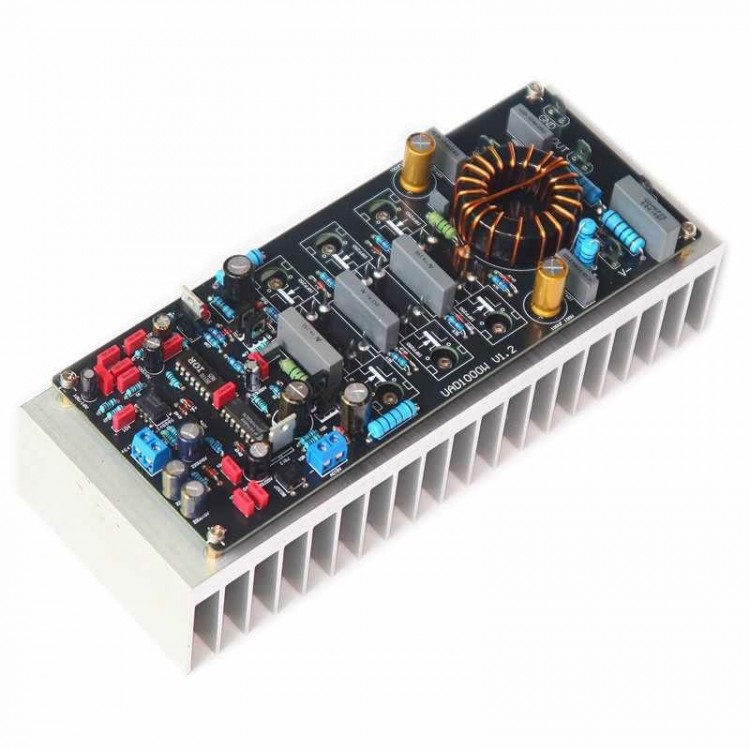

UAD1000W Mono High Power Digital Power Amplifier Board Class D HiFi Amplifier Module with Heat Dissipation Sheet
Description:
- The brand new HiFi design prioritizes optimizing circuit sound, with the IR2110 digital driver as the core to drive 6 high-power outputs for MOS field transistor, ensuring high power output while also having low distortion. The field transistor output sound is closer to analog and is very durable.
- Digital circuits have high energy efficiency and output power, with 6 high-power IRF250 field transistors connected in parallel to achieve a high-power output of 1000W, and the heat is not too high.
- Adopting fully energy-efficient output inductors to ensure high-quality output sound. The combination of mature and reliable circuits and heating components ensures stable high-quality sound performance.
Specification:

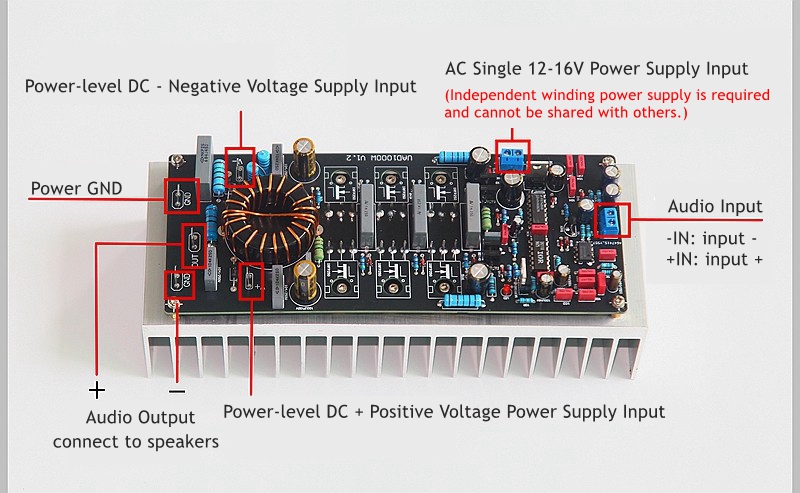

- Power supply voltage: power-level DC dual 40 - 90V (you need to add filtering rectifier board by yourself)
- Driving level: AC single 12 - 16V (use independent winding, cannot be shared with other places)
- Output power: 1000W 8R
- Frequency response: 20Hz - 30kHz
- THD: ≤0.01%
- Amplification: 26X
- Product size: 230 x 88 x 83mm
- Net weight: about 1.2kg
Package Included:
- 1 x Power Amplifier Board
