UB530 USB3.0 Video Box Full HD HDMI SDI PS4 for Game Broadcast Live

UB530 USB3.0 Video Box Full HD HDMI SDI PS4 for Game Broadcast Live

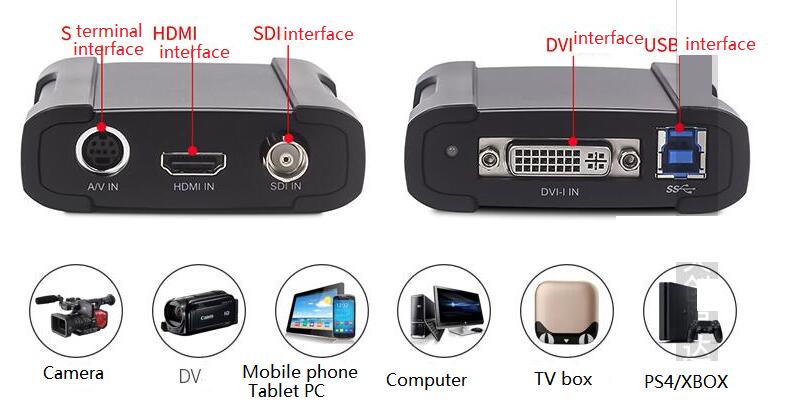

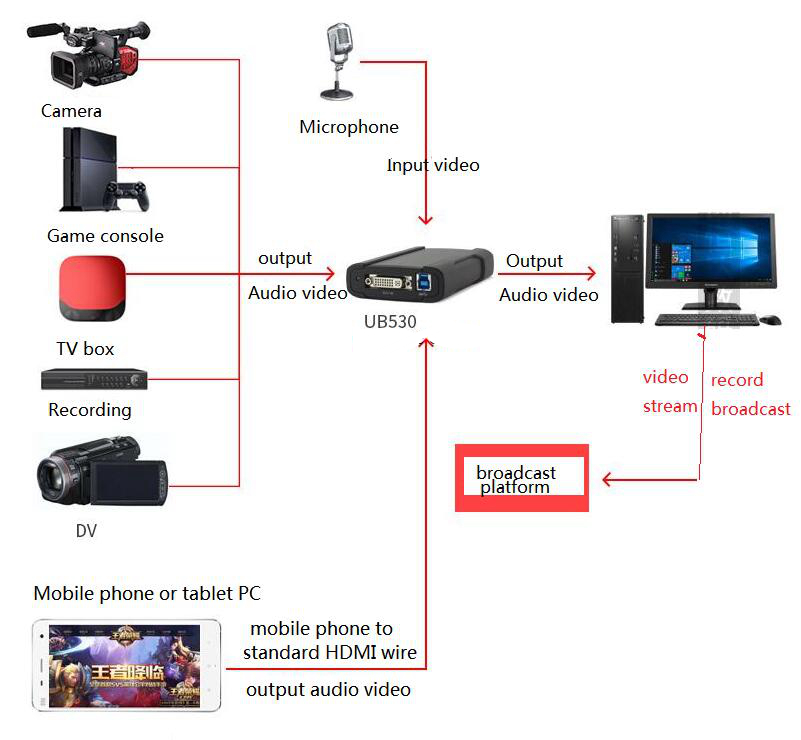

Multiple Devices Connection Mmethod:

Product Description:
- High definition HDMI/SDI interface.USB SDI interface 1pcs,DVI interface 1pcs,HDMI interface 1pcs,S terminal sub-video interface 1pcs.
- DVI interface uses adapter to change to VGA interface,S terminal sub-video interface can change to A/V or component video interface.You can use them to connect - camera/PS4,SLR camera/TV set box/mobile phone/computer to live broadcast.
- Compatible OBS/Taobao,DouYu live broadcast software and platform.
- Compatible audio video acquisition software with DirectShow interface and audio acquisition software with - DirectSound interface.Support DouYu,YY,Youku,Le TV....,ect website live broadcast platform.
- Real-time 1080P@60FPS image/support PS4 game record
- Storage DVD or video tape
- Supply SDK development assistance

Computer configuration requirements:
- CPU:recommend Intel i5 and above
- Memory:1GB and above
- USB:USB3.0 interface
- System:Windows vista/7/8/8.1/10
- Others:Graphics card not limit,main board must has USB3.0 interface.

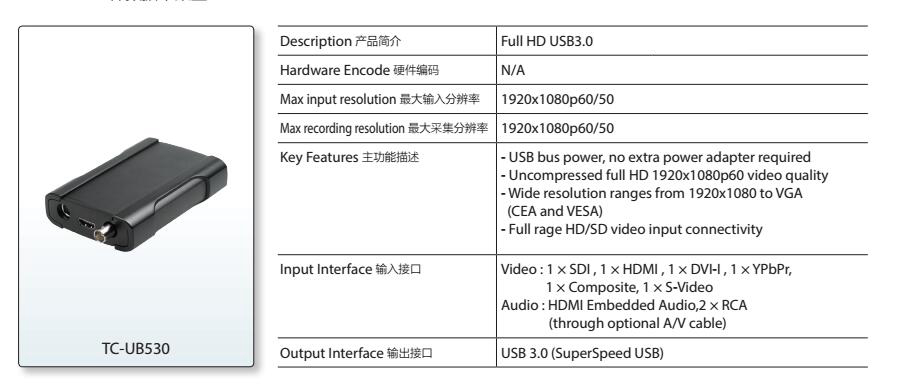

Product Parameter:
- Output interface:USB3.0 interface (output video signal to computer)
- Input interface:SDI/HDMI/DVI (to VGA)/S-Video (to AV or component )
- Support resolution:1920*1080p@60fps and below standard resolution
- HDMI input format:Correspond to the HDMI1.3 specification.Support 36bit DeepColor
- DVI input format:Correspond to the DVI1.0 specification,single connection
- Component input format:480i,576i,480p,576p,720p,1080i,1080p.
- VGA input format:640*400-1920*1080,the pixel must be less than 170MHz
- Output image format:size:160*120-1920*1080;1-60fps;YUY2
- Power consumption:<=15W
- Special service:provide free technology support+1 year quality assurance

Application:commercial business activity broadcast;monitor game live broadcast(PS3/PS4/XBOX);medical surgery;Campus class live broadcast;various high definition video recording broadcast.

Preparation items for broadcast:
- Website:3M above
- Video output device:camera video ouytput function device
- Video device: acquisition card
- Computer:High configuration
- Broadcast platform:Douyu/Le TV/Huya....,ect.

SD function description: Recording;Stream;Playback;Edit;Tool.

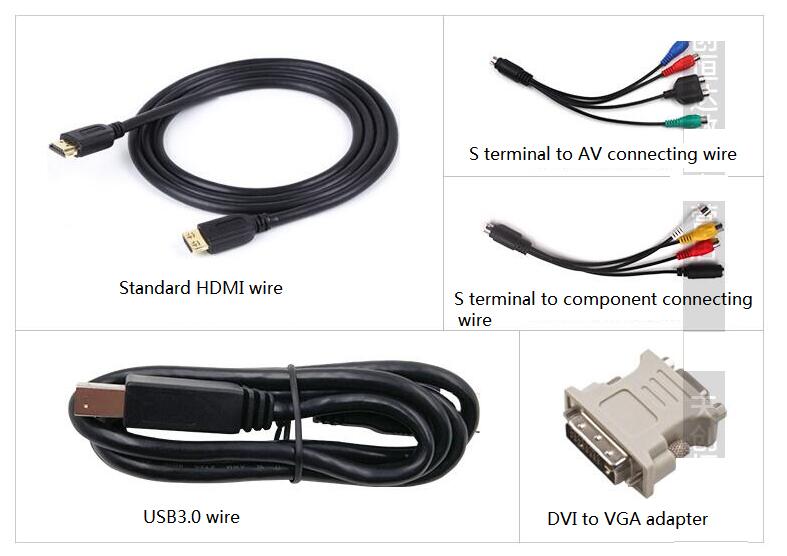

Package List:
- 1 x UB530 Video Card
- 1 x Standard HDMI wire
- 1 x S terminal to AV connecting wire
- 1 x  S terminal to component connecting wire
- 1 x USB3.0 wire
- 1 x DVI to VGA adapter
- 1 x User manual,certificate
