Ublx M8N GPS Module with Compass 6P-1.25 Plug + APM2.8 Flight Controller for DIY RC Drone

Ublx M8N GPS Module with Compass 6P-1.25 Plug + APM2.8 Flight Controller for DIY RC Drone

Description:

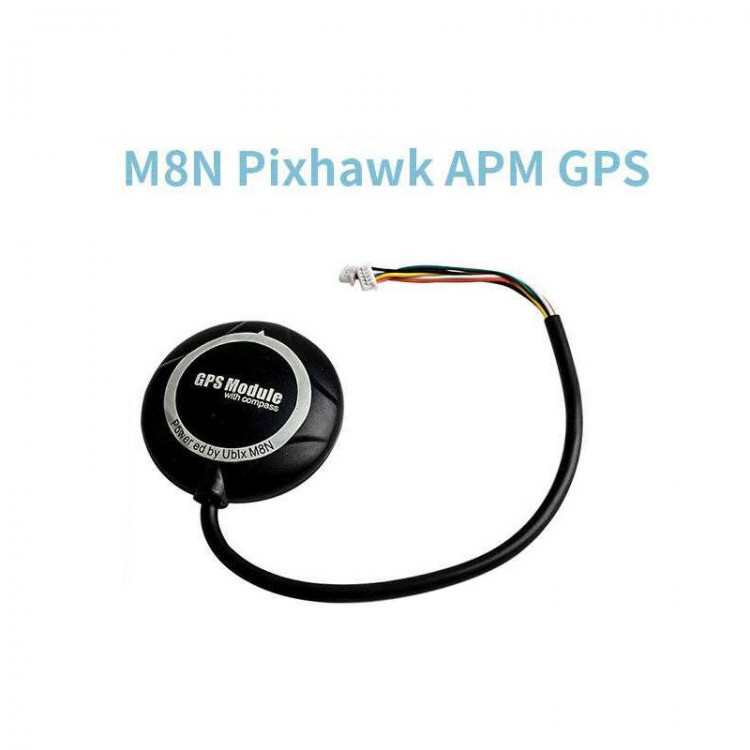

This GPS module has NEO-8 generation chip as the core, onboard EPPROM chip and amplifier circuit, HMC5883l compass chip, directly used for APM2.8 flight control, the outlet terminal is directly compatible with APM serial port and I2C port, plug and play other fly control. For example, MWC can also be used.

GPS has been specifically designed for the external compass application of APM and PIX. You only need to select the external compass in the APM compass calibration, and select Rotation_Roll_180 in the direction option of the external compass.

Receiver Type:
72-channel U-blox M8 engine
GPS L1 C/A, GLONASS L 10F
QZSS L1 C/A, BeiDou B1
Galileo-ready E1B/C (requires external flash)

Acquisition:
Cold start: 26s
Auxiliary start: 2s
Hot start: 1s

Sensitivity:
Track & Navigation: -167dBm
Heavy acquisition: -160dBm
Cold start: -148dBm
Hot start: -156dBm

Max. Navigation Refresh Rate:
Single GNSS, up to 18Hz
Synchronous GNSS, up to 10Hz

Speed Accuracy: 0.1m/s
Heading Accuracy: 0.3°
Horizontal Positioning Accuracy (GPS/SBAS/QZSS+GLONASS with TCXO): 2.0m CEP
Time Pulse Signal Frequency: 0.25Hz-10MHz
Operating Restrictions:
Power: <4g
Height: 50, 000m
Speed: 500m/s

Features:
- M8N GPS Module + APM2.8 Flight Controller Straight Needle
- GPS cord in the length of 25cm
- Comes with a 6P-1.25 plug
- 3m double side adhesive stickers
- Original imported 8th generation module
- With a compass with a dipper
- High Precision: centimeter grade

Package Included:
- 1 x GPS Module
- 1 x APM2.8 Flight Controller Straight Needle
