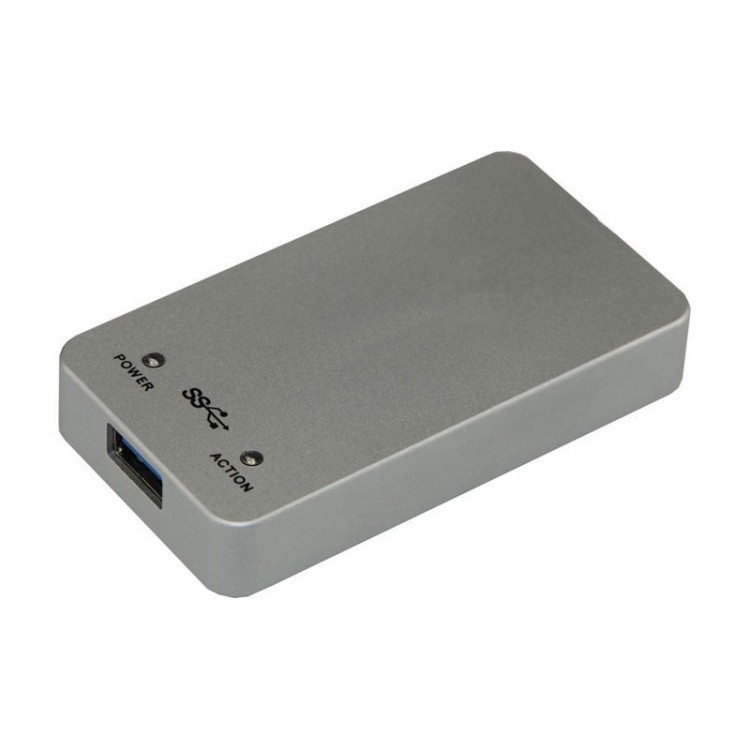

UC3200H USB3.0 HDMI 1080P60 Video Card SDI Video Recording PCI-E Interface

UC3200H USB3.0 HDMI 1080P60 Video Card SDI Video Recording PCI-E Interface

Interface:
- USB:USB3.0,360MB/s(Compatible USB2.0)
- Video input:1xHDMI
- Video output:N/A
- Video:1080P50/60,1080I50/60,720P50/60,576P,576I,480P,480I
- Audio:HDMI built-in

HDMI interface:
- Interface bandwidth:HDMI 1.4a,the max support1080P/60HZ 8-bit,(RGB,YUV)
- Video spercification:HDMI:165MHZ
- Audio specification:UVC
- Color space:UAC
- General:YUY2
- Operating system:Windows 7,8.1,10,Windows Server 2008 R2 32bit,64bit
- Compatible software:Windows Media Encoder,Adobe Flash Media Live Encoder,Real Producer Plus,VLC,Wire cast,AMCAP etc.
- Compatible development tool:DirectShow (Windows),DirectSound (Windows)
- Upgrade:Firmware can upgrade
- Size:46x84x14mm
- Power consumption:<= 3.0W
- Working temperature:0-50 degree
- Storage temperature:-20-70 degree
- Storage humidity:5%-90%
