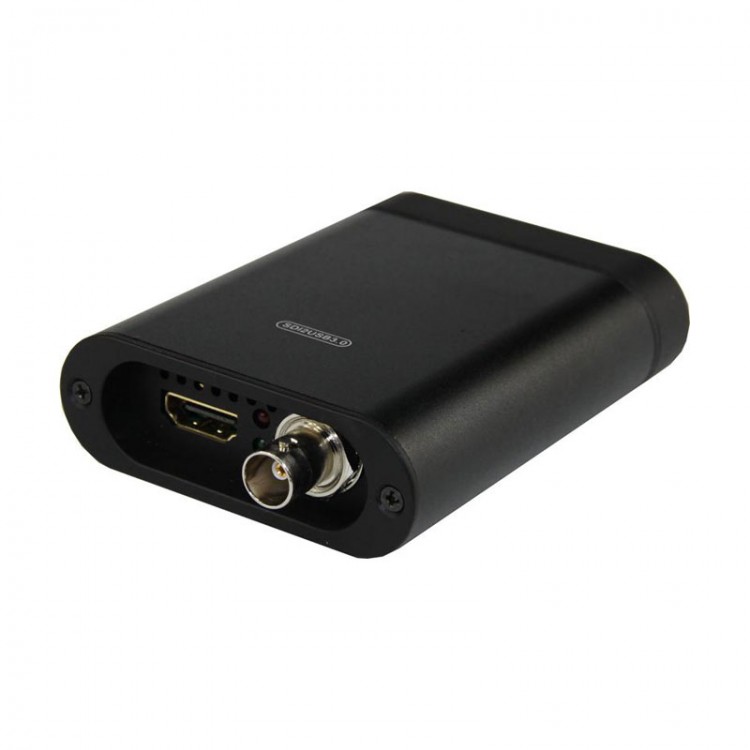

UC3200HS USB3.0 60FPS HDMI Video Card Game Streaming Live Stream Broadcast 1080P

UC3200HS USB3.0 60FPS HDMI Video Card Game Streaming Live Stream Broadcast 1080P

Interface:
- USB:USB3.0,360MB/s(Compatible  USB2.0)

- Video input:1xSDI,1xHDMI

- Video output:1xHDMI loop
- Video:1080P50/60,1080I50/60,720P50/60,576P,576I,480P,480I
- Audio:HDMI/SDI built-in
- HDMI interface:HDMI 1.4a compliance，Support 1080P/60HZ 8-bit,(RGB,YUV),SD/HD/3G-SDI,SMPTE-259/274/296/372/424/425/292 compliance

Parameter:
- Interface bandwidth:HDMI:165MHZ,SDI:1.485Gb/s,2.97Gb/
- Video spercification:UVC
- Audio specification:UAC
- Color space:YUY2

General:
- Operating system:Windows 7,8.1,10,Windows Server 2008 R2 32 bit 64 bit
- Compatible software:Windows Media Encoder,Adobe Flash Media Live Encoder,Real Producer Plus,VLC,Wire cast,AMCAP etc.
- Compatible development tool:DirectShow (Windows),DirectSound (Windows)
- Upgrade:Firmware can upgrade
- Size:70x100x24mm
- Power consumption:<= 3.5 W
- Working temperature:0-50 degree
- Storage temperature:-20-70 degree
- Storage humidity:5%-90%
