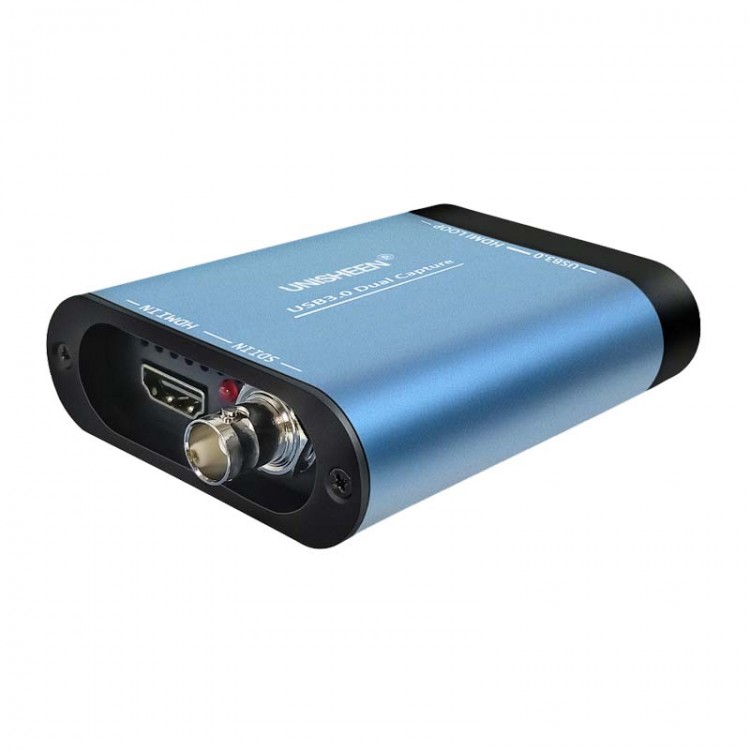

UC3300-HS USB3.0 60FPS HDMI SDI Video Recorder For 1080P Live Streaming OBS VMix Wirecast Xsplit

UC3300-HS USB3.0 60FPS HDMI SDI Video Recorder For 1080P Live Streaming OBS VMix Wirecast Xsplit

Features:
- Two-way dual-interface video card
- No need to install drivers; USB3.0 transmission
- HD 1080P60. High-definition picture quality presents details. Support multiple resolutions, support full HD 1920*1080P live video, enabling you to see every detail. At the same time, it can record video streams with software, and can record video signals output by various equipment, which can be used for conference videos, surgical videos, etc.
- Two-way dual-interface simultaneous acquisition. The SDI/HDMI two-way dual interface can collect two video sources at the same time to achieve the picture-in-picture effect. The maximum output of each channel is 1080P30 when dual-channel acquisition, and the highest output is 1080P60 when single-channel acquisition
- Compatible with various audio and video acquisition software using DirctShow interface and audio acquisition software using DirectSound interface. You can also use third-party software to directly call the acquisition. Support for Zhanqi TV, Douyu, Bilibili, YY.COM, Longzhu, YouTube, VMix, Wirecast, OBS studio, etc.
- Easy to use. Compatible with multiple systems. Support for Windows and Linux operating systems, including for win 7, win 8.1, win 10, win server and Linux
- Widely used. Can be used in the medical industry, live broadcasting, education, security, conferences, games, recording, etc.

Product Parameters:
Interfaces:
- Data channel: USB 3.0
- Input channels: 1 x HDMI 1.4 and 1 x SDI (support two-way collection)
- Output ports: HDMI video looping out (SDI video does not support looping out)
- Video input: 1080P50/60, 1080I50/60, 720P50/60, 576P, 576I, 480P and 480I
- Audio input: HDMI embedded stereo audio; SDI embedded stereo audio

General:
- Operating system: Support for version x86 & x64 Windows 7, 8.1, 10; for Windows Server 2008 R2, Linux 2.6.38 and above
- Compatible software: for Windows Media Encoder, OBS, Xsplit, Vmix, Real Producer Plus, VLC, Wirecast, AMCAP, etc.
- Size: 70 x 100 x 24mm/2.8 x 3.9 x 0.9"
- Net weight: 0.2kg/0.4 lb
- Compatible development tools: DirectShow (for Windows); DirectSound (for Windows) V4L2
- Power consumption: ≤ 3.5W
- Working/storage temperature: 0-50℃
- Storage humidity: 5%-90%

Specifications:
- Input format: HDMI 1.4a compliance; Support 1080P/60Hz 8bit (RGB, YUV); SD/HD/3G-SDI; SMPTE-259/274/296/372/424/425/292 compliance
- Video specifications: UVC (USB video class) compliance
- Audio specifications: UAC (USB audio class) compliance
- Color space: YUV2 (4:2:2) BT.709
- Recording mode: software compression and real-time recording
- Data bandwidth: HDMI: 165MHZ; SDI: 1.485Gb/s, 2.97Gb/s
- Firmware upgrade: The firmware can be upgraded

Attention:
- Due to the limitation of the USB3.0 data channel of the chipset, when 2 channels of signals are collected at the same time, the maximum output of each channel is 1080P30.

Package Included:
- 1 x Video Recorder
- 1 x USB Cable
