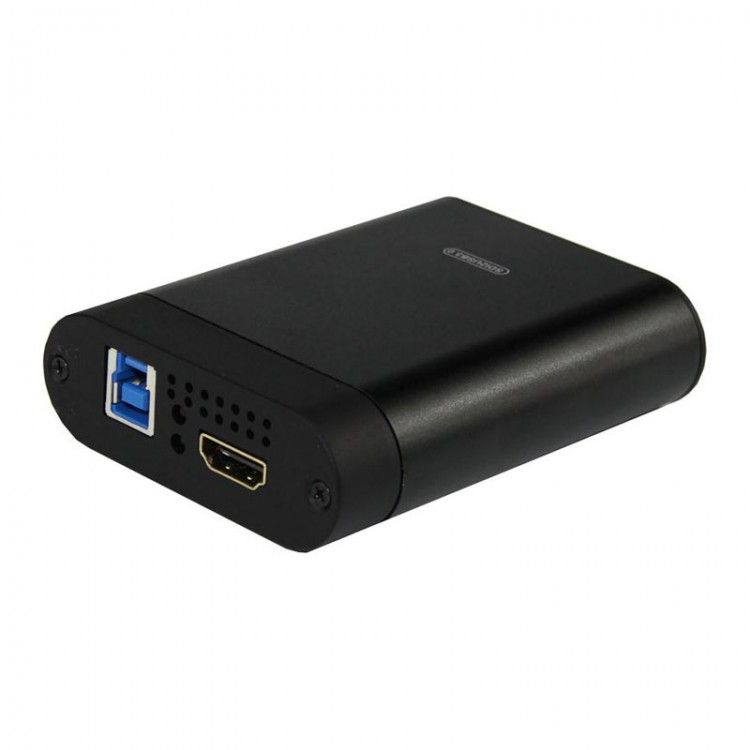

Tags: Video Capture
| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $169.98 | $166.51 | $161.31 | $154.37 | Contact US |
Interface:
- USB:USB3.0,360MB/s (Compatible USB2.0)
- Video input:1xSDI,1xHDMI,1xDVI-I/D,1xVGA,1xYPbPr,1x3.5mm audio
- Video output:N/A
- Video:1080P50/60,1080I50/60,720P50/60,576P,576I,480P,480I
- Audio:HDMI/SDI built-in
Parameter:
- HDMI interface:HDMI 1.4a compliance,Support 1080P/60HZ 8-bit,(RGB,YUV),SD/HD/3G-SDI,SMPTE-259/274/296/372/424/425/292 compliance - Interface bandwidth:HDMI:165MHZ,SDI:1.485Gb/s,2.97Gb/
- Video spercification:UVC
- Audio specification:UAC
- Color space:YUY2
General:
- Operating system:Windows 7,8.1,10,Windows Server 2008 R2 32位 64位
- Compatible software:Windows Media Encoder,Adobe Flash Media Live Encoder,Real Producer Plus,VLC,Wire cast,AMCAP etc.
- Compatible development tool:DirectShow (Windows),DirectSound (Windows)
- Upgrade:Firmware can upgrade
- Size:24x107x81mm
- Power consumption:<= 3.5 W
- Working temperature:0-50 degree
- Storage temperature:-20-70 degree
- Storage humidity:5%-90%
