| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $214.09 | $209.72 | $203.17 | $194.43 | Contact US |
UD951C DSD Audio Decoder Black 5.8G Version with 5.8G Receiver DTS Dolby 5.1 with 3.2inch Color Screen
Features:
- Upgraded 3.2inch Color Screen
- Upgraded USB flash disk to play output from optical fiber/coaxial source code
- Upgraded 2.0/2.1/3.1/4.1/5.1ch and other channels output mode
- Upgraded DSD/ISO and other formats for more powerful playback
- Upgraded disk reading ability of various USB flash drives / card readers
- Upgraded 5.8G wireless surround support
- Upgraded DAC chip ES9023P
- Upgraded headphone jack output
Channels:
- 2.0 channel: front left + front right
- 2.1 channel: front left + front right + bass
- 3.1 channel: front left + front right + center + bass
- 4.1 channel: front left + front right + left surround + right surround + bass
- 5.1 channel: front left + front right + left surround + right surround + center + bass
Parameter:
- Input port: HDMI (x3) + ARC + Coaxial + Optical Fiber + USB Sound Card + AUX + Bluetooth + U Disk etc.
- Output port: HDMI + Optical Fiber + Coaxial + 5.1CH + 3.5mm headphone jack
- HDMI Version: 2.0b version, HDCP2.2, resolution support 4K at 60hz
- U disk play format: iso/dsd/dts-es/dts/ac3/flac/ape/wav/hdcd/aac/m4a/mp3 etc.
- Sampling rate/Bandwidth: DSD support DSD256/1 bit, PCM support 384KHz/32bit
- Audio output amplitude: ≥2Vrms
- Signal-to-noise (SNR): 112db
- Bluetooth version: 5.0 version, transmission above 15m
- USB sound card support system: Support WinXP/Win7/Win8/Win10/Win11
- Output method: Support 5.1CH decoding output and optical fiber/coaxial source code output
- Decoding output ability: Support dts/dolby hard decoding (authentic 5.1) and PCM soft decoding ( fictitious 5.1)
- Operation control: Support knob and remote control
- Output channel: Support 2.0/2.1/3.1/4.1/5.1CH
- Volume adjustment: Support Overall volume adjustment and mono volume adjustment
- LCD Display: Support 3.2inch color screen display and backlight switch
- 5.8G wireless surround: Support 5.8G wireless module expansion (only 5.8G version)
- Power supply: DC12V/1A
- Size: 218 x 110 x 78mm
- Weight: 1.1kg
- Packaging weight: 1.3kg

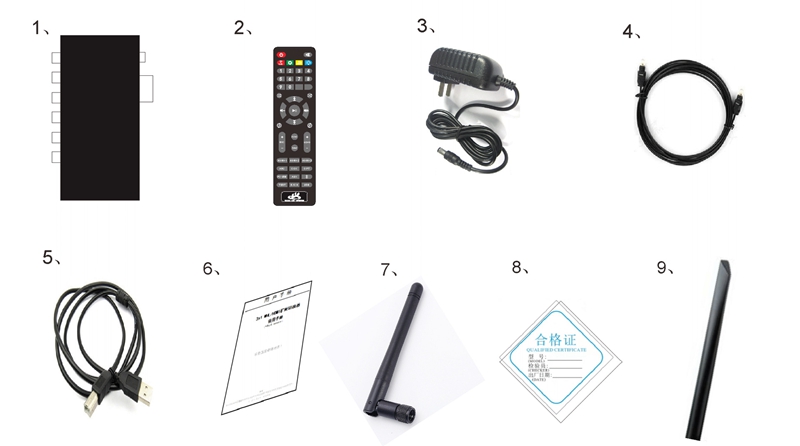

Package Included:
- 1 x Host
- 1 x DC12V/1A Power Adapter
- 1 x USB Sound Card
- 1 x Remote Control
- 1 x Digital Optical Fiber Cable
- 1 x Bluetooth Antenna
- 1 x 5.8G Antenna
- 1 x 5.8G Receiver
- 1 x User Manual
- 1 x Certification
