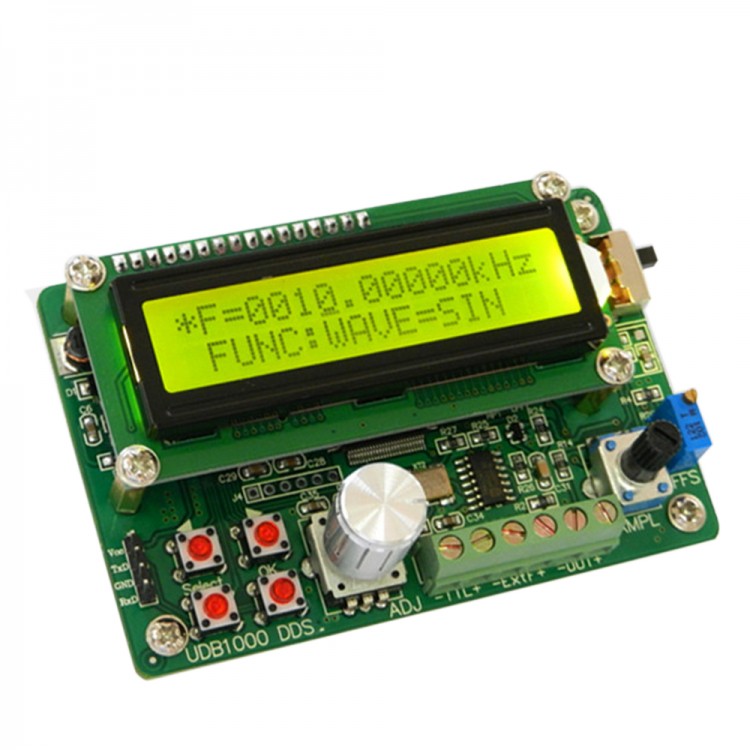

UDB1005S UDB1000 Series DDS Signal Source Module Signal Generator Module with 60MHz Frequency Counter

UDB1005S UDB1000 Series DDS Signal Source Module Signal Generator Module with 60MHz Frequency Counter

Description :
UDB100x series is based on direct digital synthesis (DDS) technology signal generator, using FPGA design, easy to use, high signal stability, but also has TTL output and external frequency measurement function, able to adjust the amplitude of the output signal and DC bias, suitable for laboratory, engineering and technical personnel as well as enthusiasts.

Parameters:
Signal output
- Output waveform Sine wave, square wave (variable duty cycle), triangle wave, sawtooth wave.
- Output amplitude ≥ 9Vp-p (no load)
- Output Impedance: 50Ω ± 10%
- ± 2.5V DC bias
-  Display LCD1602
- Frequency Range:
  0.01Hz ~ 2MHz (UDB1002S)
  0.01Hz ~ 5MHz (UDB1005S)
  0.01Hz ~ 8MHz (UDB1008S)
- Frequency Resolution 0.01Hz (10mHz)
- Frequency stability ± 1 × 10-6
- Frequency Accuracy ± 5 × 10-6
- Sine wave distortion ≤ 0.8% (reference frequency is 1kHz)
- Triangle wave linearity ≥ 98% (0.01Hz ~ 10kHz)
- Square wave rise and fall time ≤ 100ns
- Square Wave Duty range 1% to 99%

TTL output:
- Frequency Range:
  0.01Hz ~ 2MHz (UDB1002)
  0.01Hz ~ 3MHz (UDB1003)
  0.01Hz ~ 5MHz (UDB1005)
- Amplitude> 3Vp-p
- Fanout factor> 20 TTL loads

COUNTER counter function:
- Counting range 0-4294967295
- Measurement frequency range 1Hz ~ 60MHz
- Input amplitude 0.5Vp-p ~ 20Vp-p

SWEEP scan function (only UDB100xS Series)
- Sweep range fM1 to fM2
- Input amplitude 0.5Vp-p ~ 20Vp-p

Other features:
- Storage and transferred M0-M9 (M0: Default transferred)
- Size: 95x62x32mm
- Weight: 85g

Package Included:
- 1 x DDS signal generator
