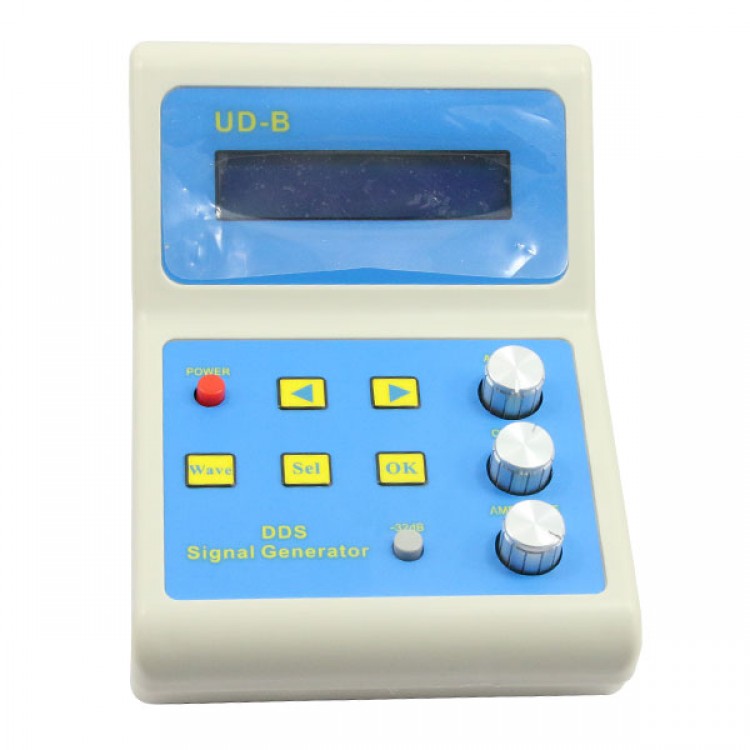

UDB1108 8MHz DDS Function Signal Generator Source W/ Power Supply Charger

UDB1108 8MHz DDS Function Signal Generator Source W/ Power Supply Charger

Introduction:
100% Brand New And High Quality
1.This is a full DDS signal source, the use of DC5V power supply can output sine wave, square wave (1% -99% duty cycle can be adjusted), triangle, and sawtooth waveforms and other functions, the maximum output of up to 10Vpp, frequency from 0.01Hz-2MHz (also optional 3MHz, 5MHz), a resolution of 10mHz, both TTL sync output and 60MHz frequency counter with three kinds of functions in one.
2.UDB1100 series is the original SG1000 series of upgrades to increase the beautiful plastic case, upgrade to the BNC input connector output interface, while increasing the output attenuation switch (-32dB, about 40 times), making this instrument a minimum capacity of 10mV output signal about
3.It’s the ideal equipment of electronic engineer, laboratory, production lines, the teaching and scientific research.

Features:
1.High frequency resolution: 0.01Hz
2.High frequency accuracy: ± 20ppm
3.Low distortion: <1%
4.Square wave duty cycle of 1% to 99% accuracy adjustable
5.Triangular modulation account space than the output of two kinds of sawtooth after
6.variable DC level control
7.External Frequency Measurement
8.Preset frequency stored, transferred functions
9.Interface: Function of signal output (main output) ,TTL output ,external count input

Specifications:
- The main output waveform : sine wave and square-wave, triangle wave, sawtooth wave
- Maximum output amplitude: 10Vpp (no-load)
- Output impedance :50 ω + 10%
- Dc bias: + 5V (no-load)
- Range: 1% - 99% (square-wave)
- Display: LCD1602
- Output frequency range:
- sine wave: 0.01Hz-5MHz
- Square-wave: 0.01 Hz - 1MHz (the valid range)
- Triangle wave :0.01 Hz - 1MHz (the valid range)
- Sawtooth wave :0.01 Hz ~ 1MHz (the valid range)
- Resolution :0.01 Hz
- Frequency stability: + 1 x 10-6
- Frequency error :+ 5 x 10-6
- Sine wave distortion degree: < 1% (benchmark frequency 1kHz)
- Triangle wave linearity : 0.01 Hz ~ 100 KHZ 98%; 95%, 100 KHZ ~ 1MHz;
- Square-wave rising and falling time: < 30ns
- TTL output : TTL level: Vp - p. 3 p ,Take 20TTL load load capacity
- The external measurement functions:
- Frequency range: 60MHz 1Hz
- Vpp - signal amplitude: 0.5 20Vpp
- The count range: 0-4294967296
- Storage and append the: has a 10 groups with v function parameters storage

Package includes:
- 1 x 8MHz DDS UDB1108
- 1 x charger
