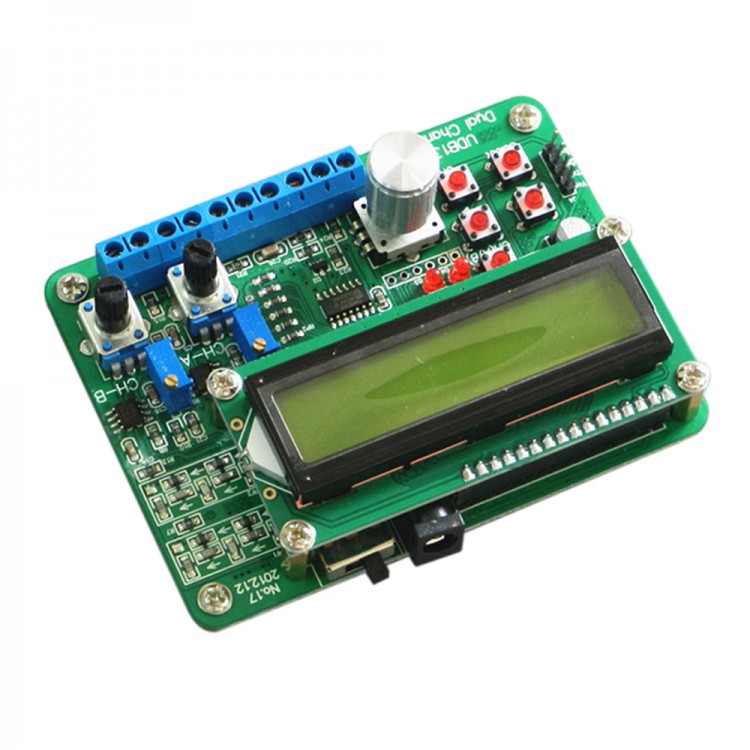

UDB1300 Series UDB1308S Dual DDS Signal Source Double TTL Generator Frequency Sweep 60 MHZ Frequency Meter

UDB1300 Series UDB1308S Dual DDS Signal Source Double TTL Generator Frequency Sweep 60 MHZ Frequency Meter

Description:
UDB130xS series double channels DDS signal source is added dual channel output function. A,B output, the phrase difference o-359 (adjustable), square wave proporation 0.1%-99.9% (adjustable).

Frequency:
-  Model: UDB1302S:
   Sine wave output frequency : 0.001Hz-2MHz
   Square wave output frequency : 0.001Hz-1MHz
   Triangle wave output frequency : 0.001Hz-1MHz
   Frequency meter measuring frequency: 0-60MHZ

- Model: UDB1305S
   Sine wave output frequency : 0.001Hz-5MHz
   Square wave output frequency : 0.001Hz-1MHz
   Triangle wave output frequency : 0.001Hz-1MHz
   Frequency meter measuring frequency: 0-60MHZ

- Model: UDB1308S
   Sine wave output frequency : 0.001Hz-8MHz
   Square wave output frequency : 0.001Hz-1MHz
   Triangle wave output frequency : 0.001Hz-1MHz
   Frequency meter measuring frequency: 0-60MHZ

Parameters:
- Main Output waveform Sine wave , square wave , triangle wave , sawtooth
- Maximum output amplitude: >= 9Vp-p ( no load )
 - Digital output amplitude control range : 0-255
- Output Impedance: 50Ω ± 10%
- Resolution: 0.001Hz
- Frequency stability: ± 1 × 0.000001
- Frequency error ± 5 ×  0.000001
- Sine Wave Distortion: < 0.8% ( reference frequency 1kHz)
- Triangle wave linearity: ≥ 98%, (0.001Hz-10kHz)
- Square wave rise and fall times <100ns
- Frequency of 2 channels TTL:
  0.001Hz-2MHz(UDB1302S)
  0.001Hz-5MHz(UDB1305S)
  0.001Hz-8MHz(UDB1308S)
- Outside the counting range :0 -4294967295
- Amplitude: 3Vp-p
- Number of storage and transfer: 10
- Position: M0-M9
- Weight: 96g
- Size: 100x75x36 (mm)

Package Included:
- 1 x UDB1300 Series UDB1308S Dual DDS Signal Source
