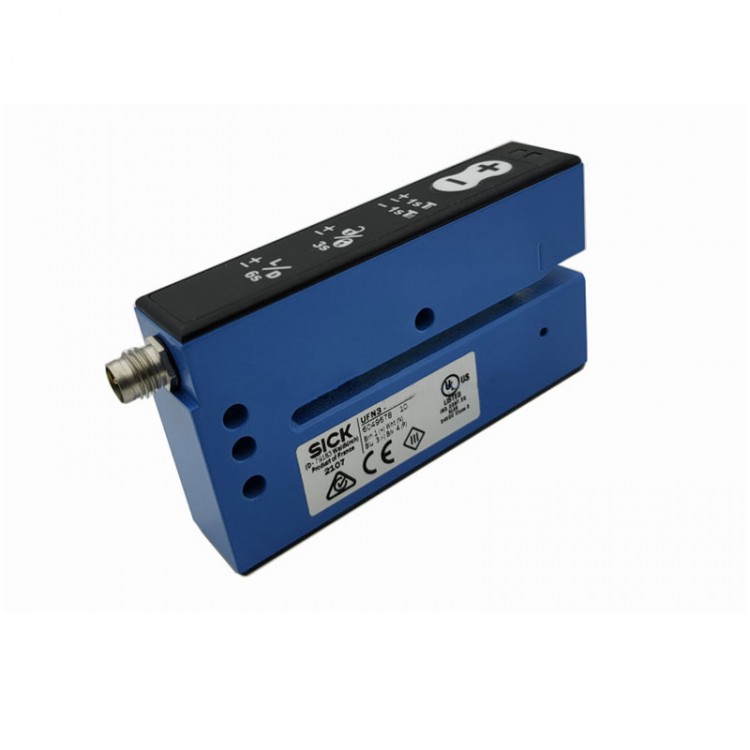

UFN3-70B413 Fork Sensor 6049678 Original Ultrasonic Fork Sensor for SICK

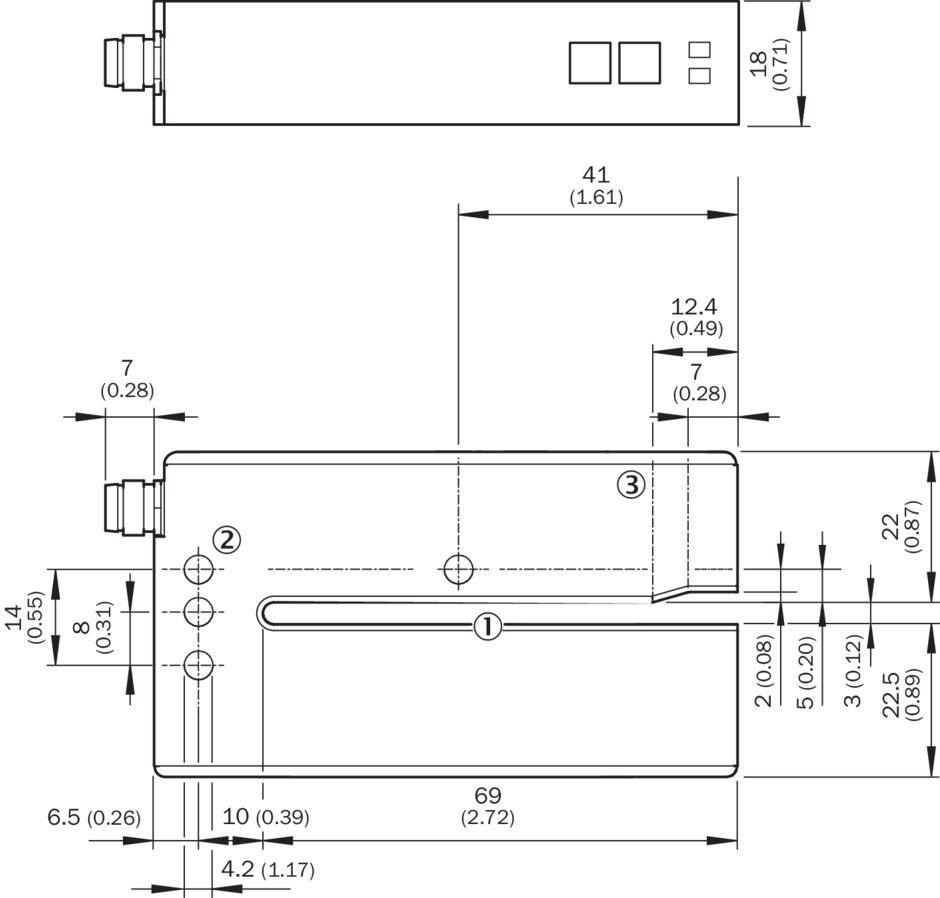

Dimensional drawing UFnext - Plus/minus buttons
Dimensions in mm (inch)
① Fork opening: fork width 3 mm, forks depth 69 mm
② Mounting hole, diameter 4.2 mm
③ Detection axis

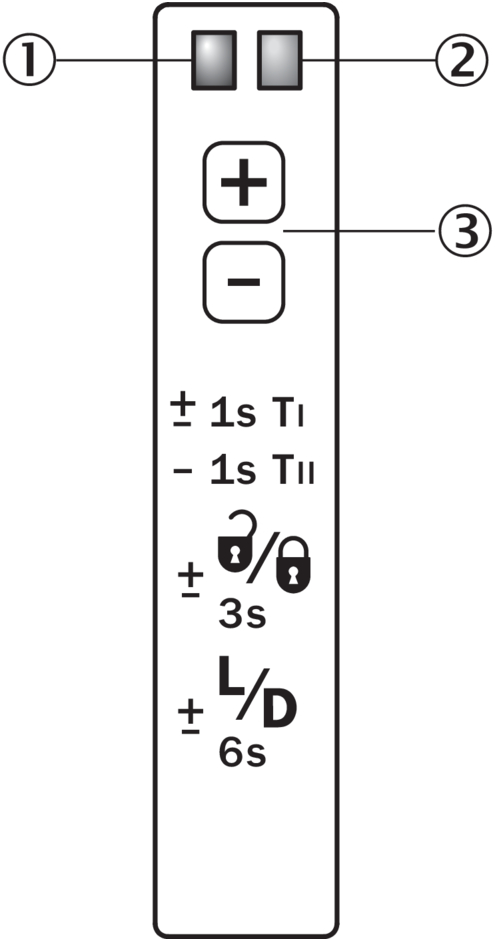

Adjustments Adjustment: teach-in via plus/minus buttons (WFxx-B416)
① Function signal indicator (yellow), switching output
② Function indicator (red)
③ "+"/"–" buttons and function button

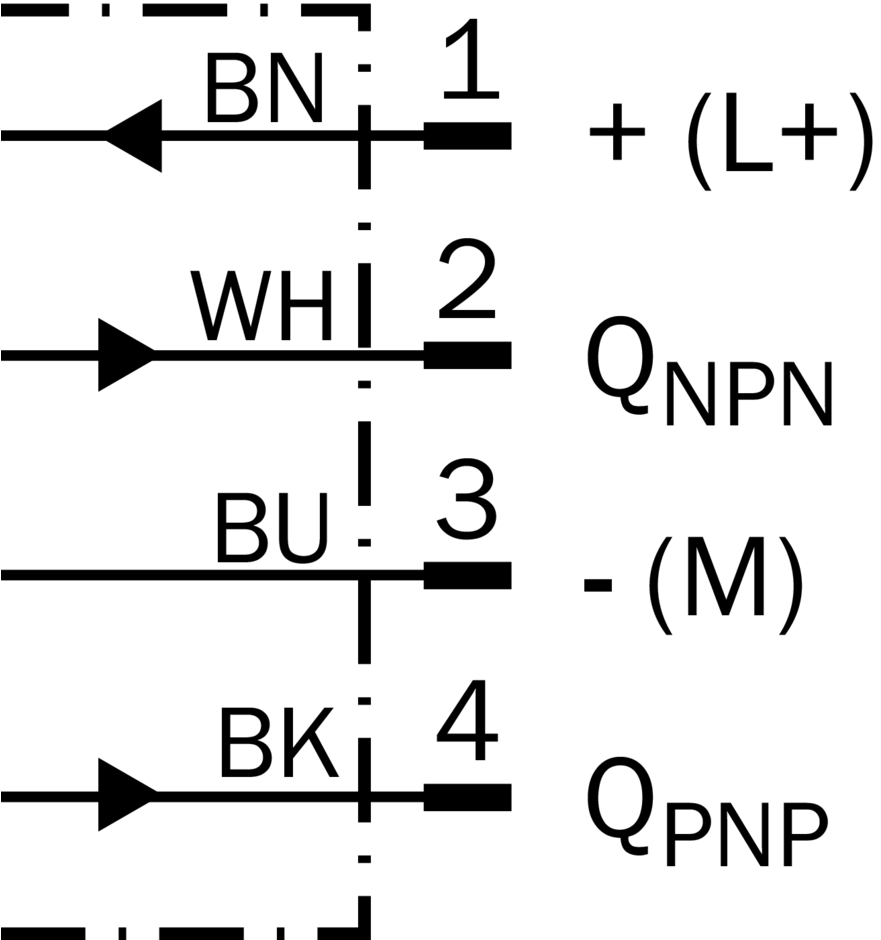

Connection diagram Cd-086
Concept of operation Teach-in dynamic via plus/minus buttons
Package Included:
- 1 x Fork Sensor
