Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $187.30 | $183.48 | $177.74 | $170.10 | Contact US |

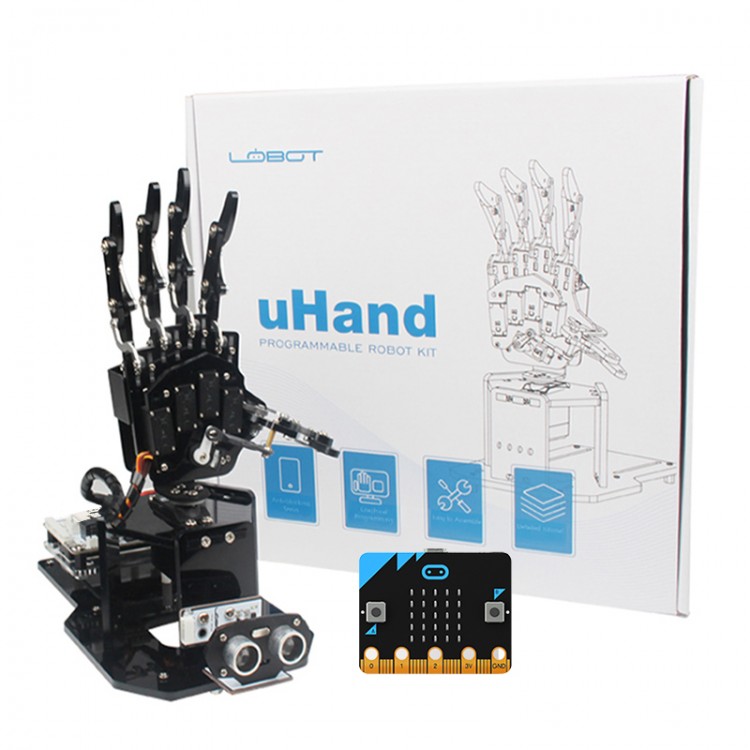

uHandbit Open Source Robotic Hand Unfinished 180° Swivel Base APP Control w/ Micro: bit Main Board
Features:
- Programmable Robot Hand: uHandbit is a smart robot hand based on micro: bit programming
- 34 Video Tutorials: It contains micro:bit basic tutorials, micro: bit expansion tutorials and game tutorials.
- 10 Creative Games: It enables users to acquire all-around programming knowledge. For most games, just download examples. For small parts, users need to modify to meet their needs.
- Powerful micro: bit Expansion Board: Designed with RGB colorful lights, sound sensor, buzzer and other electronic components, it is plug-to-play. It is also built with sensor expansion ports, motor output ports and servo ports.
- 6 Expansion Ports: They support all LOBOT sensors. The expansion board with 4 holes fits for Lego blocks.

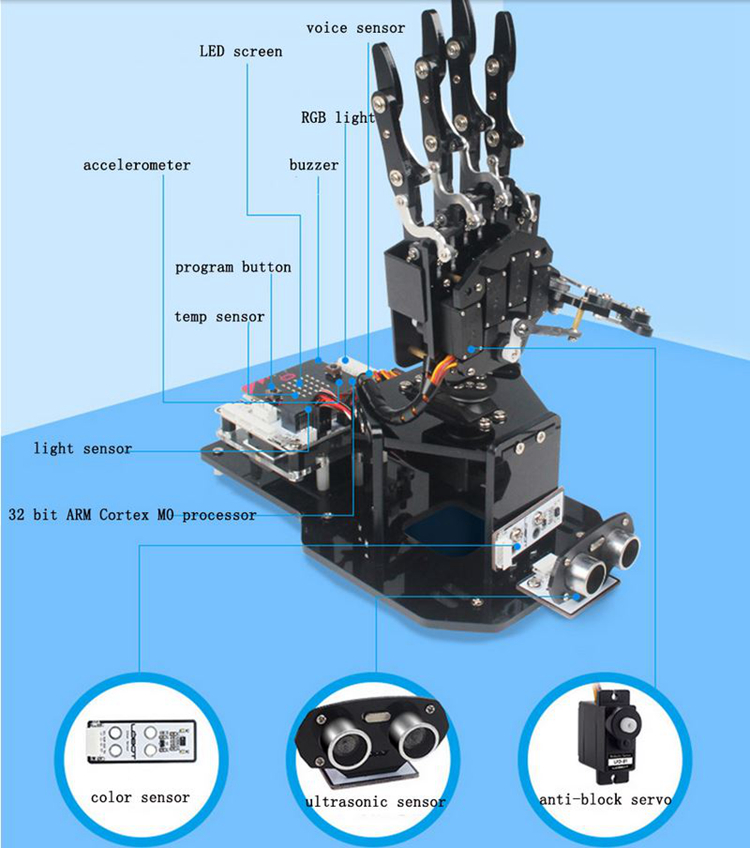

- Abundant Sensors: With multiple electronic sensor modules, it can detect distances, count numbers, classify colors.

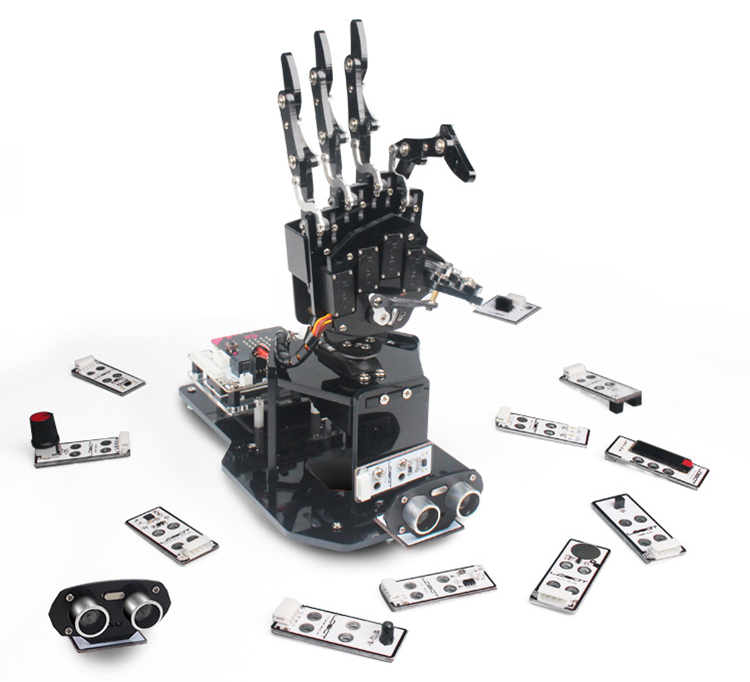

- For All LOBOT Sensors: It is compatible with LOBOT robotic sensors, including photosensitive sensor, sound sensor, color sensor, acceleration gyroscope sensor, obstacle avoidance, OLED screen, infrared receiver, ultrasonic, touch, tracing, RGB lights, temperature, knobs, fans and water temperature sensors.
- Anti-stall Servo: Anti-blocking servo avoids burning caused by blocking and prolongs it life span.

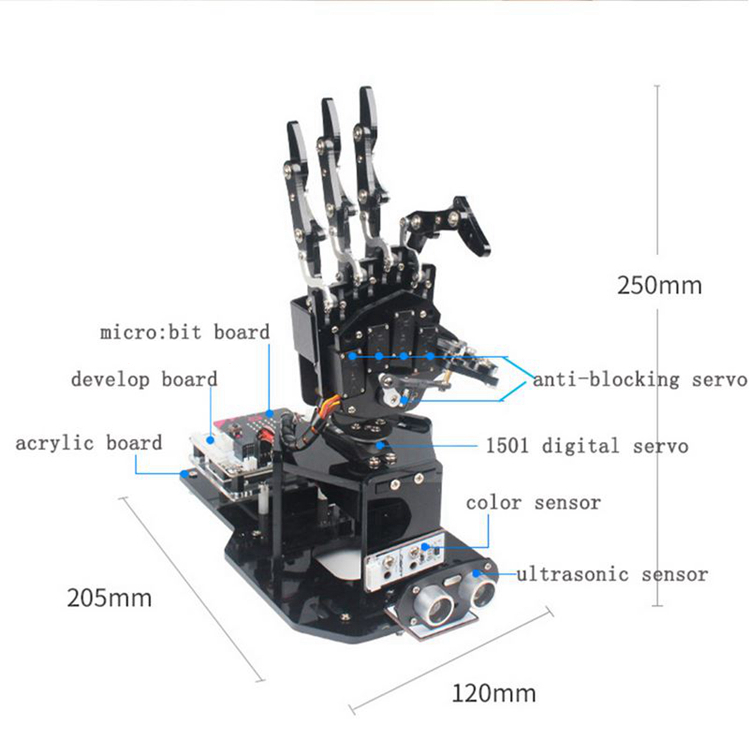

- Rotatable Base: The base with digital servo is 180° swivel.

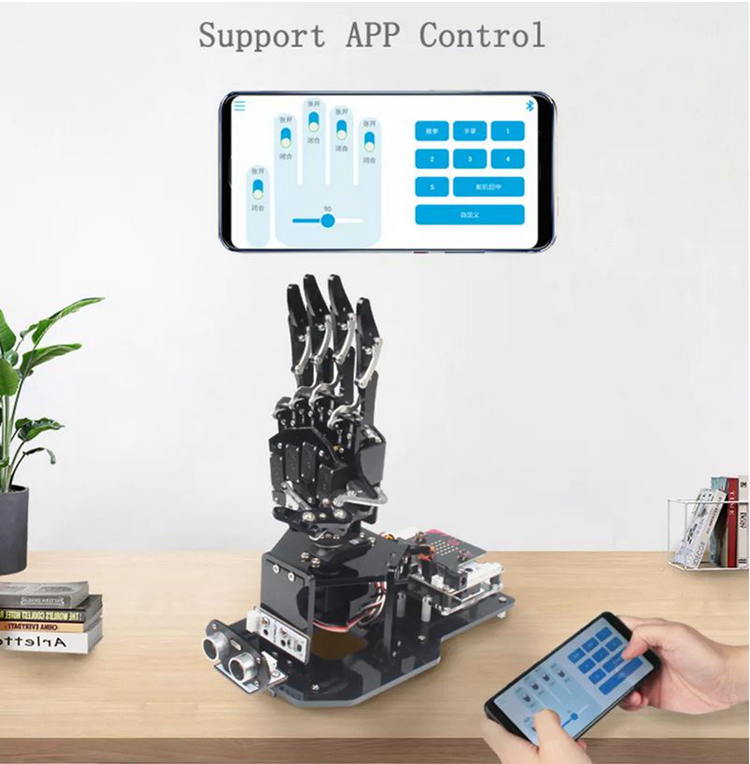

- APP Control: It fits for Android. Pressing the buttons or dragging the sliding bars on the APP, it is easy to control the actions of uHandbit hand.

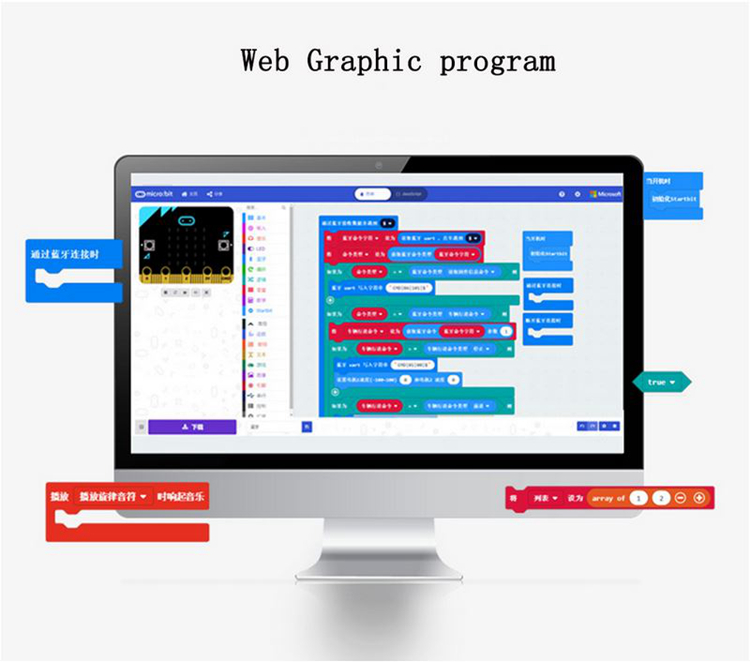

- Web graphic programming.
- Support Handlebit joystick control (Handlebit is not included).
- Safe to use with a power adapter.
Parameters:
- Programming Software: micro:bit (graphic programming / JavaScript). Link: http://makecode.microbit.org
- Input: Sound sensor, ultrasonic sensor, color sensor, brightness sensor, acceleration sensor, electronic compass and temperature sensor
- Output: Buzzer, RGB colorful light, ports for 2 motors, ports for 6 servos and LED dot matrix
- Communications Interface: USB & Bluetooth
- Controller: micro:bit
- Power Supply: 6V 5A Power Adapter
- Product Weight: 560g
Package Included:
- 1 x uHand2.0 Robot Hand
- 1 x Acrylic Bracket Kit
- 1 x 6V 5A Power Adapter
- 1 x Servo for Base
- 1 x Palm Cover Sheet Metal
- 1 x Clear Acrylic Bracket for Expansion Board
- 1 x Screwdriver
- 1 x Microbit Main Board
- 1 x Microbit Expansion Board
- 1 x Ultrasonic Sensor
- 1 x Ultrasonic Sensor Adapter Module
- 1 x Color Sensor
- 2 x 4PIN Cable s
- 1 x Data Cable
- Several Winding Tubes & Ribbons
Note:
- Battery is not included in this package.
- uHandbit is a smart robot hand based on micro: bit programming.
- It is unfinished. Self assembling is needed, providing assembly tutorials.
- Designed with anti-stall servo, it works perfectly and lasts for long.
- 10 games and 34 video tutorials are used for programming education and artificial intelligent teachings.
