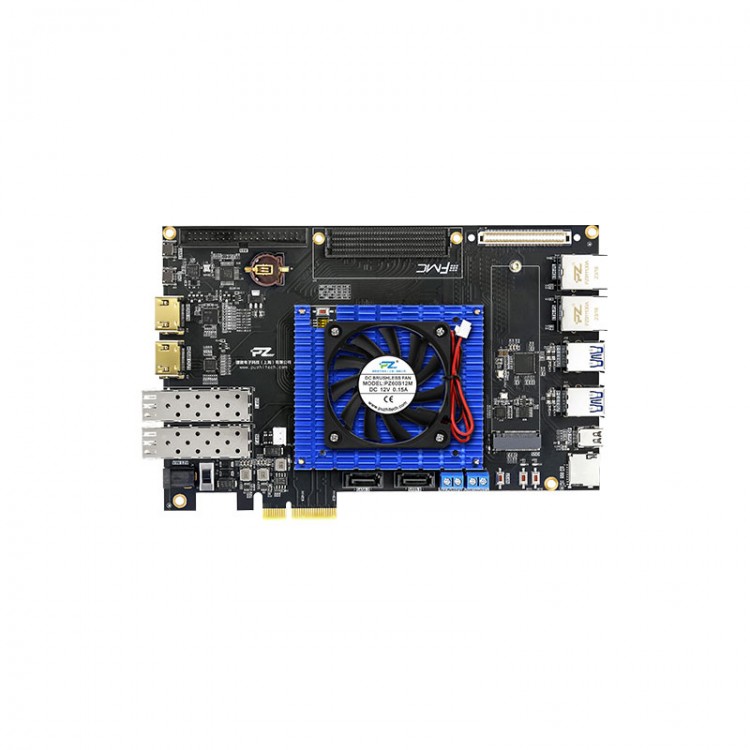

UltraScale+ Development Board Integrated JTAG Downloader 4K HDMI-compatible Input and Output for Xilinx ZYNQ

UltraScale+ Development Board Integrated JTAG Downloader 4K HDMI-compatible Input and Output for Xilinx ZYNQ

Specification:
- Model: ZU7EV-KFB
- Main controller: XCZU7EV-2FFVC1156I
- Processor:
  ARM: for Cortex-A53 (1.3GHz) x 4
  RPU: for Cortex-R5 (533MHz) x 2
  CPU: for Mali-400MP2 (667MHz)
- Speed level: 2-level
- Temperature level: industrial level (-40℃ ~ +85℃)
- Logic cells: 504K
- LUTs: 230000
- Flip-Flops: 461000
- DSP Slices: 1728
- BLOCK RAM: 11Mb
- DDR4/DDR4L: 4GB for PS side; 4GB for PL side
- QSPI FLASH: 256Mb + 256Mb, faster double FLASH start
- EMMC: 8GB, store startup files and user files
- Start method: JTAG/QSPI/SD/EMMC, default SD start
- User LED: 3-channel
- PS side GTR: 4 pair of TX/RX
- PL side GTH: 20 pair of TX/RX
- Expansion IO number:
  MIO: 38 IOs (fixed 1.8V level)
  HP: 144 IOs (1.2/1.8V adjustable, default 1.8V)
  HD: 48 IOs (1.8/2.5/3.3V adjustable, default 3.3V)
- Crystal oscillator: one differential single ended 33.3333MHz crystal oscillator is provided to PS, one differential 200MHz crystal oscillator is provided to PL, and one differential 125MHz crystal oscillator is provided to the reference clock of GT transceiver.
- Core board size: 85 x 75mm

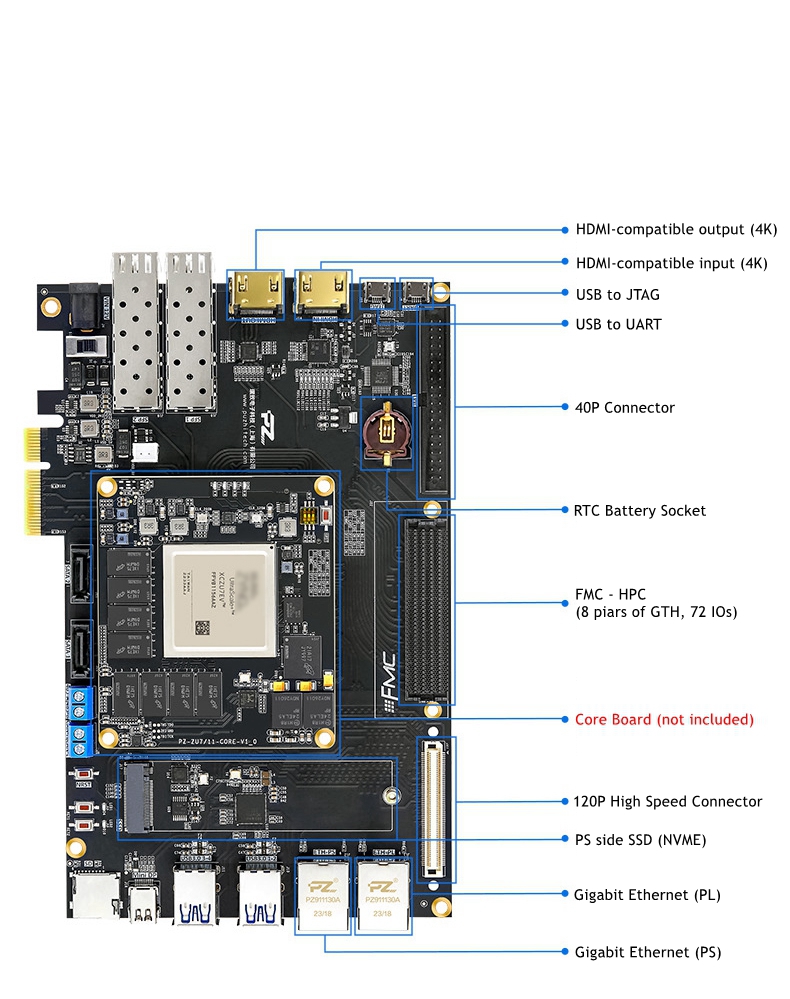

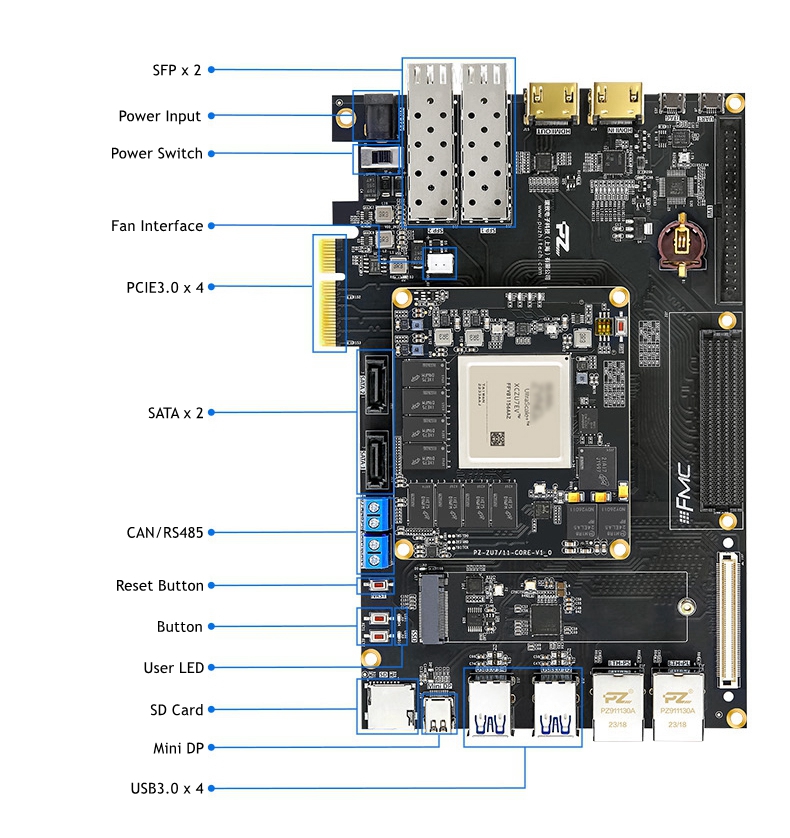

Interface and Functions:
- Integrated JTAG downloader: 1 channel
- UART/RS485/CAN: 1 channel/ 1 channel/ 1 channel
- SD card interface: 1 channel
- Gigabit Ethernet: 1 channel for PS side; 1 channel for PL side
- Mini DP output: 1 channel
- HDMI-compatible (4K): 1 channel input and 1 channel output
- SSD (NVME): 1 channel
- SFP interface: 2 channels
- SATA interface: 2 channels
- PCIE3.0: x4 interface

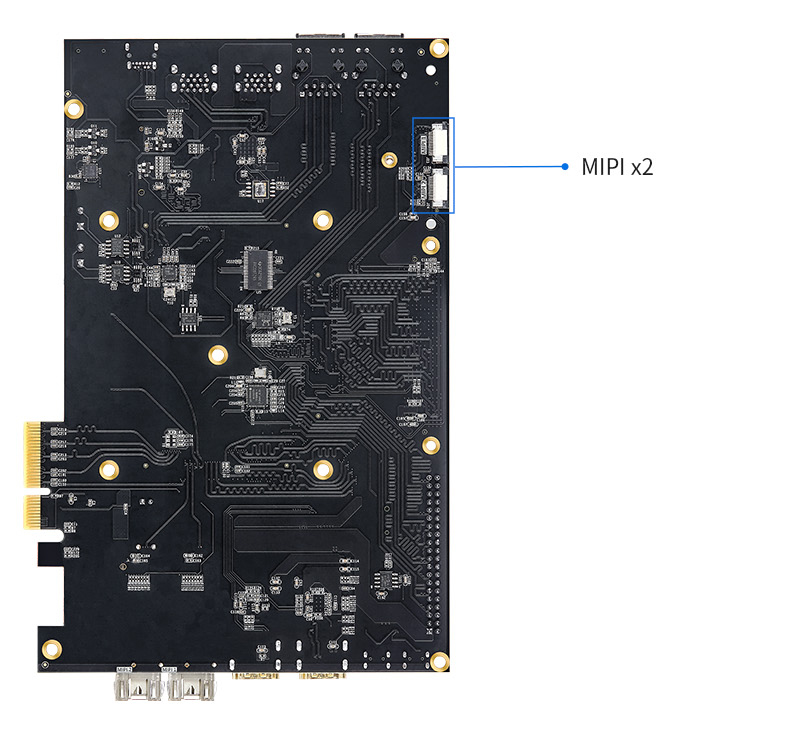

- MIPI interface: 2 channels
- LED: 2 for development board
- FMC expansion port: FMC-HPC (8 pair of GTH, 72 IOs)
- Power supply: 12V/3A
- Development size: 200 x 130mm
- 40P expansion ports: a total of 32 single ended signals/16 pairs of differential signals: 40P 2.54mm spacing expansion port, external various Puzhi modules (AD/DA, binocular camera, 4.3-inch TFTLCD screen, etc.). Expansion port includes 1-channel 5V power supply, 1-channel 3.3V power supply, 6-channel ground circuits, and 32 channels IO port.

Package Included:
- 1 x Development Board
- 1 x 12V/3A Power Adapter
- 1 x Micro USB Cable
- 1 x 12V Fan
- 1 x Heat Dissipation Sheet
- 1 x 32G SD Card
- 1 x SD Card Reader

Note:
- The core board display in the pictures is not included, for demonstration only. Thanks for your understanding.
