Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $2,859.75 | $2,801.39 | $2,713.84 | $2,597.12 | Contact US |
Ultrasonic Flow Meter Clamp On Type Precision Grade 0.5 For Water Liquids 25-5000mm Pipe
Description:
It consists of a transmitter and a sensor. External clamp-on probe featuring simple installation, no need to break your pipe or stop production on site.
It is particularly suitable for on-site flow measurement of toxic and highly corrosive media and various pressure resistance requirements. It features high reliability and low maintenance rate.
Features:
- Clamp-on installation makes application easier, without breaking your pipe
- Positive, negative flow measurement and cumulative flow measurement
- Store 8.8 million groups of data
- 50,000 hours of trouble-free test
- The life span of buttons is greater than 200,000 times
- The tensile strength of the sensor cable is 800N
- Sensor cable signal attenuation -90dB / 100M
- FPGA technology speed rate enables higher efficiency
- Standard cable length 9M, which can be prolonged by 5M, up to 305M
- Waterproof connectors with elegant design
- With ARM32bit, it consumes less power
- Clamp-on type sensor
- Enabling online installation with pressure
- Application: Perfect for water, and pipes full of liquids without much impurities, particles, floats or blistering
Specifications:
- Measuring Range: 1-100m3/h
- Precision Grade: 0.5
- Compatible Pipes: DN 25-5000mm
- Applicable Medium: Homogeneous single liquid without particles, bubbles or suspended matter
- Operating Pressure: 1.6MPa
- Working Temperature: -40 to 80℃
Technical Parameters & Options:

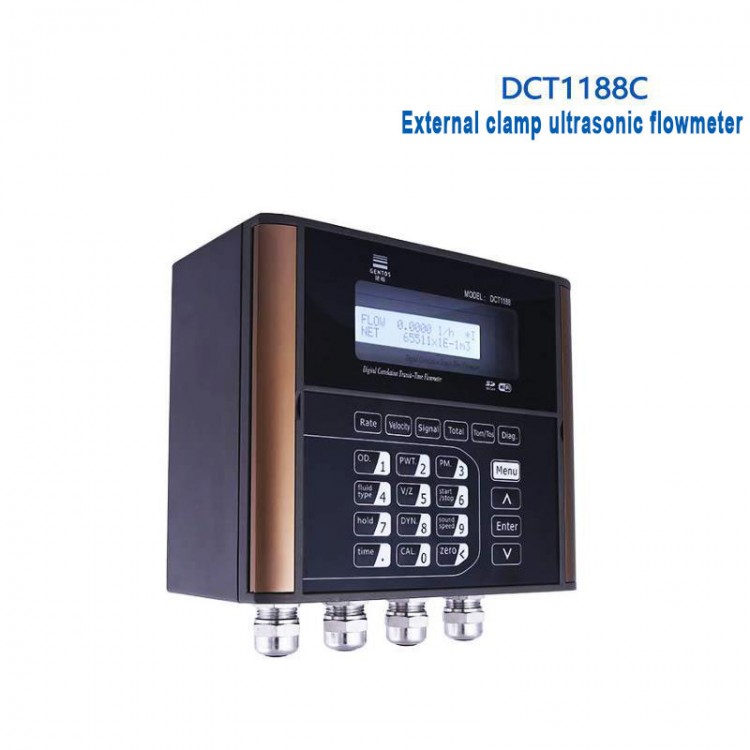

Model Selection Format: DCT1188C-A-B-C-D-E-F
DCT1188C:
- Item Name: Multifunctional Clamp-on Ultrasonic Flow Meter
- Installation Way: Wall Mounted. With SD card data memory to store data in 512 days.
- Flow Range: 0.01 to ±12m/s
- Accuracy Grade: 0.5
- Repeatability: 0.1%
- Button Quantity: 22 Buttons
- Display: 20X2 Dot Matrix Characters Backlight LCD Display
- Power Supply: 90-250VAC@48-63Hz or 10-36VDC
- Shell Material: Cast Aluminum
- Output: 4-20mA output. OTC pulse output. Relay output.
- Communications: RS-232/485 communications interface, supporting for Modbus protocol and WIFI.
- Protection Level: IP65
- Ambient Temperature: -40℃ to 80℃
A: I/O Option
- 1: 4-20mA, OCT pulse output, RS-232/485 communications interface, supporting for Modbus protocol and WIFI
- E: GPRS function
B: Transmitter Shell
- 1: Shell: Cast aluminum. Protection Level: IP65
- 2: Explosion-Proof Shell: Exd II B T4
- 3: Explosion-Proof Shell: Exd II C T4
- 4: Explosion-Proof Shell: Exd II B T6
- 5: Explosion-Proof Shell: Exd II C T6
C: Sensor
- C010 (Standard Version):
Type: Normal Temperature Clamp-on Sensor
Installation Way: Clamp-on
Compatible Pipe Diameter: 25mm-5000mm
Sensor Cable Length: 9m
Probe Shell: Zinc Alloy
Measuring Medium Temperature: -40℃ to 80℃
- CH020 (Optional):
Type: High Temperature Clamp-on Sensor
Installation Method: Clamp-on
Compatible Pipe Diameter: 25mm-1200mm
Sensor Cable Length: 9m
Probe Shell: Stainless Steel
Measuring Medium Temperature: -40℃ to 150℃
D:
- N: None
- 1: Ex Ia II B T6
E: Cable Length
- 009: Standard Cable Length: 9m
- XXX: Sensor Cable Length: It can be prolonged by every 5m and up to 305m
F (HRT):
- Agent ID
Package Included:

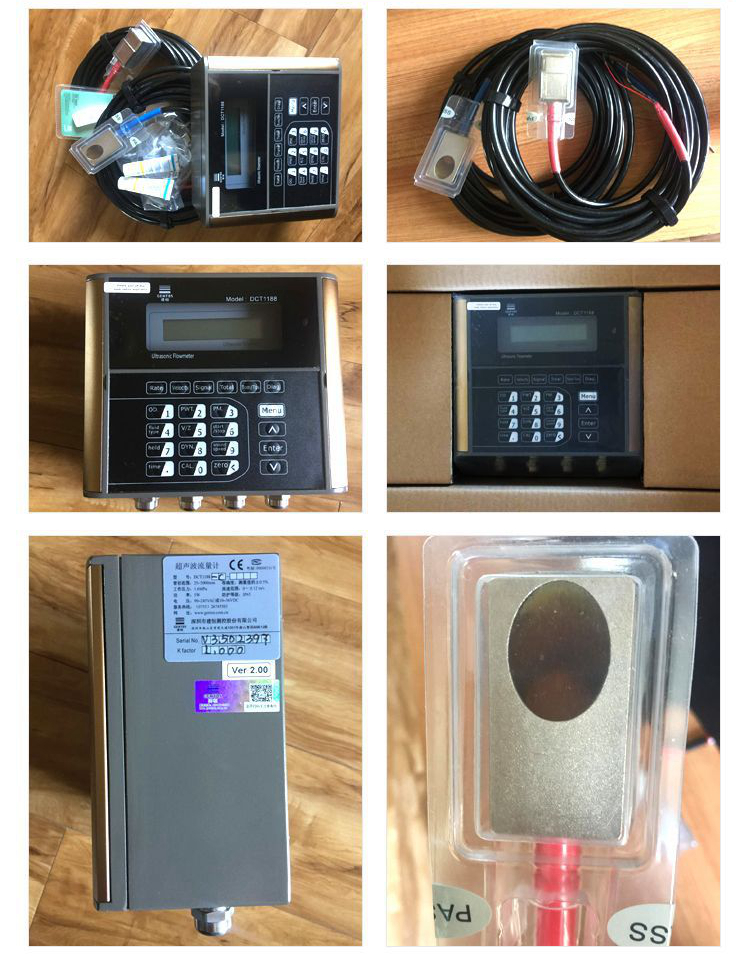

- 1 x Set of Clamp-on Ultrasonic Flow Meter
Note:
- Please tell us the type you want when purchasing.
- If there is any question, please feel free to contact us. Thank you!
