UM6500 Portable Handheld Digital Ultrasonic Thickness Gauge LCD Ultrasonic Tester Meter RISEPRO

UM6500 Portable Handheld Digital Ultrasonic Thickness Gauge LCD Ultrasonic Tester Meter RISEPRO

Description:
- This Ultrasonic Thickness Gauge is an intelligent handhold product, which adopts ultrasonic measuring principle, and is controlled by micro processor, provides quick and precise measurement of thickness for most of industrial material.
- The tool has wide measurement range from 1.0 ~ 200.00 mm (0.05 ~ 8 inch) with accurate measurements. Moreover, the meter can measure 11 types of materials include steel, cast iron, aluminum, red copper, brass, zinc, quartz glass, polyethylene, PVC, gray cast iron, nodular cast iron.
- This unit is widely used in various precise measurements for different hardware / parts in industrial realm. One of its important applications is to monitor the level of thickness decreasing during operation of various and pressure container.
- It is diffusely applied in manufacture fields, metal processing and commercial inspection. This product can be applied for the material that conduct and reflect constant sonic velocity.

Features:
- Auto Calibration to assure the accuracy
- Auto linear compensation: this advanced software program enhances the precision by correcting the non-linear accuracy of transducer
- High resolution measurement
- Use keys to select the material code to measure
- Probe automatic zero calibration for system error correction
- Collect the value of the minimum thickness
- Status indicator of the coupling and low battery
- Auto sleep and auto power off function to conserve battery life
- Humanized shape design, compact and portable, can be used in harsh environment

Specifications:
- LCD Digital display: 4 digits
- Resolution: 0.1 mm
- Operating principle: ULTROSONIC
- Measurement Range: 1.0 ~ 245.0 mm, 0.05-8inch  (Steel)
- Accuracy: ± (0.5% H + 0.1 mm) depends on materials and conditions
- Units: Metric/Imperial unit selectable
- Operating Temperature: 0 ~ 45 °C (32 ~ 104 °F)
- Power supply: 4 x 1.5 AAA Alkaline Batteries (Not Included)
- Battery indicator: low battery indicator
- Item Dimensions: approx. 72 (L) x 146 (W) x 29 (H) mm (2.83 x 5.75 x 1.14 inch)
- Item Weight: approx. 202 g (7.12 oz)

Materials Code:
- Aluminum:  Cd03
- Brass: Cd05
- Cast Iron: C02
- Gray cast iron： Cd010
- Nodular cast iron: Cd011
- Polyethylene: Cd08
- PVC: Cd09
- Quartz Glass: Cd07
- Red copper: Cd04
- Steel: Cd01
-Zinc: Cd06

Note:Don't knock the instrument during using. Handle gently and correct debugging according to the user manual.

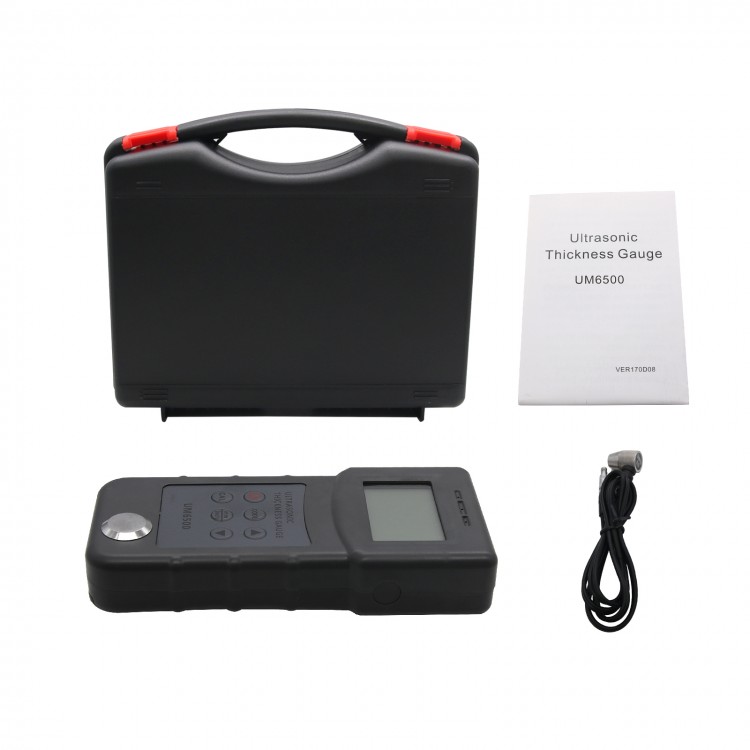

Package included:
- 1 x Ultrasonic Thickness Meter
- 1 x Transducer (8 mm)
- 1 x Operating Manual
