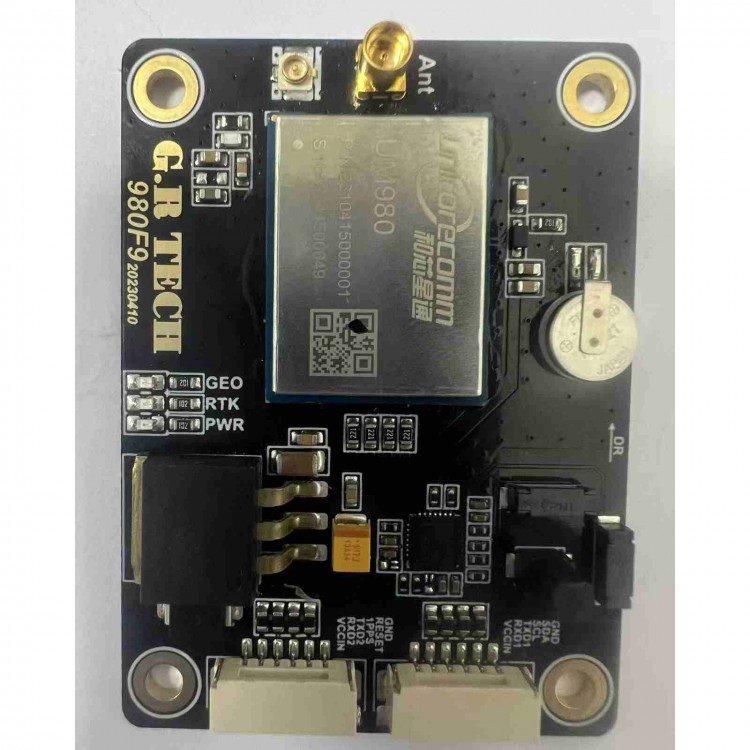

UM980 F9P GNSS Receiver Board RTK Module GNSS Module Accessory (with RMS3100 Compass) for UAV Drones
Dimensions and Applicable Environments:
* PCB size: 55mm x 40mm x 8.5mm
* Operating temperature: -40°C to +85°C
* Storage temperature: -55°C to +95°C
* Humidity: 95% non-condensing
* Vibration: GJB150. 16-2009, MIL-STD-8
* Impact: GJB150. 18-2009, MIL-S
Product Parameters:
* Supply voltage (VCC): 5V minimum and 12V maximum
* Current (12V): 300mA minimum and 1000mA maximum
* VCC maximum ripple: 0mV minimum and 500mV maximum
* Maximum tolerable ESD stress level: ±2000V maximum
Key Attributes:
* Model Number: UM980
* Chipset: RTK module
* Application: Satellite navigation
* Type: GNSS Module
* Brand: UINCORCOMM
* Minimum gain12: 17 dB
* Maximum gain12: 50 dB
* Noise figure: <4 dB
* L1 band antenna gain 14: 1559-1606 MHz: 3 dBic typical
* L2/E5b band antenna gain 14: 1197-1249 MHz: 2 dBic typical
* Polarization: RHCP
* Axial ratio: 2 dB maximum, at Zenith
* Phase center variation: <10 mm over elevation/azimuth
* EMI immunity out-of-band 15: 30 V/m
* QZSS time: UBX-NAV-TIMEQZSS
Package Included:
* 1 x Set of GNSS Receiver
Packaging Details:
* Weight: 0.2kg
