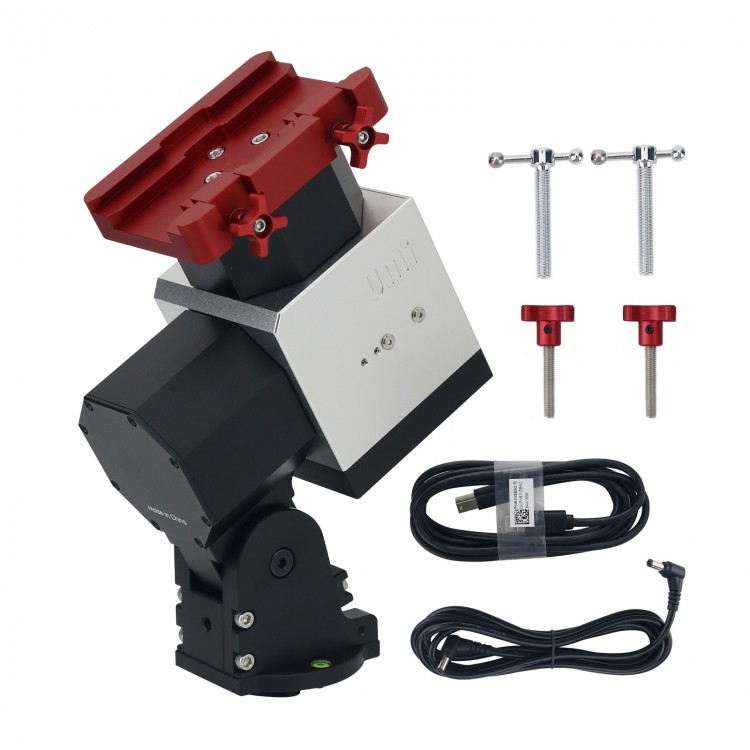

UMi17 Harmonic Equatorial Mount USB/WIFI/BT 13kg Load Capacity Support for ASIAIR/NINA/KStars System
Features:
- Power failure protection function: The Little Bear Equator has brake protection in case of power failure to prevent the main mirror from falling and being damaged.
- 13KG-20KG load capacity: The load can reach 13KG without using a heavy hammer, and up to 20KG with a heavy hammer.
- Multi platform control: support for ASIAIR/SKY SAFARI/SGP/ASCOM/NINA/INDI,etc.
- By default, it is compatible with HEQ5 and EQ3D standard tripods. However, it requires an adapter plate or height knob to adapt to the photography tripod. (Tripods are not included)
Specification:
- Equatorial mount: German equatorial mount
- Mode: equatorial
- Supported systems: for ASIAIR, NINA, KStars, etc.
- Transmission mode: harmonic + synchronous belt (300:1 reduction ratio)
- RA driving: step motor + 17-type 100 reduction ratio harmonic + brake
- DEC driving: step motor + 17-type 100 reduction ratio harmonic
- Load: 13kg (without CW)/20kg (with CW)
- Equatorial mount weight: 6.5kg
- Dovetail slot (weight): Losmandy & Vixen (440g)
- Counterweight bar thread: M12
- Power interface: DC5.5-2.1 (12V-3A)
- Guide star interface: ST4
- Communication interface: USB/WIFI/BT
- Power-off brake: support
- Periodic error: provide a 10 minute guide star log from factory
Package Included:
- 1 x Equatorial Mount
