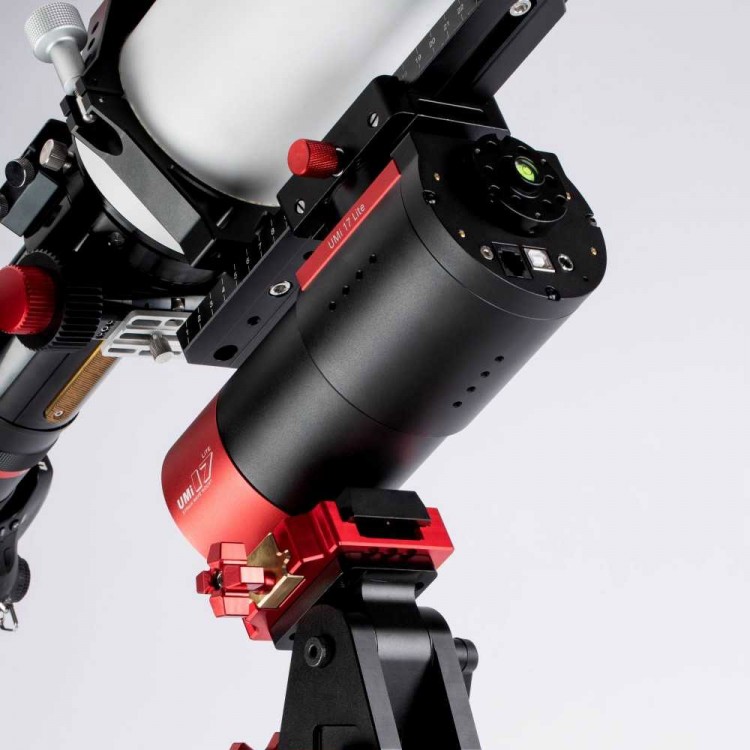

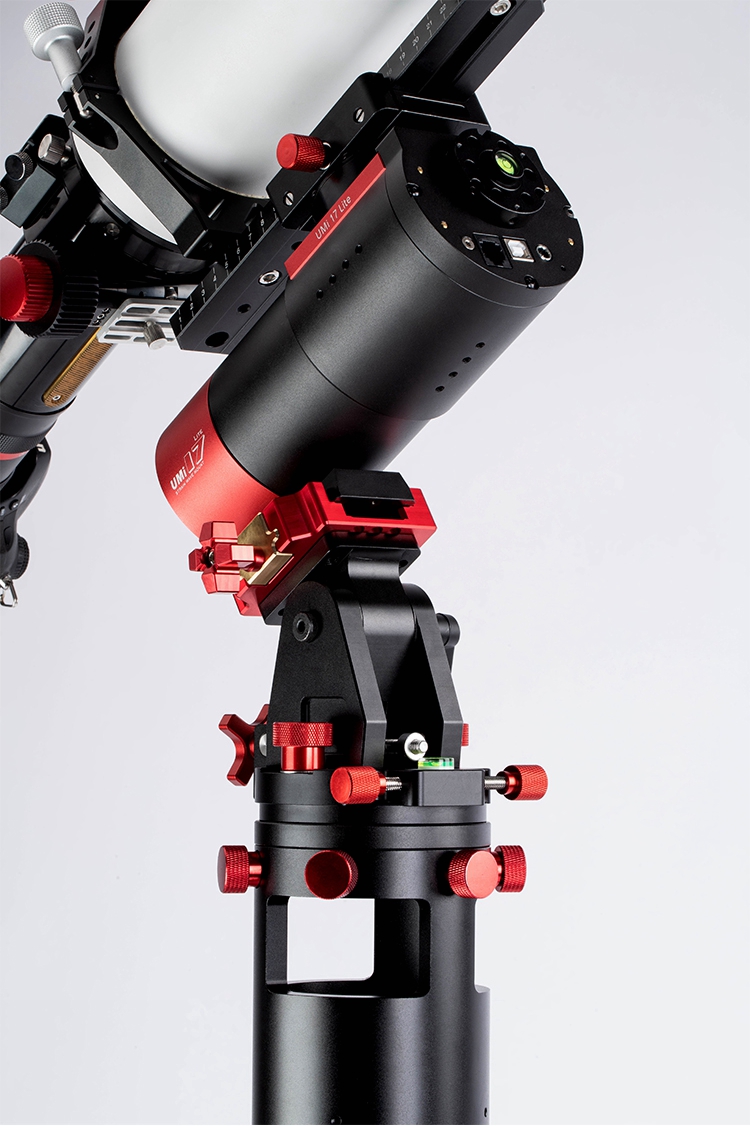

UMi17 Lite Harmonic Equatorial Mount 10-13kg Load Capacity ST4 Guiding Support for ASIAIR/NINA/KStars

Availability: In stock, usually dispatched in 1 business day

  • Price:$1,151.38
  • Price in reward points: 11514 Reward Points: 115
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $1,128.35 $1,105.32 $1,070.78 $1,024.73 Contact US
Quantity:

UMi17 Lite Harmonic Equatorial Mount 10-13kg Load Capacity ST4 Guiding Support for ASIAIR/NINA/KStars

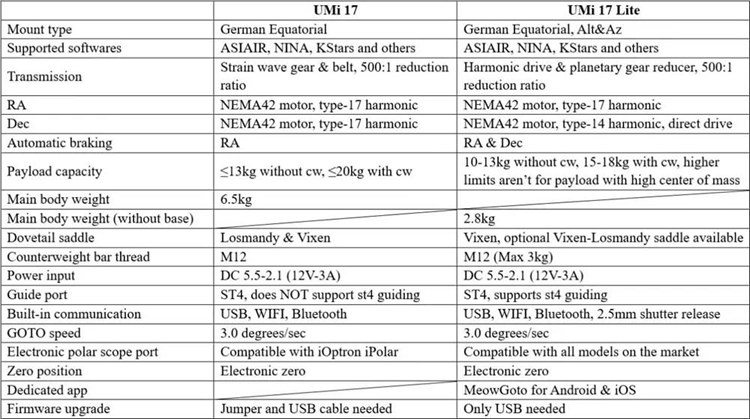

Specification:

- Type: equatorial mount mode, Alt & Az
- Supported software: for ASIAIR, NINA, KStars and others
- Transmission: harmonic drive, planetary gear reducer, 500:1 reduction ratio
- RA: NEMA17 motor, type-17 harmonic
- Dec: NEMA17 motor, type-14 harmonic, direct drive
- Power-off braking: RA & Dec
- Load capacity: 10-13kg without cw, 15-18kg with cw, the maximum value is only applicable to the main lens with a low center of gravity.
- Body weight (without base weight): 2.8kg
- Dovetail slot: Vixen narrow slot
- Counterweight (rod): maximum 3kg (M12)
- Power input: 12V 2A
- Guide star interface: ST4, support ST4 guiding star
- Transmission: USB, WIFI, Bluetooth, 2.5mm shutter release
- GOTO speed: 2.9 degree/second
- Electronic polar scope port: compatible with all models on the market
- RA & Dec base: support the third party RA & Dec base, for Sky-Watcher, iOptron, etc.
- Zero position: electronic zero

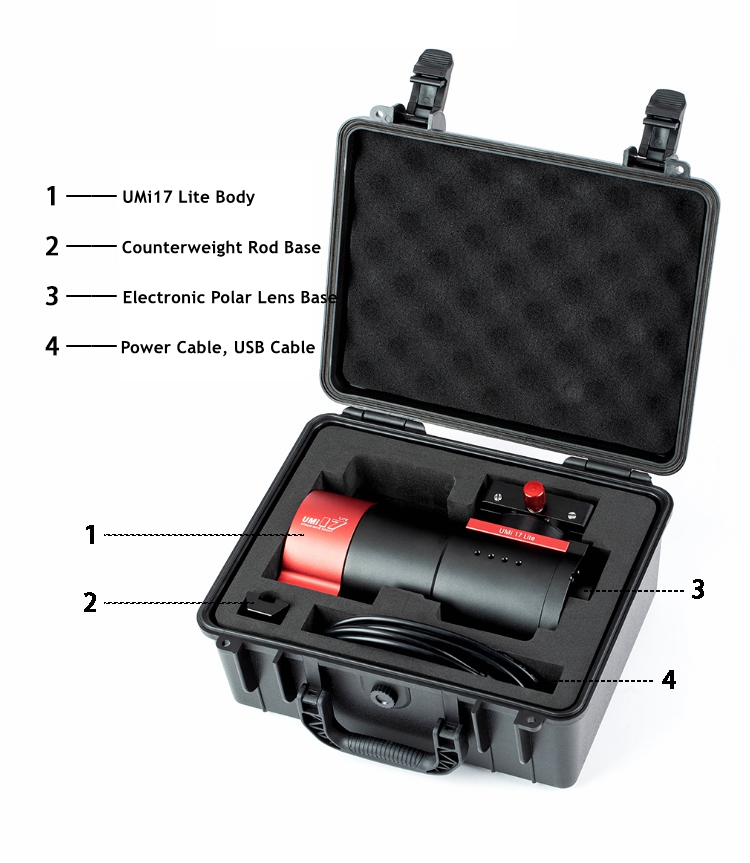

Package Included:
- 1 x Set of UMi17 Lite
