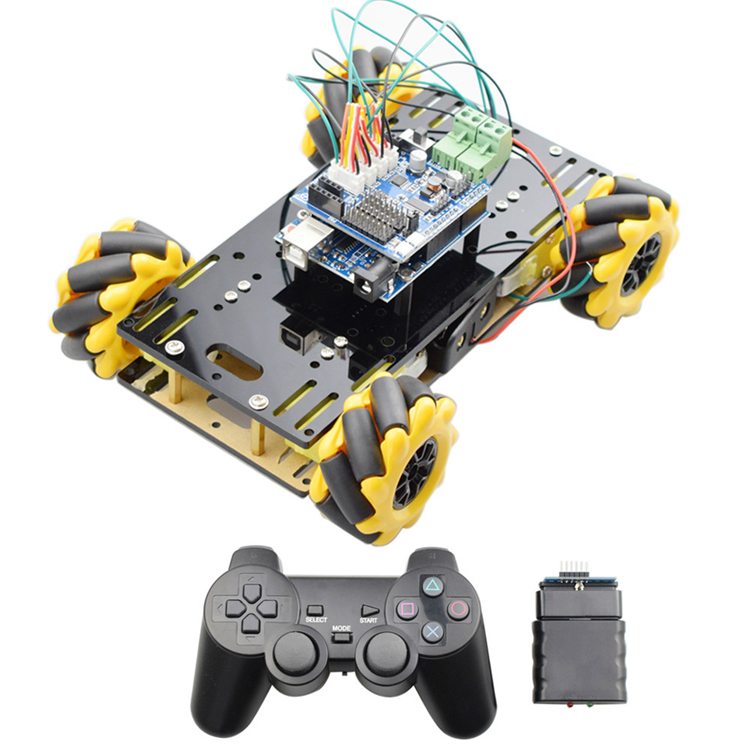

Unassembled Mecanum Wheel Car Smart Robot Car Chassis w/ Motors + Joystick Controller For Arduino
Motor Parameters:
- Motor name: Straight double shaft reduction motor
- Model: 1B48-1416LSD6 (comprehensive type) 1:48
- Description: Strong magnet, with anti-interference, high speed, high torque
- DC 3-7.2V
- Rated voltage 3V, current ≤170 mA, rotation speed 115±10%r/min, torque 0.7±10%kgf.cm
- Rated voltage 6V, current≤230mA, rotation speed 255±10%r/min, torque 1.2±10%kgf.cm
- Rated voltage 7.2V, current≤250mA, rotation speed 320±10%r/min, torque 1.5±10%kgf.cm
Package Included:
- 2 x Acrylic Boards
- 4 x Motors
- 4 x 60mm Mecanum Wheels
- 4 x Motor Brackets
- 4 x Couplings
- 1 x Set of Screws

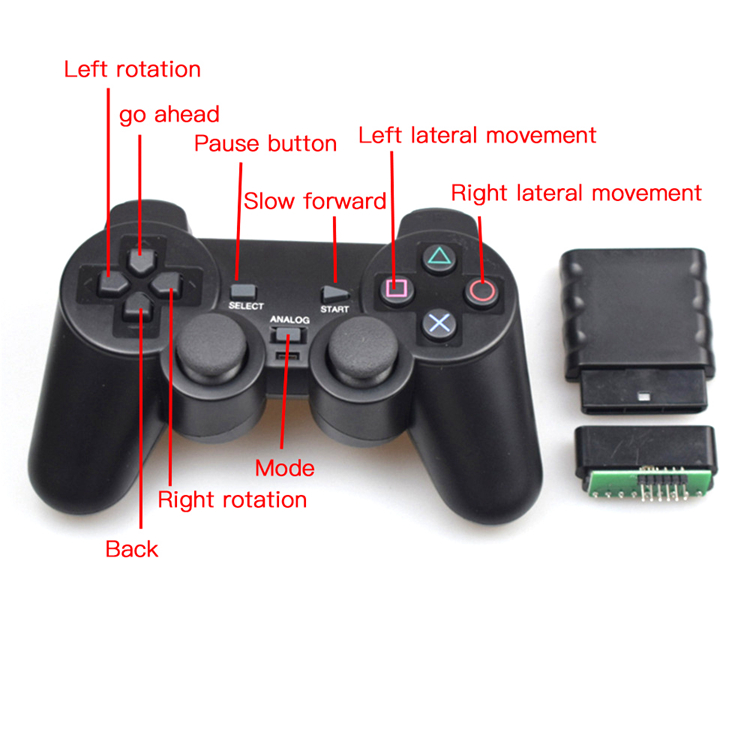

- 1 x Set of Joystick Controller
- 1 x Development Board For UNO
- 1 x Driver Board For UNO
- 1 x USB Cable
- 4 x Motor Cables
Note:

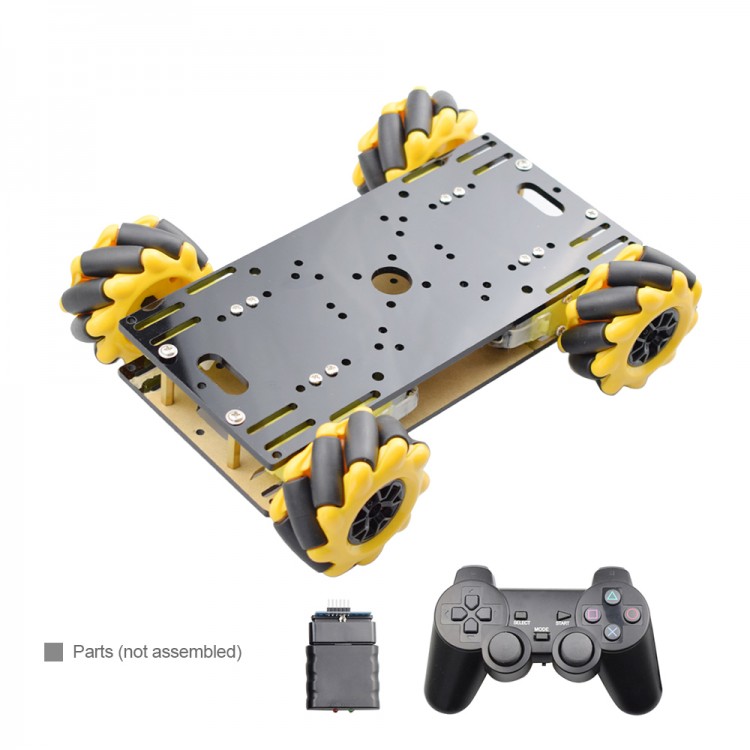

- Assembling is needed. It is easy to assemble. Pictures below are for reference only.
- Batteries are not included. 2pcs 18650 batteries are recommended. 2pcs AAA batteries are needed for the joystick controller.
