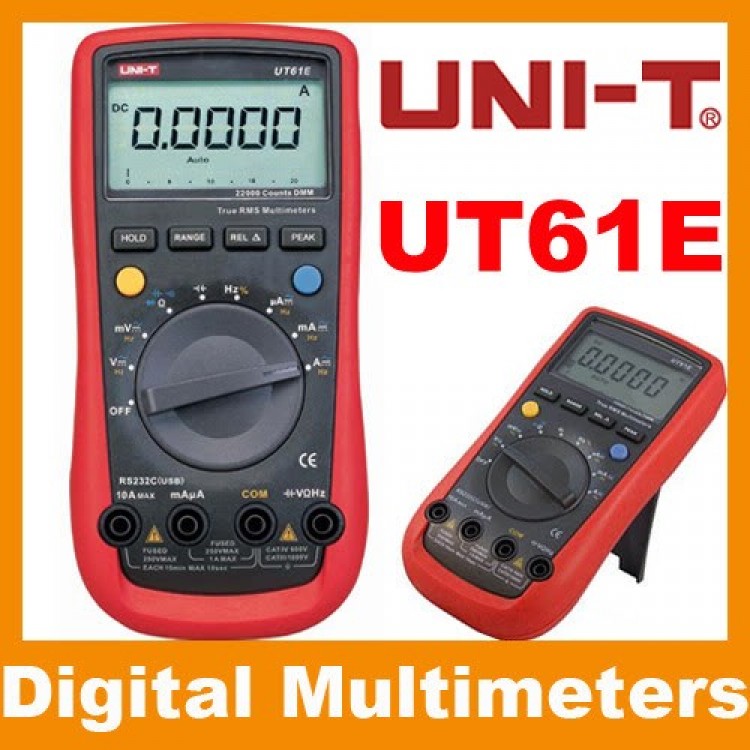

UNI-T UT61E Modern Digital Multimeter Meter AD DC RMS
The TRMS PCE-UT 61E has a clear high contrast backlight LCD display with a indicator up to 22000 to allow for a good reading from any viewing angle even with poor light conditions. The case of the TRMS PCE-UT 61E comes with a housing to protect it against harsh conditions.
Main Features:
- Power: 9V Battery (6F22)
- LCD Size: 65 x 43mm
- Product Colour: Red and Grey
- Product Net Weight: 370g
- Product Size: 180 x 87 x 47mm
- Standard Individual Packing: Gift Box
- Standard Quantity Per Carton: 20pcs
- Standard Carton Measurement: 465 x 335 x 345mm (0.054 CBM Per Standard Carton)
- Standard Carton Gross Weight: 2kg
Specifications:
|
Basic Functions |
Range |
Best Accuracy |
|
DC Voltage |
220mV/2.2V22V220V/1000V |
(0.1%+2) |
|
AC Voltage |
220mV/2.2V/22V/220V/750V |
(0.8%+10) |
|
AC Current |
220mA/2200mA/22mA/220mA/2.2A/10A |
(0.8%+10) |
|
DC Current |
220mA/2200mA/22mA/220mA/2.2A/10A |
(0.5%+10) |
|
Resistance |
220Ω/2.2KΩ/22kΩ/220kΩ/2.2MΩ/22MΩ/220MΩ |
(0.5%+10) |
|
Capacitance |
22nF/220nF/2.2mF/22mF/220mF/2.2mF/22mF/220mF |
(3.0%+5) |
|
Frequency |
10Hz-220MHz |
(0.01%+5) |
|
FrequencyResponse |
0 |
45Hz~10kHz |
|
Duty Cycle |
0.1%~99.9% |
Yes |
|
Special Functions |
|
|
|
Auto/Manual Ranging |
|
Yes |
|
Diode |
|
Yes |
|
RMS |
|
Yes |
|
Continuity Buzzer |
|
Yes |
|
Data Hold |
|
Yes |
|
Peak Value |
|
Yes |
|
Display Backlight |
|
Yes |
|
REL |
|
Yes |
|
Sleep Mode |
Around 15 Minutes |
Yes |
|
Analogue Bar Graph |
|
46 |
|
RS232 |
|
Yes |
Package Including:
- 1 x UNI-T UT61E Modern Digital Multimeter
- 1 x Test Lead
- 1 x UT61 Multi-Purpose Socket
- 1 x RS232C Interface Cable
- 1 x Installation Guide & Computer Interface Software (CD-ROM)
