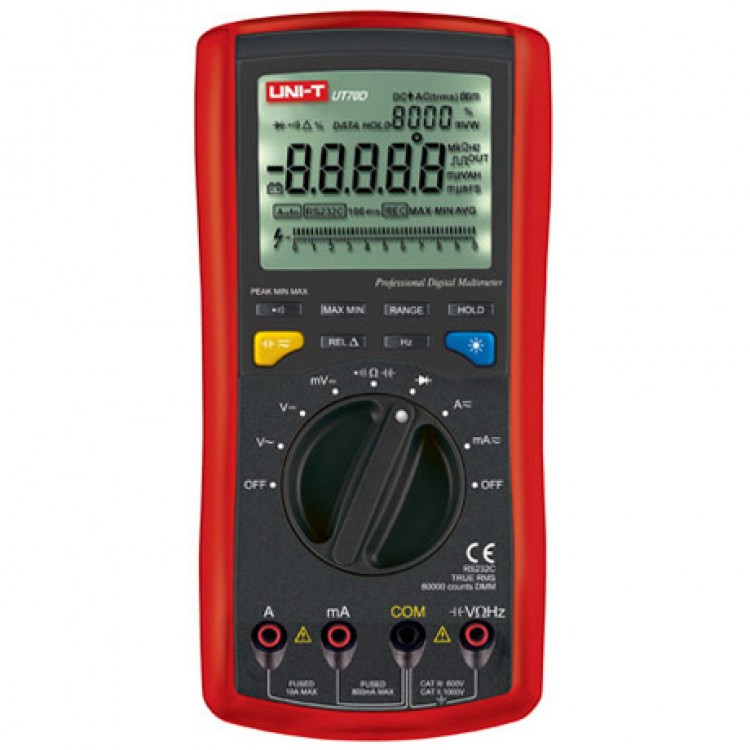

SPECIFICATIONS
| Basic Functions | Range | Best Accuracy |
|---|---|---|
| DC Voltage | 80mV/800mV/8V/80V/800V/1000V |  (0.05%+10) |
| AC Voltage | 800mV/8V/80V/800V/1000V | (0.8%+20) |
| DC Current | 80mA/800mA/8A/10A | (0.2%+40) |
| AC Current | 80mA/800mA/8A/10A | (0.5%+40) |
| Resistance | 800W/8kW/80kW/800kW/8MW/80MW | (0.3%+40) |
| Conductance | 80nS | (2%+120) |
| Capacitance | 1nF/10nF/100nF/1mF/10mF/100mF | (2%+3) |
| Frequency | 1kHz/10kHz/100kHz/1MHz | (0.02%+1) |
| Duty Cycle | 1%~99.9% |  |
| Special Functions | ||
| Fused 10A Range | | |
| Auto Ranging | | |
| Diode | | |
| Continuity Buzzer | | |
| True RMS | AC | |
| Peak/Min/Max | | |
| Max/Min/Avg | | |
| Relative Mode | | |
| Auto Data Hold | | |
| RS232C | | |
| Display Backlight | | |
| Full Icon Display | | |
| Sleep Mode | | |
| Low Battery Display | | |
| Input Impedance for DC Voltage Measurement | 10MW | |
| Max Display | 79999 (frequency measurement counts 99999) | |
| Analog Bar Graph | |
GENERAL CHARACTERISTICS
| Power | 9V Battery (6F22) |
| LCD Size | 62 x 53mm |
| Product Colour | UT70D-Grey, Holster - Red |
| Product Net Weight | 600g (including holster) |
| Product Size | 195 x 90 x 40mm |
| Standard Accessories | Test Lead, Battery, English Manual, Test Clip, RS232C Interface Cable, Software, Holster |
| Optional Accessories* | Clip-On Test Lead Light (UT-TL), Built-In Test Lead Light (UT-L1), Built-In Test Lead Light Plus (UT-L2), Carrying Bag |
| Standard Packing | Gift Box |
| Standard Quantity Per Carton | 20 pcs |
| Standard Carton Measurement | 535 x 365 x 380mm (Around 0.074 CBM Per Standard Carton) |
| Standard Carton Gross Weight | 22.7kg |
