| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $126.41 | $123.83 | $119.96 | $114.80 | Contact US |

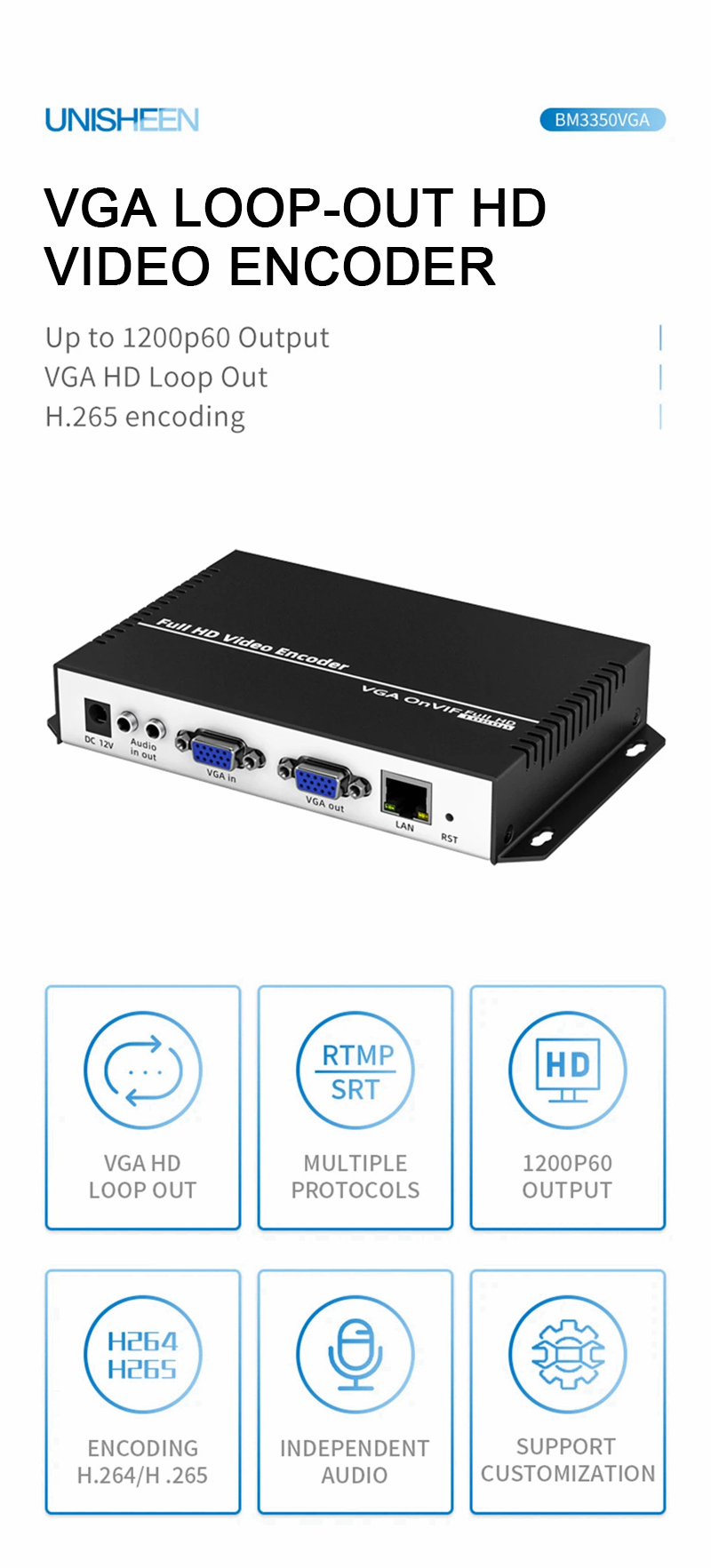

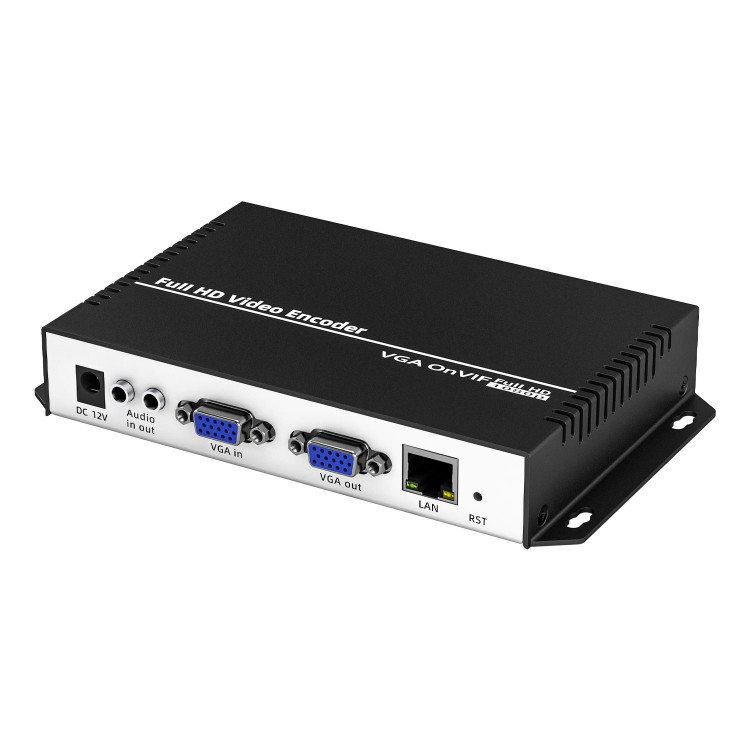

Unisheen BM3350VGA Full HD Video Encoder VGA Encoder H265 Encoder for ONVIF Live Streaming Meeting
Features:

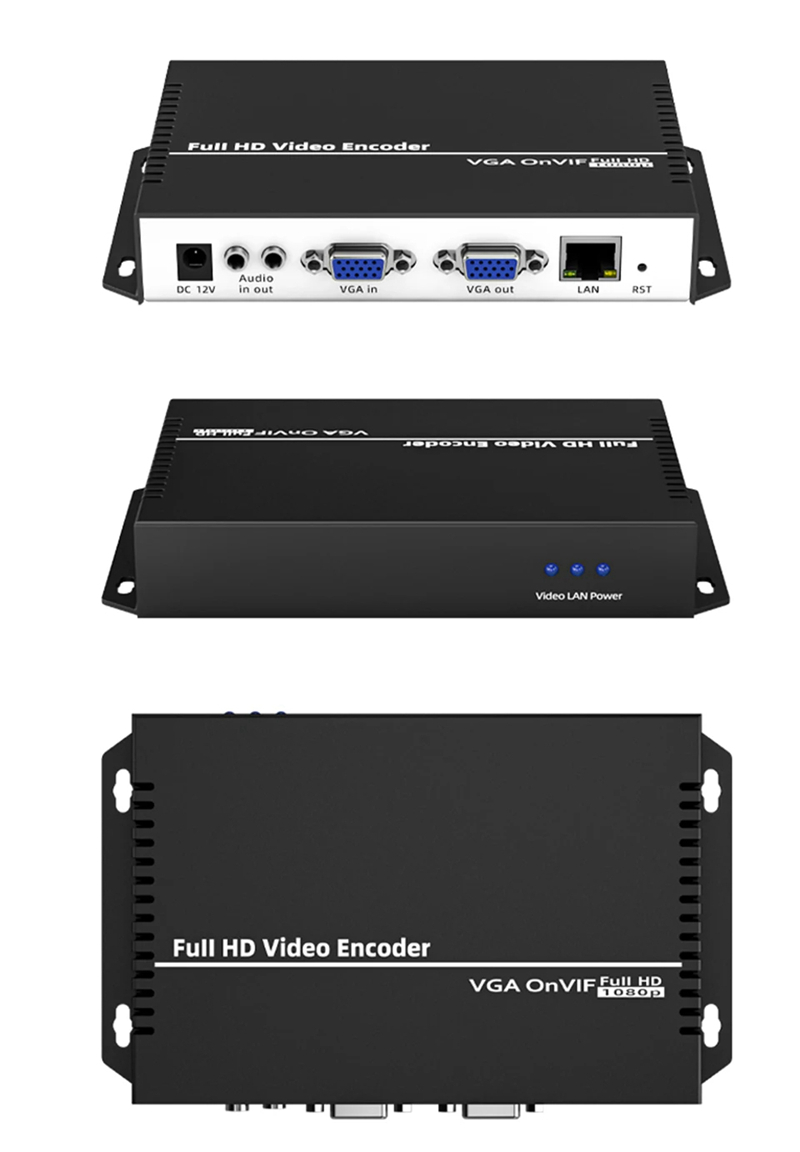

* 1x VGA (WUXGA)/1xVGA Out (hold during power off)
* Up to 1920x1200
* SRT/RTSP/RTMPS/UDP/NVR, etc.
* Private Low Latency Protocol UTP
* Video Rotation, Flip, Mirror and Clip
* Separate Audio or Video Stream
* Play Stream on Browser
Specifications:
Video:
* Input/Output Loop: 1x VGA (WUXGA)/1xVGA (hold during power off）
* Resolution: 1920x1200P60, 1920x1080 at 60P/50p, 1920x1080 at 60i/50i/1280x720 at 60p/50p, 1680x1050, 1600x1200, 1600x900, 1440x900, 1400x1050, 1366x768, 1360x768, 1280x1024, 1280x960, 1280x800, 1280x768, 1280x720, 1280x600, 1152x864, 1024x768, 800x600 720x576i/720x480i, 640x480, 320x480, 352x288, 240x320, 176x144, 160x120, 128x96, 88x72

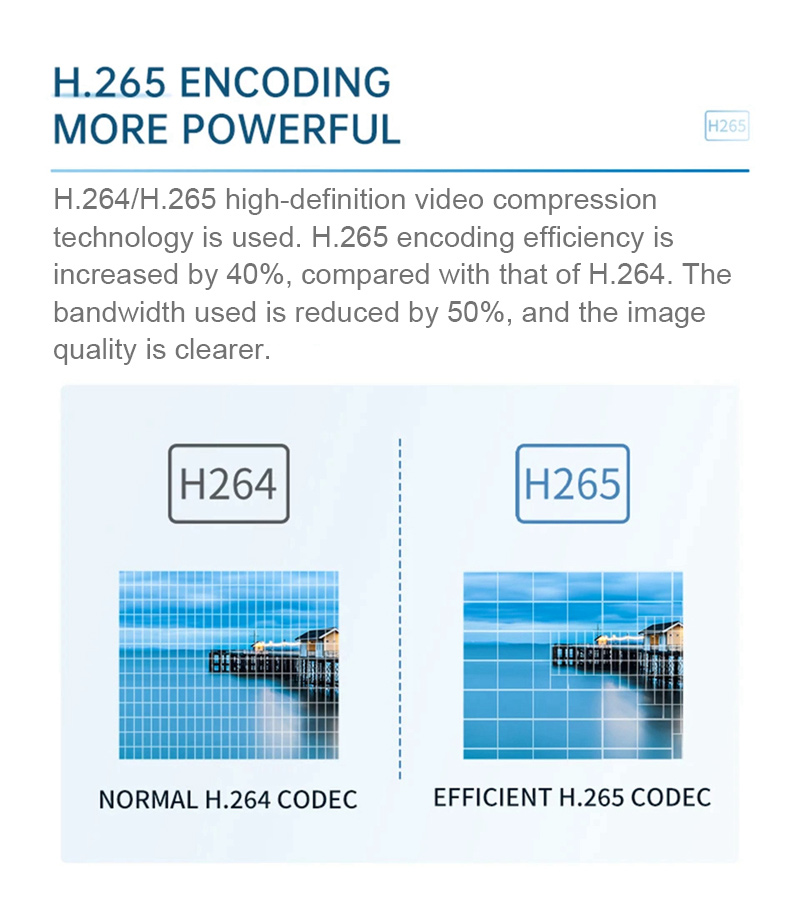

* Encoding: H.265/H.264/AVC
* Encoding output FPS: 1080P60 (only input 1080P60)
* Data rate: 0.16Mbps~32Mbps
* Rate control: CBR/VBR
* GOP: 5-300
* Advanced pre-treatment: Video Rotation, Flip, Mirror and Clip
* Latency time: 100ms
Audio:
* Input/Output loop: 1x3.5mm/1.3.5mm
* Encoding: AAC/AAC+/MP3/MP2/AC3/G711.A/G711.U
* Sampling rate: 44100Hz/48000Hz
* Bit-rate: 32K/48K/64K/96K/128K/160K/192K/384K
* Sampling precision: 24 bit
System:
* Ethernet: 1000M

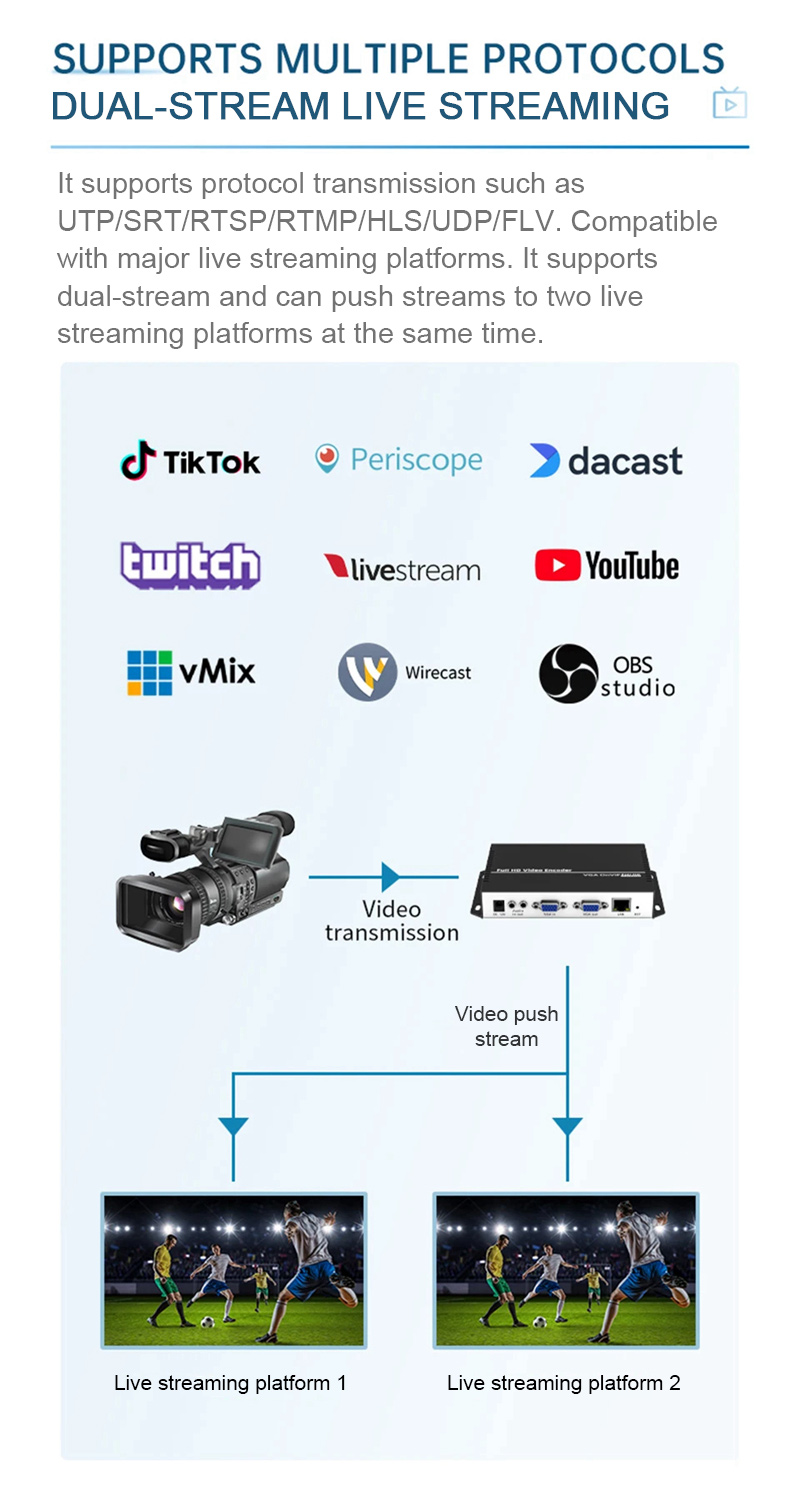

* Protocol: SRT/UTP/HTTP/RTSP/RTMP/HLS/FLV/UDP multicast/unicast GB28181

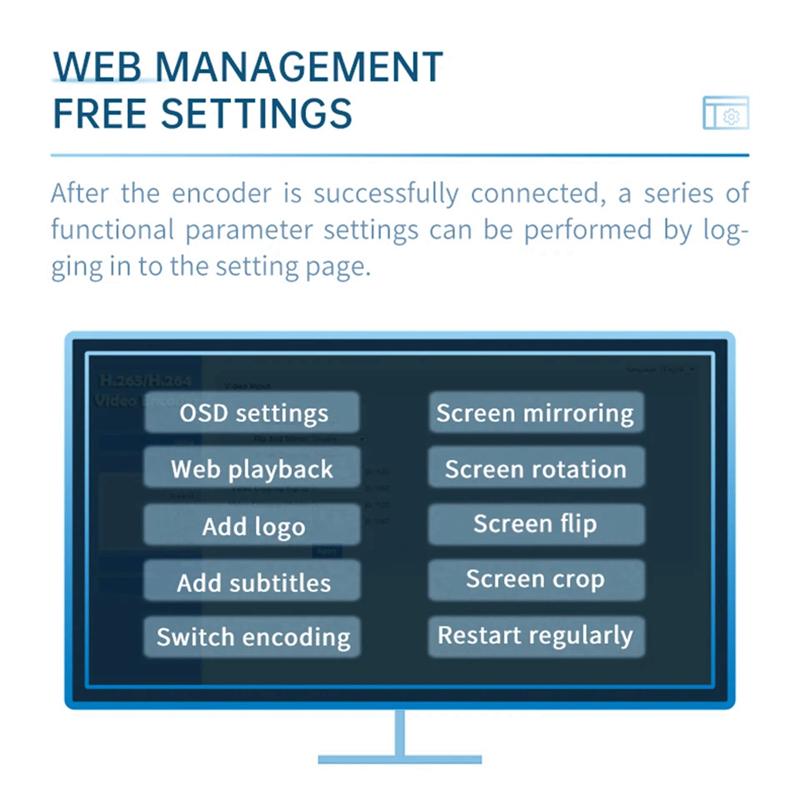

* Control interface: Website
General:
* Dimensions (LxWxH): 105 x 152 (173) x 28mm/4.1 x 6 (6.8) x 1.1"
* Net Weight: 0.3kg/0.7lb
* Temperature: 0-45℃ (working), -20 to 80℃ (storage)
* Power adapter: 12V DC 1A
* Consumption: 5W
Package Included:
* 1 x Set of video encoder
Packaging Details:
* G.W.: 0.55kg
