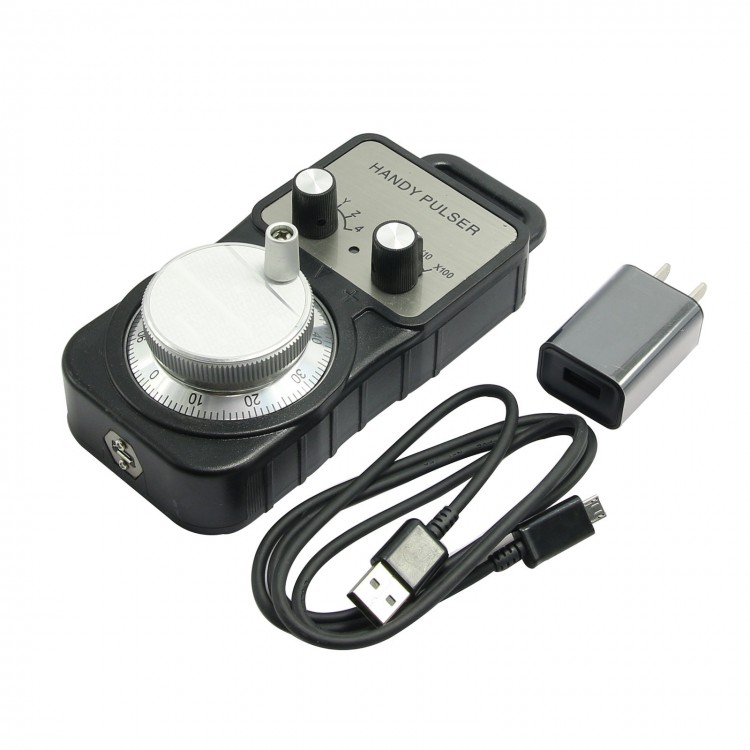

Universal CNC Handwheel/Handheld Pulse Generator CNC Machine Tools Manual Pulse Generator
Note: Before you are ready to submit to purchase this product, please provide the name of the customer service system you are using,according to customer service system supporting wireless handwheel, a common type system has three 5V differential with AB A-B-, this most common large most systems use this pulse mode output, while an other is dedicated Mitsubishi systems, 12V, 25PPR,one ineach cell output 4pulses, the last one is the hair cell sand PLC with only AB two-phase pulse power to24V
Description:
- The handheld pulse generator used on CNC machine tools (Manual Pulse Generator),There are many call:
MPG handwheel, MPG, electronic hand wheel, hand-held unit, handheld pulse generator.
- The company specializes in the production of wireless / wired handheld pulse generator (electronic handwheel), fit the world any of a CNC control system, such as Siemens (SIEMENS), Mitsubishi (MITSUBISHI), Fanuc (Fanuc), Fagor(Fagor), Po-yuan, a new generation of JDpaint, NcStudio, GSK, KND, Nordson Adtech ......
- The products are widely used in CNC milling machines, machining centers, large gantry milling machine, CNC robotic application machine.
- Wireless transmission technology, easy to operate, eliminating the need for the traditional spring wire connections to reduce accidents caused by cable failure rate and the connector is loose. Eliminates cable drag, avoid oil, cable cracking caused by machine failure.
- Wireless electronic handwheel (the handheld pulse generator), the receiver via with 18 core spring wire and machine connection, electronic handwheel (the handheld pulse generator) connected communication through wireless transmission technology and the receiver, can support 11 shaft complex mechanical arm, which is unique in the world. The operator can be armed with hand wheel, get rid of the shackles of spring wire connection, you can move around freely, easy to operate, free, stable and reliable, reduce the failure rate (because of the traditional wired hand wheel, you need to connect a spring line, a long time, spring wire the cable is easy to cut off, causing operation failure). Applications for large gantry milling machine, large CNC machine tools, machine tools, such as walking, is a great convenience, improve work efficiency.
Product Type |
GPSeries |
Pulse output |
100PPR |
|
Supply range |
DC 5v |
Current (no load) |
≤60mA |
|
Output Type |
Voltage |
Voltage Output |
Hirht≥ VccX0.7v |
Low≤0.5v |
Current output |
≤ 35mA |
Fall/Pulse Time |
5us(Type) |
|
Frequency Response |
0~5Khz |
Isolation resistance |
≥20MΩ |
|
Power LED |
|
Product size |
155(with hanging handle)*70*30mm |
|
Product Weight |
525g |
Operating / Storage temperature |
-10~+60 ℃-20~+70℃ |
|
Magnification selection |
X1,X10,,X100 |
Axial select |
OFF,X,Y,Z,4, |
|
Emergency stop switch |
Optional |
Mounting bracket |
Optional |
|
Spring wire specifications |
Matt black, 16-core, natural length of about two meters, stretching a length of about 5 meters |
User Manual Download Click:Here
Package included:
- 1 x Universal CNC Handwheel/Handheld Pulse Generator CNC Machine Tools Manual Pulse Generator
