Universal Touch Screen Display Module TFT Mega Shield Dedicated Expansion Board for Arduino
Description:

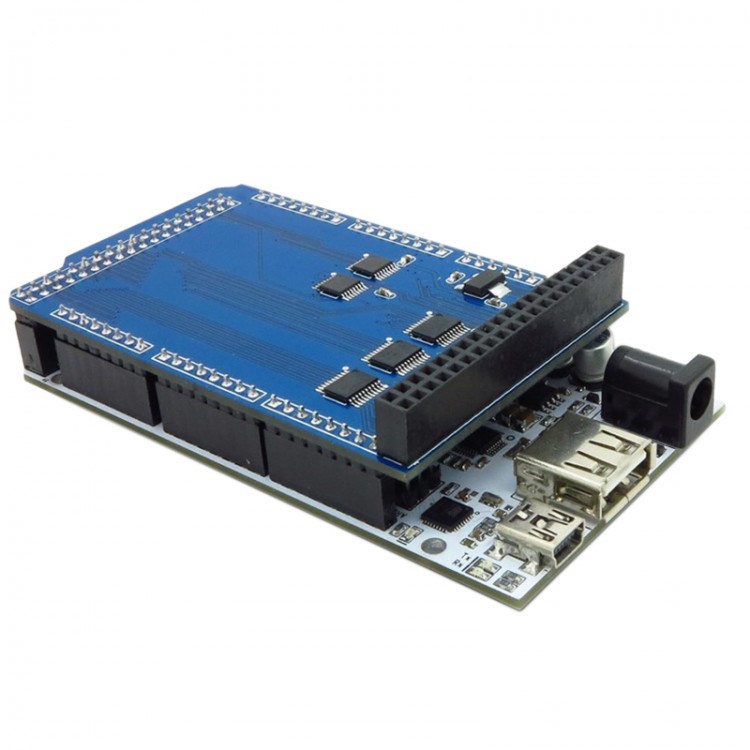

The ITDB02 LCD module works in 3.3V voltage level and it's not compatible with MGEA pins , so we make a shield for MEGA. Now user can directly plug the ITDB02 in the shield and stand on the MEGA board.
ITDB02 MEGA shield support both 3.3V mainboard and 5V mainboard, so it not just can be used with MEGA but can with other MEGA compatible mainboards , like ChipKit MAX32.
Note: It does not support Iteaduino Mega.
Support List:
- ITDB02-2.2
- ITDB02-2.4E
- ITDB02-2.8
- ITDB02-3.2S
- ITDB02-3.2WD
- ITDB02-4.3
- ITDB02-5.0
Package included:
- 1 x Expansion Board
