UNO R3 Board Vacuum Pump Suction Cup Kit Robot Arm Parts for Arduino Mechanical Arm DIY
UNO R3 + Sensor Shield V5.0 Extension Board:
* It has good scalability and open source compatibility. With a V5.0 expansion board, it can be connected to an external power supply, which is convenient for plugging in and eliminates cumbersome soldering.
Vacuum Pump:
* Miniature vacuum pump (370 motor servo) with PWM electronic switch. It is controlled by pulse program in a direct way. Simple and convenient to program
* Rated voltage: DC4.5-6.6V
* No-load current: 0.15A
* Pressure range: 400-650mmhg
* Maximum vacuum: > -350mmhg
* Weight: 65G/0.1LB
Three-way Electronic Valve:
* Rated voltage: DC6V
* Current: 220mA
* Suitable voltage: DC4.8-6.6v
* Power: < 2W
* Pressure range: 0-350mmhg
* Used media: gas
* Cord length: 15cm/5.9"
* Weight: 16G/0.04LB

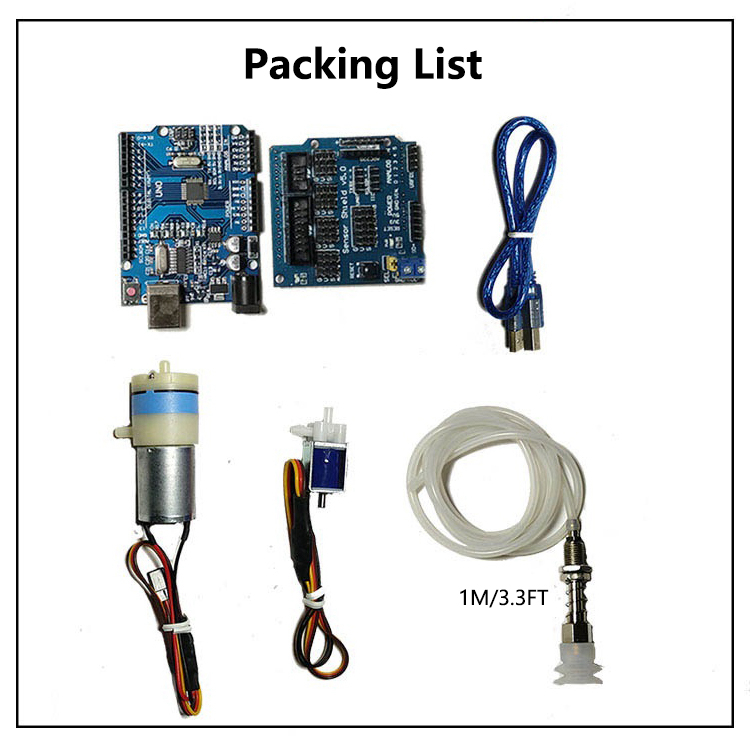

Package Included:
* 1 x UNO R3 Board
* 1 x Sensor Shield V5.0 Expansion Board
* 1 x USB Cable
* 1 x Vacuum Pump
* 1 x Three-way Electronic Valve
* 1 x Silicone Air Hose with Connecting Rod
Attention:
* It is mainly used for learning, intelligent development, software testing, entertainment research, etc., instead of being used for industrial purposes.
* Users are required to acquire certain electronic knowledge and hands-on ability.
