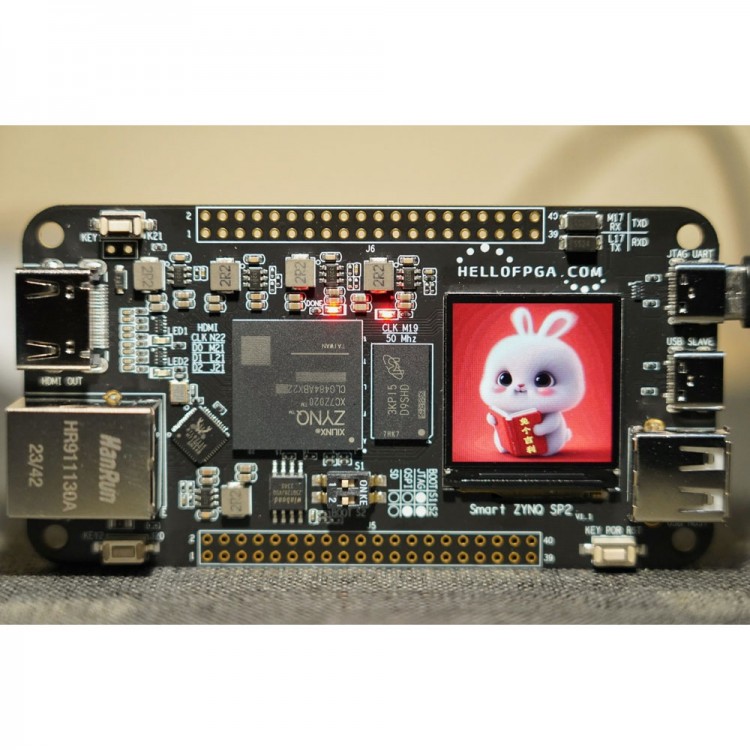

Unwelded SP2 Version 7020 FPGA Minimum System Development Board 1.3-inch Square Screen Core Board Onboard Downloader for Xilinx

Availability: In stock, usually dispatched in 1 business day

  • Price:$119.76
  • Price in reward points: 1198 Reward Points: 12
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $117.36 $114.97 $111.38 $106.59 Contact US
Quantity:

Unwelded SP2 Version 7020 FPGA Minimum System Development Board 1.3-inch Square Screen Core Board Onboard Downloader for Xilinx

Board Instruction:

- Main chip 7020 (new industrial grade chip)
- 512MB DDR3
- TF card slot
- 16MB QSPI FLASH (can be responsible for startup)
- EEPROM 2KB(PL)
- Two channel LED (PL)
- Two buttons (PL)+one POR reset button
- One channel UART (PL)
- Onboard downloader for Xilinx
- One channel USB can be used as USB SLAVE or USB HOST
- Lead out 68 channel GPIO (all led out from PL port) (34 groups), all connected in pairs using differential lines, with equal length inside the differential lines
- The BANK on one side is independently powered, and the BANK voltage can be adjusted through a resistor
- Gigabit Ethernet (connected to the PL port)
- HDMI-compatible output interface
- 1.3 inch colored LCD display screen: 240 x 240 (connected to PL port)
- The PL is connected to a 50M active crystal oscillator; HDMI-compatible and USB, and the downloader is connected to an ESD electrostatic protection device layer
- More details: http://www.hellofpga.com/index.php/2024/01/21/smart-zynq-sp2/

Package Included:

- 1 x Development Board

Note:
- This product is not welded, you need to weld it by yourself.
