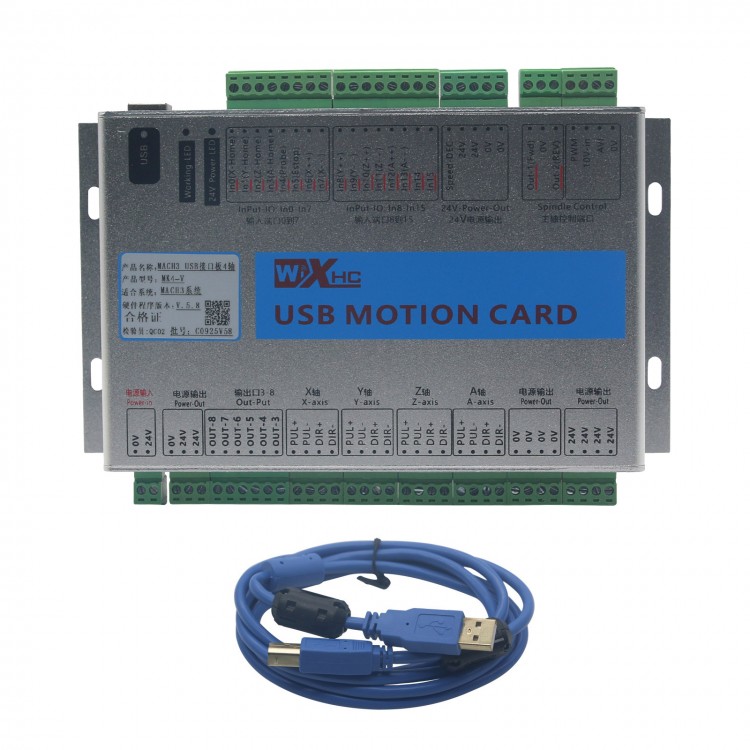

Applications:MK4-V:4 axis motion card works with Mach3 CNC system under all windows platform
Electrical Characteristics:
- CPU: Dual-Processors, for ARM+FPGA
- Axis output control:
Drive Current: Isolated open collector output; 5V, 20mA
Drive: Pulse + direction output
Output frequency:2000 KHZ (2MHz)
Axis: MK4-M4:4-axis
Isolation Voltage: 3.5KV
- Spindle inverter output
Analog voltage output:0-10V
PWM output: 5V, 1KHZ, Duty; 0-100%
Pulse + direction output: 5V, 15HZ to 4 KHZ
- Spindle speed input
Input: Isolated input, 5V pulse signal
Isolation Voltage: 3.5KV
- 8 IO output
Drive Current:Isolation: 50mA, 25V
Isolation Voltage: 3.5KV
- 16 IO input
Input Current: Isolated inputs, 5 mA, maximum voltage 25V
Isolation Voltage: 3.5KV
Mach3 Port Position: P1 Port
USB interface: Complies with USB2.0 standard
- Weigtht:0.7KG
Features:
- Fully support all Mach3 version
- Support save data when power off.
- Support spindle speed feedback
- Support 3 meter USB cable
- Supports Up 6-axis
- Maximum step-pulse frequency is 2000KHz.Status indicator LED can be useful to show the USB
- Connection,and working status by flashing.
- 16 general-purpose input,8 output has speed function,the spindle actural speed Mach3
- Interface in real-time display
- All IO-port isolation,interference,stable performance
- Ful support for USB hot-swappable,the card is Monitoring USB connection status at any time,
Key feature:
1.Standard usb device and work at all windows with usb hot plug.
2.The card state is monitored.
3.Support 6 axis to motion at the same time.
4.Step Pulse frequncy Up to 2000khz，support servo and step motor driver.
5.The usb state indication with led
6.All io is isolated,anti-noise and stable performance
7.Spindle control with PWM and step/pulse
8.Aluminum shell,shield the interference.
9.Speed index function.
10.Power off and continue function
Software installation:
- First,install Mach3 software to your PC.
- Second,copy your driver into Mach3. Check readme file.
- Check our wiring for reference,connect our card to your machine correctly.
- Connect your PC to our card by using network cable.
- After these steps,you can open your Mach3 software for operating.
Please take a look at Mach3 software parameters setting,steps per and so on in the printed manual of our packing box for reference.
Package List:
- 1 x Set of Motion Card
Note:
- Other items pictured are not included in the package, for demonstration purposes only. Thank you for your understanding!
