Upgraded ALTERA FPGA Development Board NIOS CYCLONE IV EP4CE15 with Downloader

Upgraded ALTERA FPGA Development Board NIOS CYCLONE IV EP4CE15 with Downloader

Parameters:
- FPGA: EP4CE15F17C8 ( 15K logitic unit516K RAM)
- SDRAM: H57V2562GTR, 256Mbit (16M*16bit)
- PARALLEL FLASH: AM29LV320, 32Mbit (4M*8bit)
- SRAM: IS61LV25616, 4Mbit (256K*16bit)
- SERIAL FLASH: M25P64, 64Mbit
- Network Interface: ENC28J60, 10M network chip can make network data communication
- USB Interface: CH376, support USB host mode and USB slave mode
- Camera Interface: OV7670 CMOS camera
- TFT Interface: 7 inch TFT LCD Screen AT070TN83 800*480
- Serial Port: MAX3232; seriel port chip
- RTC: DS1302;support the real-time time for year,month and week
- EEPROM: 24LC04, 4K bit=512*8bit
- Dot Matrix Screen: 128*64
- Crystal: active crystal is 50MHz and 40 MHz
- VGA: support 64K color display
- PS/2: support PS/2 keyboard and mouse
- Buzzer: active buzzer
- Digital Tube: 6bit high bright digital tube, dynamic model
- SD Card: support SPI model
- Key: 5 channels independent key

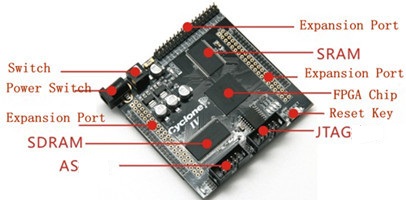

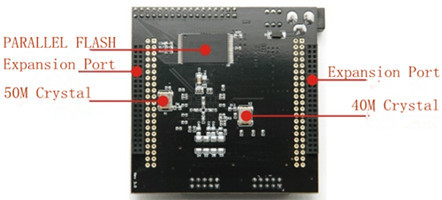

Core board:

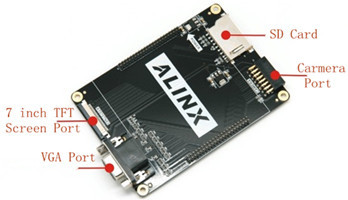

Expansion board I:

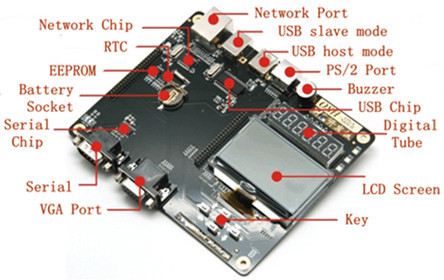

Expansion board II:

Note: The core board has been assembled to the expansion board.

Package included:
- 1* Expansion Board I
- 1* Core Board
- 1* Expansion Board II
- 1* 5V power supply
- 1* USB Downloader
- 1* Serial Line
- 1* Transparent Protective Plate
