Upgraded B205-MINI 70MHz-6GHz SDR Radio Board Software Defined Radio Compatible with USRP B205-MINI
Description:
On the basis of the original design, B205-MINI improves the performance of USB3.0, using high-performance 150,000 logic gate LX150 FPGA (for XILINX) and 8-layer PCB. The upgraded product is fully compatible with the driver and firmware of USRP B205-MINI.
In the receiving test of CW modulated signal, the receiving sensitivity of frequencies within 2G is -122dbm at 6DB SNR. The receiving sensitivity threshold of 4G is -118dbm. The receiving threshold is -115dbm at frequency above 4G.
Transmit CW modulation signal, within 3G, the maximum transmit power is greater than 10DBM. The typical value of 1GHz is 18dbm, and the typical value of 2GHz is 15dbm. Typical maximum value is 13dbm at 4.5GHz and typical maximum value is 11dbm at 5.5GHz.
Features:
- RF operating range 70MHz-6GHz
- Compatible with USRP UHD b2xx driver
- Support for GNU-Radio, LabView, OAI, and SrsLTE
- USB 3.0 high speed interface
- AD9361 12bit ADC/DAC
- CYUSB3014 High-speed USB interface chip for CYPRESS
- For Xlinux Spartan6 XC6SLX150 csg484 FPGA
- Up to 56MHz of instantaneous bandwidth in 1x 1
- 1 TX & 1 RX, half duplex or full duplex
- For Xilinx JTAG interface
- FX3 JTAG interface

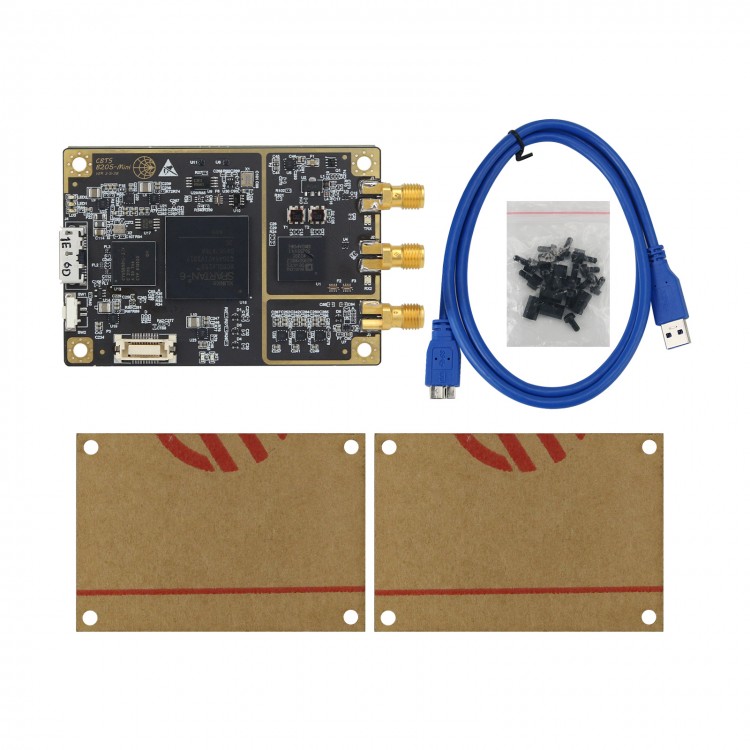

Package Included:
- 1 x SDR Board
