Upgraded CUAV Pixhack 2.8.3 Version Flight Control Combo for Quadcopter Multicopter FPV

Upgraded CUAV Pixhack 2.8.3 Version Flight Control Combo for Quadcopter Multicopter FPV

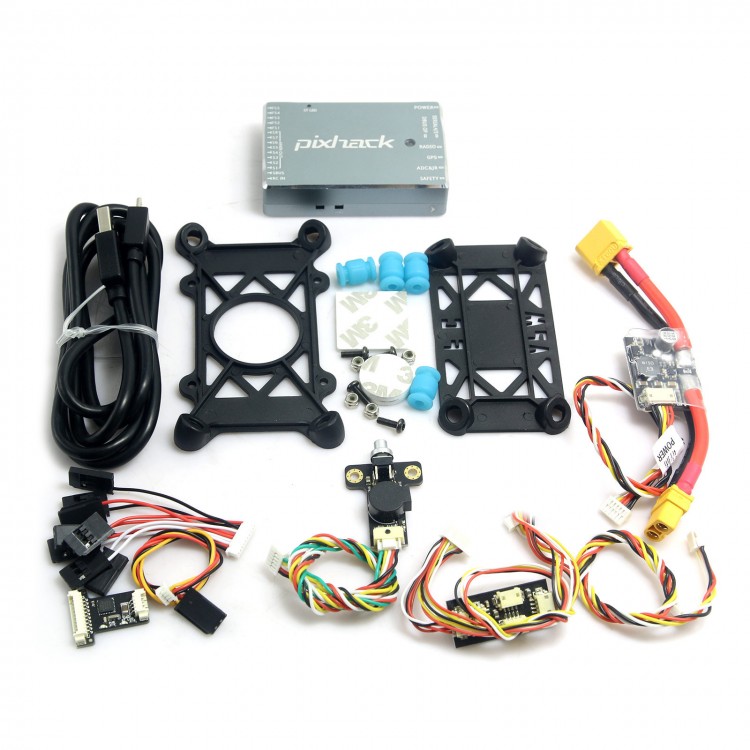

Pixhack Reservation Standard Combo :
- Pixhack flight control x 1
- USB Extended small plate x 1
- 8CH PPM encoder x 1
- Voltage current sensor (not welded) x 1
- 8G samsung memory card x 1
- Buzzer + unlock switch expansion board x 1
- Standard digital interface line x 1
- USB cable x 1
- Vibration damper plate x 1
- Color: Black/gray/gold (optional,pls note the one you want, or the black will be delivered by default)

Processor:
- 32 bits 2M flash memory Cortex M4 STM32F427, with hardware floating-point processing unit, main frequency: 168MHZ, 256K RAM
- 32 bit STM32F103 backup co processor

Built in sensor:
Pixhack adopts IMU seperation design, built in universal shock abosorption
- L3G20: 3 axis digital 16bits gyroscope
- LSM303D: 3 axis 14bits acceleration/ magnetometer
- MS5611: high precision barometer

Working voltage and environment demand
- Working temp:   -5deg C to +55 degC
- PM sensor:  working voltage   2-6S
- PM sensor output voltage:   5.4V   3A
- PWM OUT output voltage: max 9V (support high voltage servo, original Pixhawk do not support power supply higher than 5.5V)
- Two channels of extra power supply (PM and PWM OUT port), PM port is superior to power supply, once it has errors, it will automatically switch to PWM OUT port for power supplying

Size:
- Main control size: 68mmX44mmX15MM
- Weight: 68g

Data interface:
- 5PCS UART:one compatible high voltage, two with hardware flow control
- 1PCS CAN
- DSM/ DSM2/ DSM-X satellite receiver compatible with input/
- Futaba SBUS compatible with input and output
- PPM signal input
- RSSI (PWM or voltage) input
- I2C agreement device expansion
- SPI interface is reserved
- 3.3 and 6.6V ADC input
- External MICRO USB interface
- 13PCS PWM/ servo output
- Buzzer and unlock button

External device
- Support firmware multirotor helicopter car boat firmware
- Support receiver type: S-Bus, DSM2, PPM
- Note: if it's normal PWM receiver, it needs PPM encoder
- Recommended battery type: 2S-6S lipo battery
- System configuration demand: Windows XP SP3 / 7 /8 (32 olr 64 bits)
- Support connect external CUAV product
- MINIM OSD, 3DR telemetry, XTEND telemetry, RTB BOX telemetry, MAAT tracking antenna, optic flow sensor

Pixhack has the same hardware structure with PIX, fully compatible with pixhawk code
