Upgraded Mini TS5813S 5.8G 40CH 25mW Mini Wireless Audio Video Transmitter Tx for FPV QAV250 DJI Quadcopter

Availability: In stock, usually dispatched in 1 business day

  • Price:$14.69
  • Price in reward points: 147 Reward Points: 1
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $14.40 $14.10 $13.66 $13.07 Contact US
Quantity:

Upgraded Mini TS5813S 5.8G 40CH 25mW Mini Wireless Audio Video Transmitter Tx for FPV QAV250 DJI Quadcopter

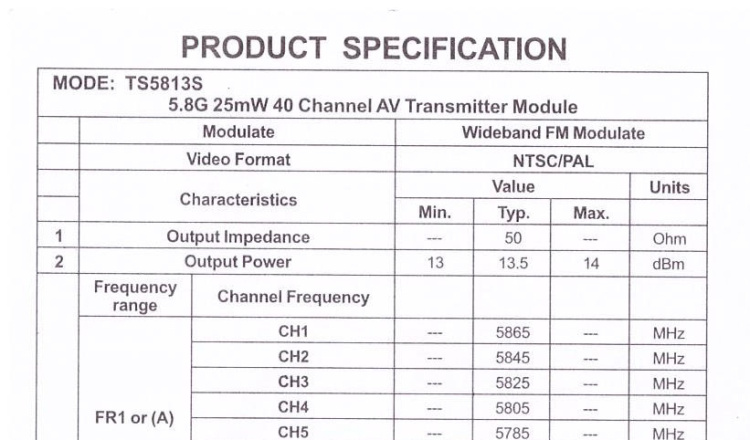

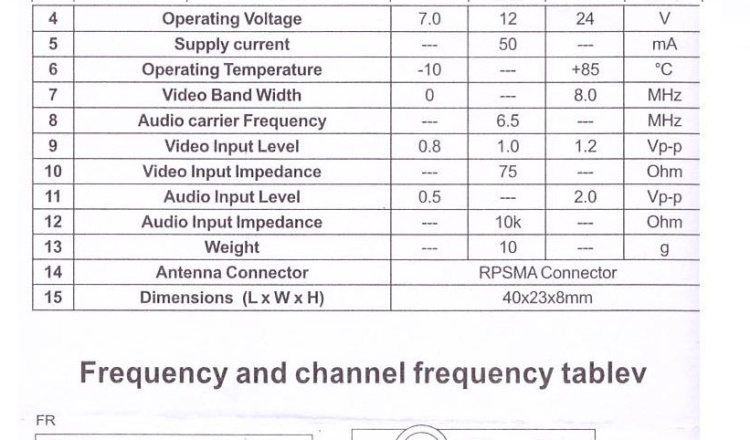

Specification:

- Operating voltage: 7.0V-24V
- Supply current: 50mA
- Video bandwidth: 8.0MHz
- Audior carrier frequency: 6.5MHz
- Video input level: 0.8-1.2 Vp-p
- Video input impedance: 75 Ohm
- Aduio input level: 0.5~2.0 Vp-p
- Audio input impedance: 10K ohm
- Weight: 10g
- Antenna connector: SMA connector
- Dimension: 40*23*8mm
- Transmitter: RP-SAM jack
- Antenna: RP-SMA plug

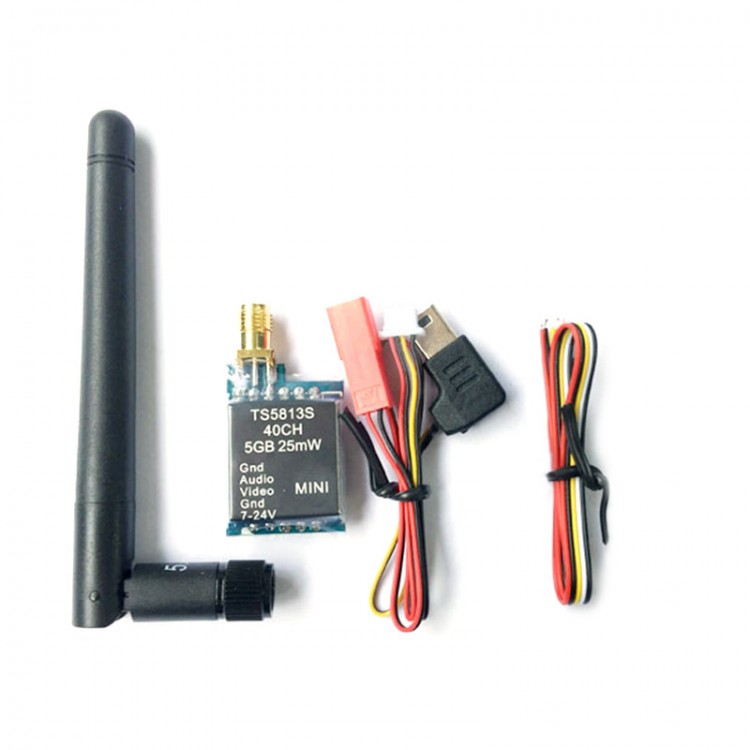

Package included:
- 1 x Transmitter
- 1 x Antenna
- Cables
