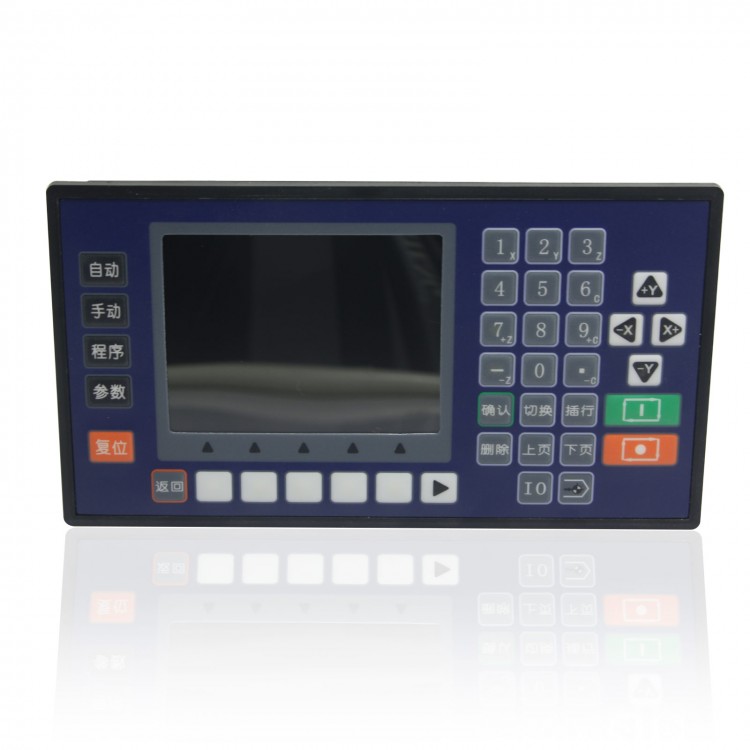

Upgraded TC55V 3.5inch Programmable Single Axis Multi-Rotor Motion Controller for Stepper Motor Servo Motor CNC

Availability: In stock, usually dispatched in 1 business day

  • Price:$120.20
  • Price in reward points: 1202 Reward Points: 12
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $117.80 $115.39 $111.79 $106.98 Contact US
Quantity:

Upgraded TC55V 3.5inch Programmable Single Axis Multi-Rotor Motion Controller for Stepper Motor Servo Motor CNC

Description:

TC55V is the upgraded version of TC55 with 3.5inch screen. It supports 485 communication and Chinese-English Switch, encoder input, PC dowmload. The system has high reliability, high accuracy, low noise, and simple operation.

Function:
- Automatically execute:Actual running, Dry running, Single-step execution, Terminate program, Start and Pause function
- Manual operation:high speed, Jog operation, Back to program zero, manual output
- Program: Editing, Newly build,save
- Parameter:Control, speed,user, password
- Exterior Manual Operation: control motor clockwise and counter-clockwise spinning, Start, Pause, Alert and Emergency Stop etc.
- 23*command, including 6 protocal commans that can be programmed with PLC
- USB: Suppy power with USB cable
- Isolation of IO port: With input and output port that isolated from the system
- Power off protection

System resource:
- 3.5 inch color LCD , resolution 320*240.
- Contact button array (38 keys).
- Special motion control chip, 4 axis differential pulse output (signal output: direction + direction - pulse + pulse).
- Input / output (16CH optical electrical isolation 24V input, 8CH 24V output optical electrical isolation, single channel 500mA rating).
- 485 interface, can be mixed with PLC programming, can also be customized plane.
- 24V dual power isolated power supply.
- Encoder interface
- USB interface, power supply to system, for PC software or download pictures.
- Procedures for the 480 lines
- Connected with external IO expansion board

Technical Specifications:
- Minimum data unit: 0.001 mm
- Maximum data size: ± 99999.999mm
- Maximum Speed: 9000mm/min (pulse is 0.001mm)
- Maximum pulse output frequency 150KHz
- 1 Axis
- Electric Gear: numerator :1-99999 denominator: 1-99999
- System main functions are automatic, manual, program editing, system parameters, self-check, settings, etc.
- Outside Size  172×94×48mm
- Installing Size: 162×84mm,Front Panel: 4mm

Package included:
- 1 x Motion Controller
