Upgraded TS832S 40CH 600mW 5.8G FPV Wireless Audio Video AV Transmitter TX for Multicopter

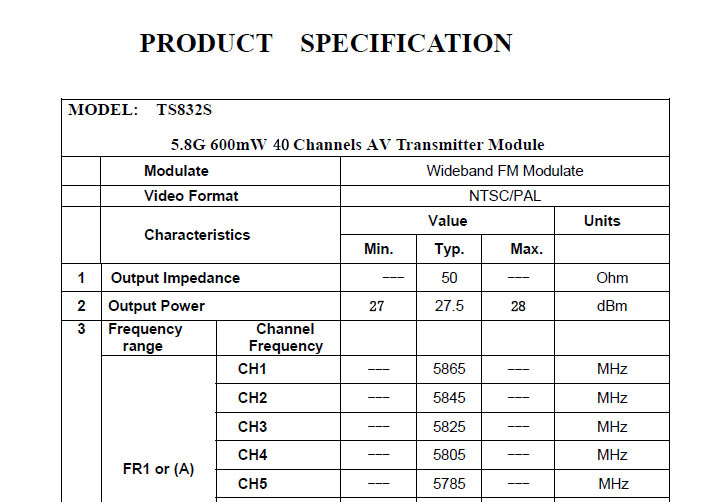

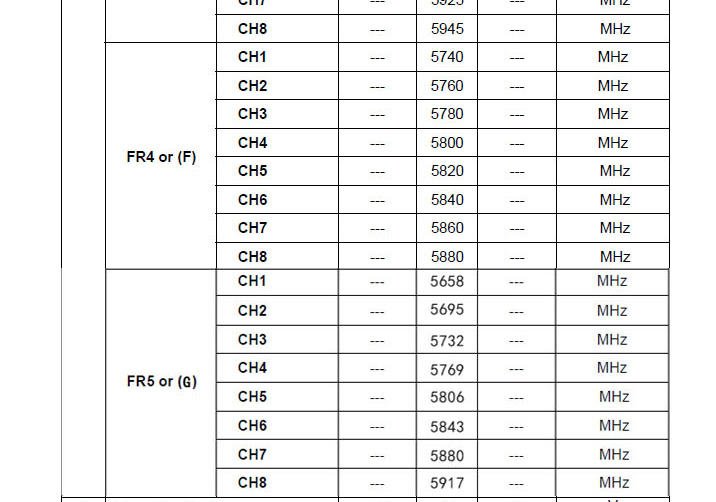

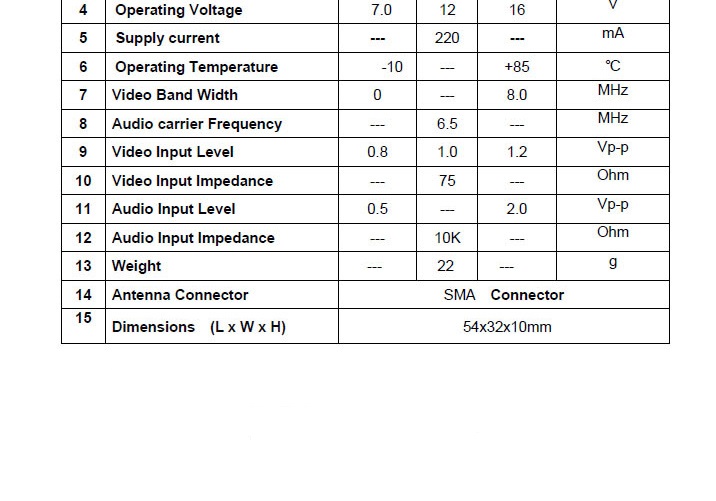

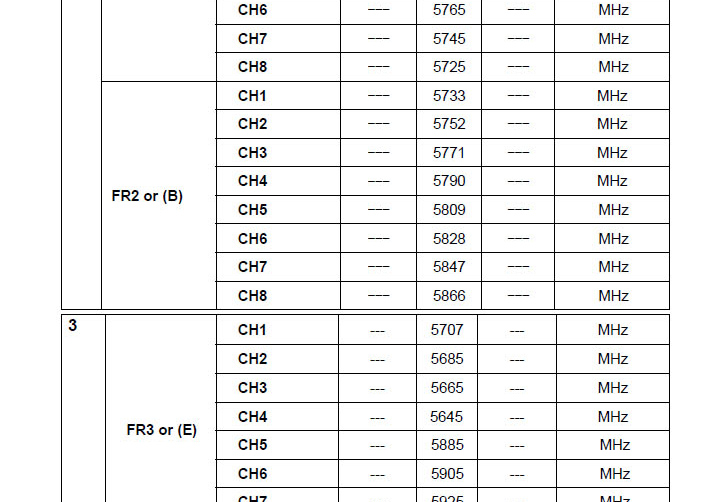

Specification:
- Item name: TS832S 5.8G 600mw transmitter
- Compatible with the old 8CH receiver
- Channel:40CH
- Antenna Gain: 2db
- Frequency: 5.8G
- Transmitting Power: 600mAW
- Power Input: 7.4-16V (3S Lipo suggested)
- Video Format: NTSC / PAL Auto
- Working Current: 220mA at 12V
- Audio Bandwidth : 6.5M
- Video Bandwidth: 8M
- Weight: about 22g
- Dimension: 54x 32x 10mm(excluding antenna)
- Connector: transmitter module side RP-SMA jack, antenna RP-SMA plug
Features:
- 40 channels choice to get the best transmitting quality.
- Compatible with A,B,E , F and R frequency bands
- Smaller size with lighter weight.
- 40 CH compatible to all FPV 5.8g receivers.
- 5.8G 600mW 40 Channels AV wireless FPV transmitter
- 600mW transmitter power assure 5KM distance in open area, 5-8 KM is available if work with the bigger gain antenna.
Package Included:
- 1 x Eachine TS832S transmitter
- 1 x Cable
- 1 x Antenna
