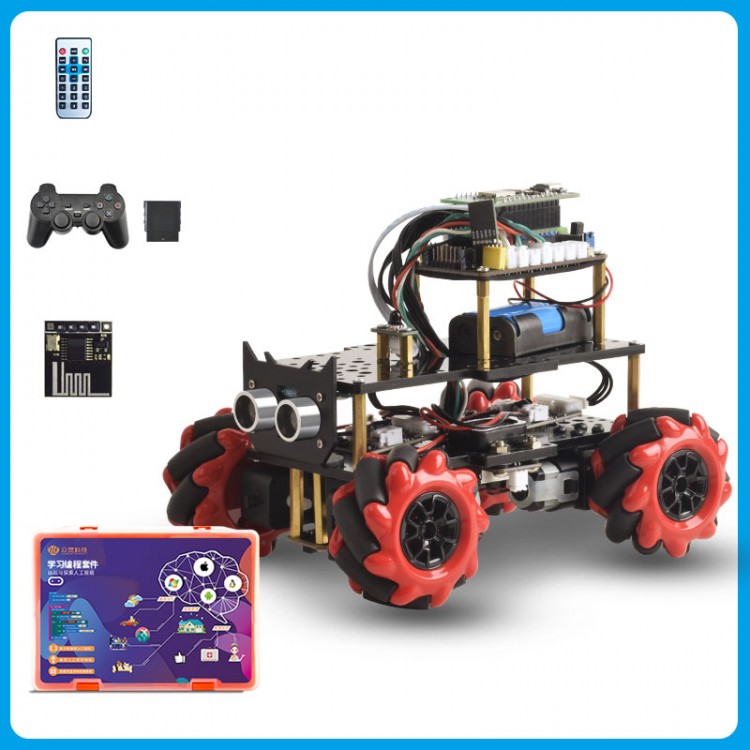

Upgraded Version Intelligent Programming Car Mecanum Wheel with Programming Learning Kit for Arduino

Upgraded Version Intelligent Programming Car Mecanum Wheel with Programming Learning Kit for Arduino

Function:
- Tracking and obstacle avoidance
- Voice control
- WiFi control
- Picture feedback

Description:
- Based on the four-wheel drive for Mecanum wheel car, it supports translation and in situ rotation. In terms of car hardware, it provides more options and scalability, with voice interaction control, which can better enhance interactivity and enhance learning pleasure. The WiFi camera module can achieve remote control of the car and transmit real-time images through wireless networks. It can also support voice intercom.
- Application: color block detection, color recognition, label detection, deep learning, object recognition, line detection, card recognition, face recognition, movement detection.

Features:
- Support visual recognition expansion
- Equipped with a dual tracking module (infrared), providing tracking codes and information.
- By programming and controlling the ultrasonic sensor to detect obstacles forward, the car will be controlled to turn after reaching a certain distance from the obstacles.
- Maintain a fixed distance from the object in front of the car to move forward or backward.
- By equipped with a WiFi camera module, the mobile app can be used for WiFi control of the car, supporting cross city control, and enabling real-time viewing of the car from the first perspective through the phone.
- Rich controlling method: infrared remote control/handle control/voice control
- Support for left and right translation, more suitable for racing, the car adopts for mecanum wheels, which can achieve forward, lateral, oblique, rotating, and other combinations of motion, providing a stronger sense of experience and flexible avoidance of obstacles.

Specification:
- Size: 150 x 140 x 200mm
- Working voltage: 5V
- Motor: for TT motor
- Supersonic: SR supersonic module
- Detection distance: 2 - 400cm
- Motor drive: dual channel bus drive module x 2
- Bluetooth: 5.2
- Tracking: dual channel infrared tracking module
- Maximum remote control distance: 15m
- Handle: for PS2 remote control handle (or others)
- Image transmission: WiFi camera module
- Connection method: cellphone direct connection (about 10m); network connection (without distance limit)

Core Board Specification:
For Arduino core board:
- Main control chip: for ATMega328P-AU
- Main frequency: 16M
- USB interface: Micro-USB
- Serial port chip: CH340
- Module size: 20 x 40mm
- Power input: 4.5 - 5.5V
- Characteristic: All IO ports are led out with 16pin 2.54 pins, and the onboard serial port chip can directly download the communication onboard 8M storage chip for robot data storage. There is an ISP download interface left, which can be used to scan boot files.

For STC51 Board Specification:
- Main control chip: lap15W4K61S4
- USB interface: Micro-USB
- Serial port chip: CH340
- Power input: 4.5 - 5.5V
- Module size: 20 x 40mm
- Characteristic: All IO ports are led out with 2.54pins; onboard serial port chip, which can directly download for communication; onboard 8M storage chip for robot data storage; supports onboard cold start downloads.

For STM32 Board Specification:
- Main control chip: for STM32F103C8T6
- Main frequency: external 8M, capable of doubling to 72M
- USB interface: Micro-USB
- Serial port chip: CH340
- Power input: 4.5 - 5.5V
- Module size: 20 x 40mm
- Characteristic: All IO ports are led out with 2.54pins; onboard serial port chip, which can directly download for communication; onboard 8M storage chip for robot data storage.

For ESP32 Board Specification:
- Processor: for Xtensa 32-bit LX6 MCU
- Crystal Oscillator: 40MHz
- Sleep current: <5mA
- UART communication: for IO16 (RX)  IO17 (TX)
- SPI communication: IO5 IO23 IO19 IO18
- Output power: 22dBm
- Transmission speed rate: 150Mbps
- I2C communication: for SDA (IO21), SCL (IO21) pin
- Characteristic: it has the characteristics of scalability and adaptability. This chip has leading technical specifications and performs well in high integration, unlimited transmission distance, power consumption, and network connectivity.

Package Included:
- 1 x Host
- 1 x Infrared Remote Control
- 1 x Handle Receiving and Transmitting Module
- 1 x Bluetooth Module
- 1 x Programming Learning Kit (40+ Module)
