URTIS Programmable DC Series Motor Controller Assemblage 1204M-4201 24V 36V

URTIS Programmable DC Series Motor Controller Assemblage 1204M-4201 24V 36V

Note:The buyer should confirm with the seller the battery system voltage(24V/36V) and the throttle type (0-5kΩ, 5k-0Ω or 0-5V).Please leave us a message about the one you need.Thank you.

Product Description:
- Model: 1204M-4201
- 24V / 36V - 275A, with Foot Pedal (throttle) and Installation Kit
- Voltage:24V/36V,optional.
- Accelerator type:0-5v;0-5k;5k-0,optional.

Specifications:
- Full controlling set for 24V or 36V DC Series Motor
- Proposed motor power rate: 2.3 - 3.6 kW
- Foot pedal accelerator (throttle), pre-wired for assemblage
- Simple plug-in connctors (1204M / 05M Controller Assemblage Connectors' Definition (PDF format))
- Easy to install (1204M / 05M Controller Assemblage Installation Instruction (PDF format))
- Reinforced carton package, safe for international delivery

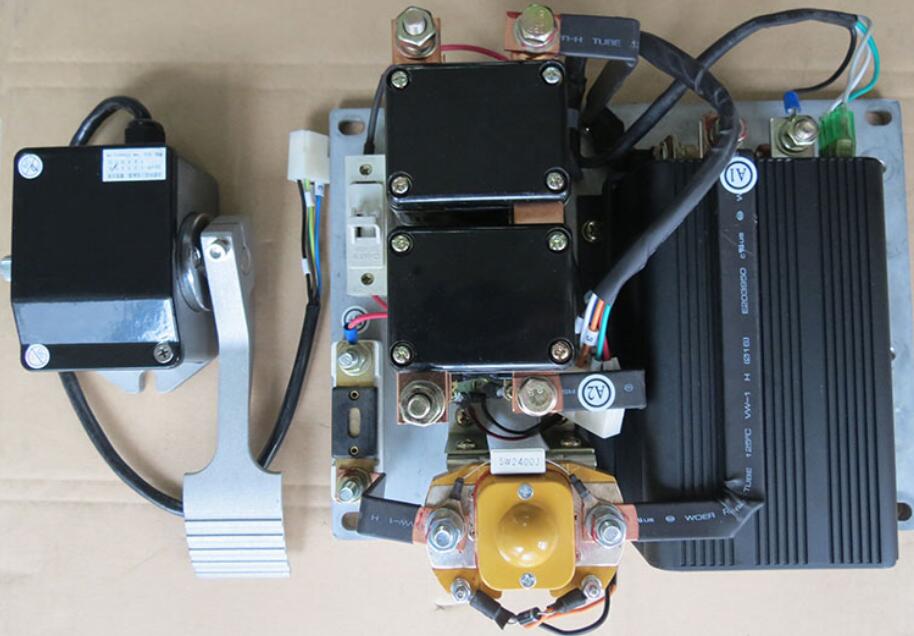

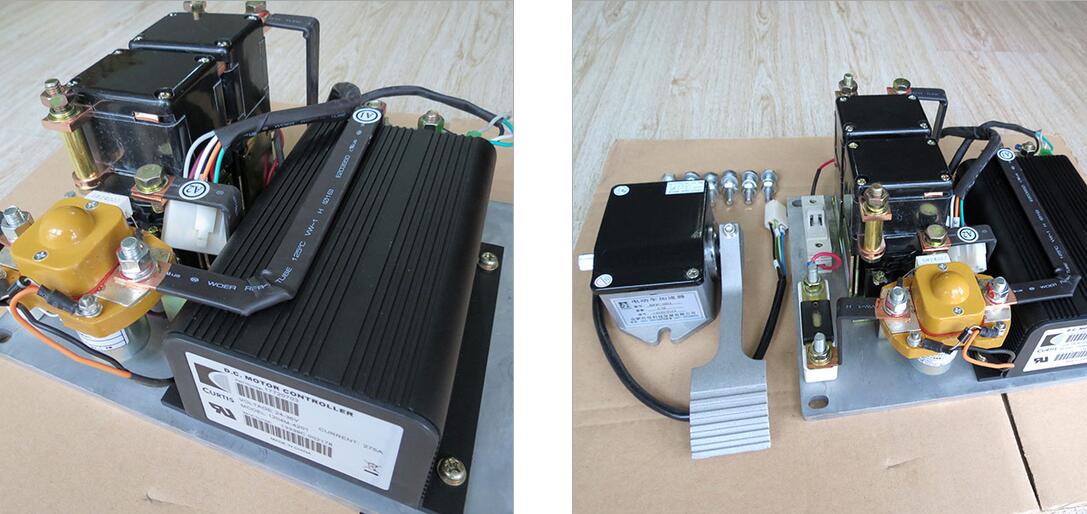

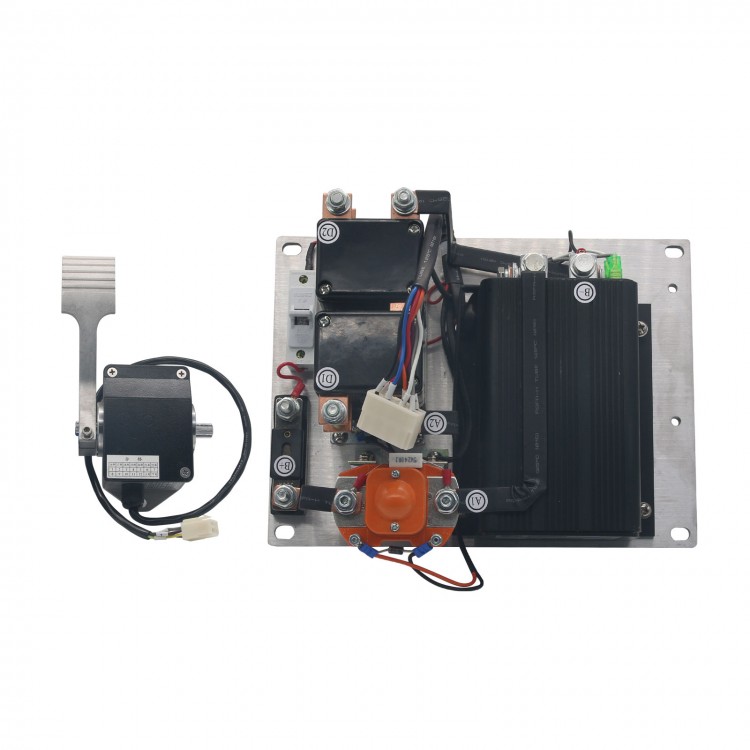

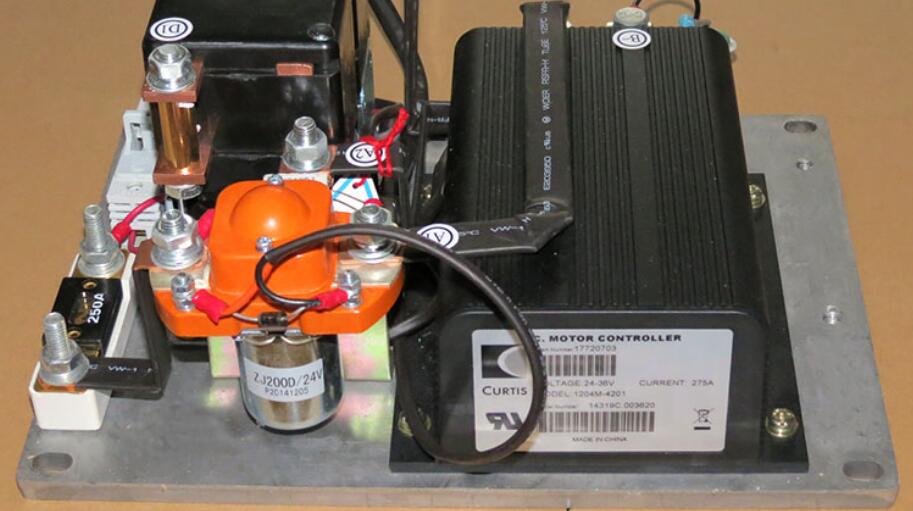

This 1204M-4201 controller assemblage is a completed electric vehicle DC Series Motor control system, with components mounted on a heat-sink aluminium alloy installation plate. The assemblage includes:
controller
main contactor
forward / reverse contactor
fuses
wiring
heat-sink aluminium alloy installation plate
foot pedal accelerator (throttle)
plug-in connectors
installation (bolts, washes and nuts) kit Included

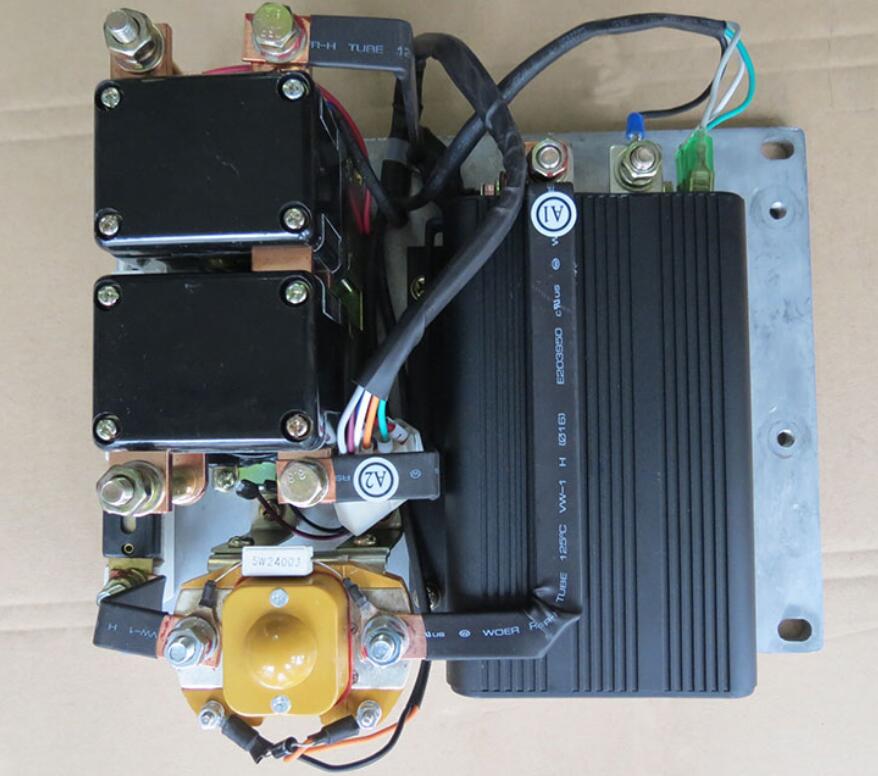

There are small round labels on the assemblage, indicating the wire connecting points: B+, B-, A1, A2, D1 (F1 or S1) and D2 (F2 or S2).

1204M/05M Controller Assemblage Connectors' Definition:Click here

1204M/05M Controller Assemblage Installation Instruction:Click here

Overview:
- CURTIS 1204M programmable series motor controllers are designed to provide smooth, silent, cost-effective control of motor speed and torque. 1204M controllers are updated versions of the popular 1204 controllers, with the added functionality of being programmable—via the CURTIS Model 1313-4431 Handheld Programmer or 1314 PC Programming Station. This means the controllers can be tailored to the needs of specific applications. In addition to configuration flexibility, use of the programmer offers diagnostic and test capability.
- CURTIS 1204M controllers are the ideal solution for a variety of electric vehicle applications, including industrial trucks, personnel carriers, material handing vehicles, golf cars, etc.

Wiring Diagram:In this assemblage, the J5 terminal of new 1204M controllers is not activated. The controller wiring is same to the old 1204M controllers without J5 terminal.

Diagram:Click here

1204M / 1205M controller manual:Click here

KEY FEATURES:
- CURTIS Model: 1204M-4201
- Norminal Battery Voltage (Volts): 36V (default setting) or 24V
- 2 Minute Current Rating (amps): 275
- 5 Minute Current Rating (amps): 200
- 1 Hour Current Rating (amps): 125
- Plug Braking (A2 Busbar): Yes
- Assemblage Net Weight: 7.9 kg
- Package Weight: 10.5 kg (including the foot pedal throttle)

Features included:
- High-frequency switching and ultra-low voltage drops provide high efficiency and silent operation.

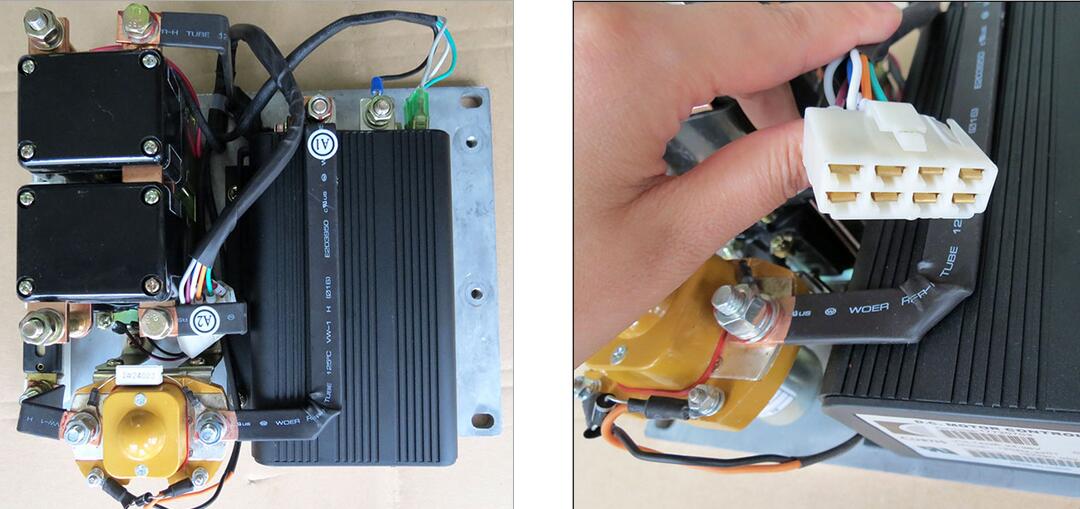

- Simple mounting and wiring with push-on connectors for control signals and plated solid copper buses for power connections.
- Compatible with either a two-wire potentiometer or a voltage throttle.
- Throttle fault protection circuitry disables controller if throttle wires become open.
- High pedal disable feature prevents controller operation if key is turned on while throttle is applied.
- Plug braking diode internal to controller.
- Thermal protection and compensation circuit provides constant current limit over operating range and during under/over temperature cutback; no sudden loss of power under any thermal conditions.
    Undervoltage cutback function protects against low battery voltage, including low voltage caused by external loads.
- Easily programmable through the CURTIS Model 1313-4431 Handheld Programmer or 1314 PC Programming Station.
- Rugged anodized aluminum extruded housing meets IP65 environmental sealing standards for use in harsh environments.

Installation Dimensions:

Package List:
- 1x 1204M-4201 DC Series Motor Controller Assemblage


Note: If throttles are needed, please contact us for details and prices. Thank you!
