| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $1,325.24 | $1,298.20 | $1,257.63 | $1,203.54 | Contact US |

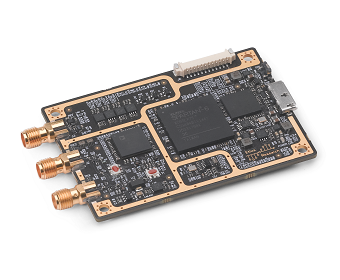

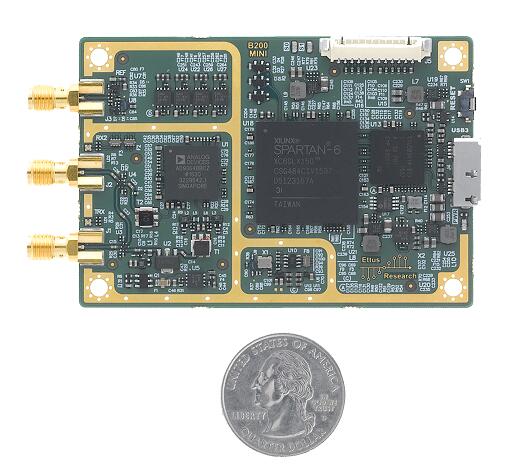

US Ettus USRP B200mini Software Defined Radio
Main Features:
- Highly integrated, RF range from 70 MHz - 6 GHz
- Support for maximum real-time bandwidth 56MHz, 61.44MS/s benchmark sampling rate
- Support high speed USB 3 connection
- 10 MHz reference or PPS sync trigger
- 5.0cm x 8.4cm size
- Open source UHD supports multiple frameworks
- Users can write Spartan 6 XC6SLX75 FPGA

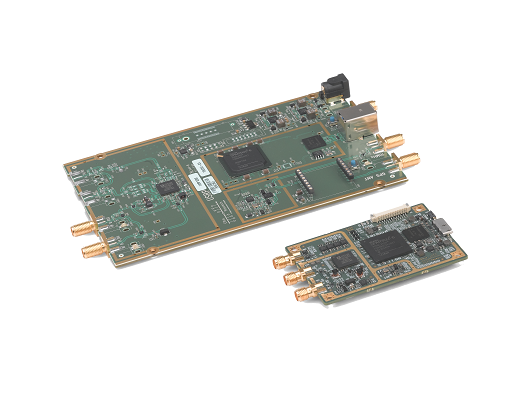

Comparison with USRP B200:
- B200mini series size smaller, only bank card size;
- B200mini series device interface for the Micro USB3.0 interface, and the B200 device interface for the Standard-B USB 3 interface;
- B200mini series no power interface, only through the USB interface power supply;
- The B200mini series does not have a GPSDO installation interface and is unable to use GPSDO accessories;
- The B200mini series has only one SMA interface for the input of the PPS trigger signal or the 10MHz reference signal,while the two signal input ports of the B200 are separated;
- The RF characteristics of the B200mini series and B200 are exactly the same;
- B200mini series and B200 are compatible with the UHD driver, using the same API programming interface.

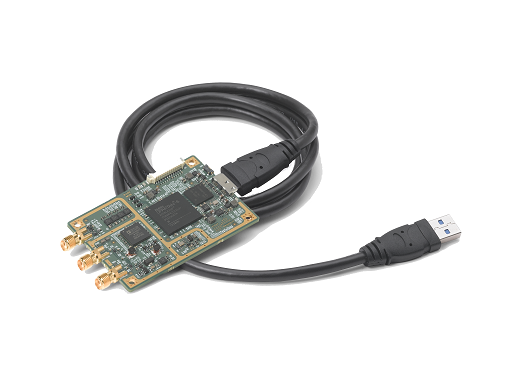

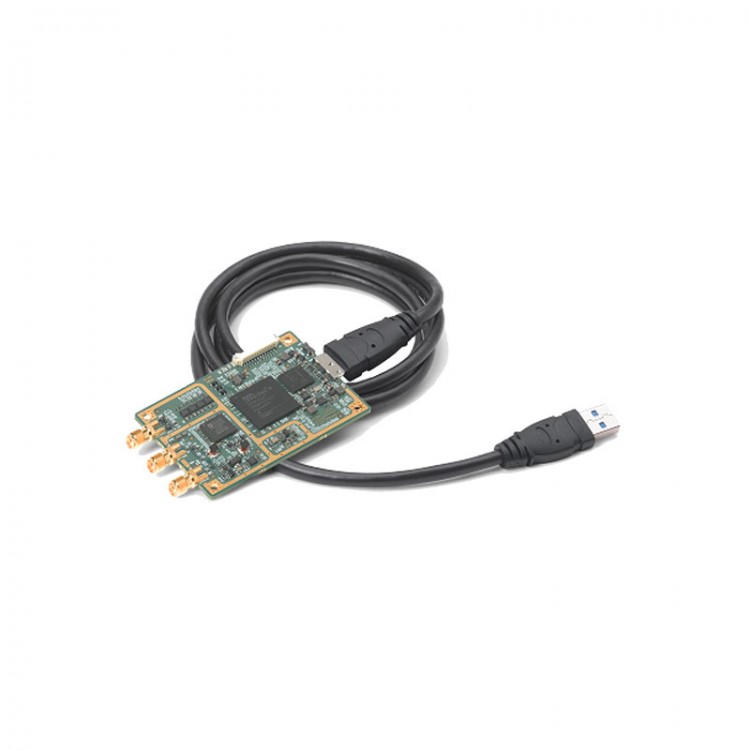

Package List:
- 1 x Ettus USRP B200mini
- 1 x USB
