USA SELLER Hobbywing 3A UBEC 5V 6V max 5A Switch-Mode Lowest RF Noise BEC
Description

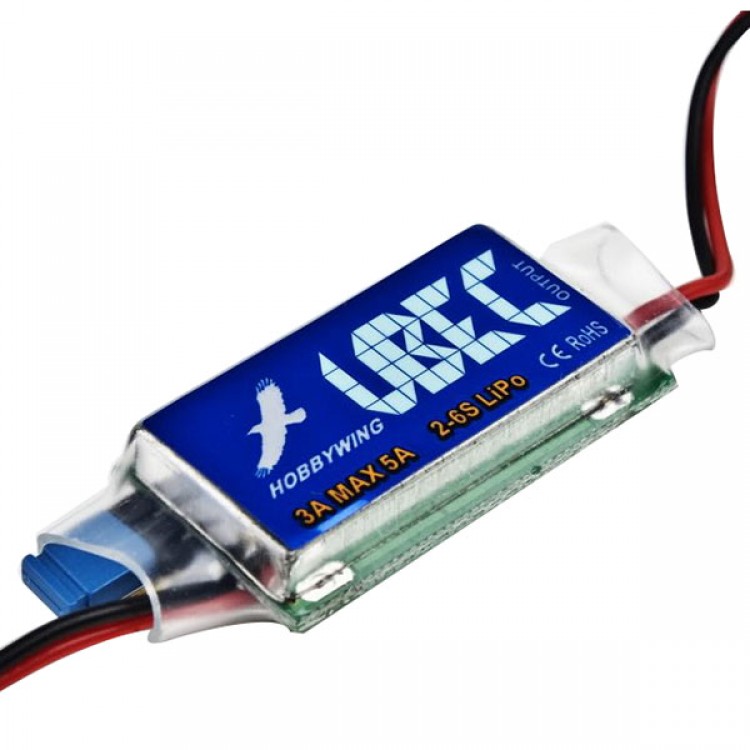

- Hobbywing 3A UBEC 5V or 6V output:
- The 3A-UBEC is a switch-mode DC-DC regulator supplied with a 2-6 cells lithium battery pack (or 5-18 cells NiMh /NiCd battery ) and it outputs a consistent safe voltage for your receiver, gyro and servos. It will work perfectly for your RC Plane, Helicopter, or any other device which needs a reliable current at a specific voltage.
- Compared with the linear mode UBEC, the overall efficiency of the switch-mode UBEC is higher.
Features:
- Designed with an advanced switch mode DC-DC regulator IC.
- The output is powerful even working with 4 to 6 cells Lipo battery.
- Battery polarity reversal protection.
- A metal shield covers almost all the electronic components, and a specially made filter is attached with the output wires to significantly reduce the electromagnetic interference.
- The working status is shown by an indicator (LED), lights when the output is in normal range.
Specifications:
- Brand name: Hobbywing
- Item: 3A-UBEC
- Output Voltage: 5V or 6V (Changeable with an output-voltage select switch )
- Continuous output current: 3 Amps
- Input: 5.5V-26V (2-6 cells lithium battery pack or 5-18 cells NiMh /NiCd battery) Size: 42mm (L) * 24mm (W) * 11mm (H)
- Weight: 11g
Package includes:
- 100% Brand New
- 1 x Hobbywing 3A UBEC
- 1 x Instruction Sheet
