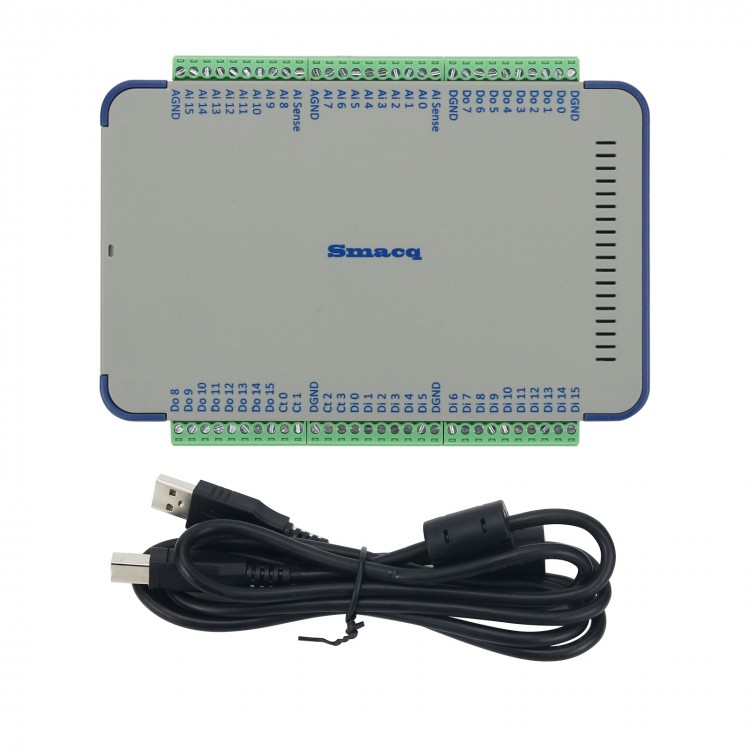

USB-1252A Data Acquisition Card USB Data Acquisition 16CH Analog Input 16CH Digital Input & Output

USB-1252A Data Acquisition Card USB Data Acquisition 16CH Analog Input 16CH Digital Input & Output

Description:
USB-1000 series data acquisition card is basically based on high-speed USB read and write technology to achieve high-bandwidth data transmission, and the maximum sampling rate of 500kSa/s meets the needs of data acquisition. The two most commonly used ranges are set for analog input, 0-10V and ±5V. In addition, 4 counter channels and 16 DI and 16 DO are also configured.

Features:
- Maximum sampling rate 500kSa/s
- 12bit analog input resolution
- 16 channels for single-ended input, 8 channels for differential analog input
- 16 digital input channels, 16 digital output channels
- Application areas: sensor data acquisition, control system and automation, laboratory research and application
- 0 to 10V and ±5V range
- FIFO buffer, 16K sampling points onboard
- 4-channel 32-bit counter: counting, period/frequency, positive pulse width, negative pulse width
- Optional voltage acquisition and current acquisition
- Free data acquisition software. The universal data acquisition software for DAQ-Sensor can complete the basic parameter configuration of the acquisition card without any programming, and quickly start data acquisition tasks. For the data collection of sensor output, there are functions such as sensor labeling and sensor unit conversion in the configuration. The data acquisition results are displayed in real time in the form of waveforms. The data has data storage and playback functions, and the stored data can be converted into csv format to facilitate subsequent data analysis and processing.
- Development support software: support development for LabVIEW and provide a complete development package. Each function of the data acquisition card can directly call the corresponding VI to realize its function. And the open sample acquisition program for LabVIEW will become a quick reference for designing data acquisition applications. Support the development of for VisualStudio and Matlab, provide a function dynamic link library containing all the functions of the card, detailed documentation and sample programs in multiple languages. Support for VisualStudio, LabVIEW, Matlab to facilitate independent development of automated test systems.

10Pin Wiring Terminals:
- Contact material: phosphor bronze/nickel plated
- Square buckle: brass/nickel plated
- Rated voltage/current: 300V/8A

USB Data Cable:
- 1.5M
- Double magnetic rings, strong anti-interference

Parameters:
- Number of analog input channels: 16 channels single-ended
- Simultaneous sampling: No
- Analog input resolution: 12-bit
- Converter type: successive approximation type
- Sampling rate: single-channel acquisition: up to 500kS/s; multi-channel scanning: up to 200kS/s
- Timing resolution: 20ns
- Analog input FIFO buffer: 16k sampling points
- Range: 0 to 10V or -5 to 5V, configurable through software
- Safety voltage: ±15V, input voltage exceeding the safety voltage will damage the data acquisition card
- Input coupling mode: DC
- Trigger mode: software trigger, digital input trigger
- System Noise:
* NRSE 0~10V range: 0.15mVrms
* NRSE ±5V range: 0.3mVrms
* DIFF 0~10V range: 0.2mVrms
* DIFF ±5V range: 0.4mVrms
- Absolute Accuracy:
* NRSE 0~10V range: 2.8mV
* NRSE ±5V range: 3mV
* DIFF 0~10V range: 3mV
* DIFF ±5V range: 4mV
- Number of digital output channels: 16
- Output high level voltage: 3.0~3.4V
- Output low-level voltage: 0~0.1V
- Number of digital input channels: 16
- Number of counters: 4
- Resolution: 32-bit
- Counter measurement: edge counting
- Counting direction: counting up
- USB interface specification: USB 2.0 high-speed interface (480Mb/s)
- USB interface connector: USB series B type connector
- USB bus power supply: 4.75~5.25VDC

Package Included:
- 1 x Set of Data Acquisition Module
