Description:
- This is servo controller board with 24 channel. Up to 24 servo motors can be controlled at the same time, either by using a software on a PC, or UART communication ( TTL serial port) of MCU (51, AVR, ARM, FPGA, PIC, etc.) to send commands to control the steering.You can also download instructions to the servo motor controller for offline operation.Wireless device compatible, it can also being set by the program we provided
More powerful MCU
Higher controlling accuracy
Offline operation function
Identify baud rate automatically

Feature:
- Controlling MCU power supply: 6.5~12 V or 3.5~5.5V. (USB can be used to power the chip on servos board.And it can be chosen automatically.With the USB reverse protection,it can protect your computer from been hurted by the reverse USB.)
- Servos power supply: DC (depends on the motors, generally 5V DC)
- Control channels: 24. (can be controlled at the same time and the accuracy can be adjusted)
- Communication Input: USB or UART (TTL or USART). (The Bluetooth or some other wireless module can be used to make the controlling)
- Signal Output: PWM (Accuracy 1us).
- Servo motor resolution: 1us, 0.09 degrees.
- Baud Rate: 9600,19200,28400,57600,115200,128000(recognized automatically)
- Servo motors supported: Futaba, Hitec or some other Servos Motor controlled by PWM.
- Dimensions: 63.5mm x 43.5mm x 1.6mm.
- Control mode: USB and UART (TTL) to accept command. (Comes with USB data wire and PC controlling software)
- Flash: onboard 512K ROM(If every command is used to control the 32 motors at the same time,more than 500 commands can be saved.)
- Dimension : 63.5mm x 43.5mm x 1.6mm

Usage:
1. Open wireless receiver, solder with 7 dupont line according to the order of the picture showed.
2. Connect 7 dupont line with the main board according to the order shown.
3. Set up all buttons’s instructions of PS2 controller via computer software.


Note:

The wireless handle is designed for servo controller module, remote distance about 8 - 10m, using two AAA battery. (battey not included in this listing)

Package list:

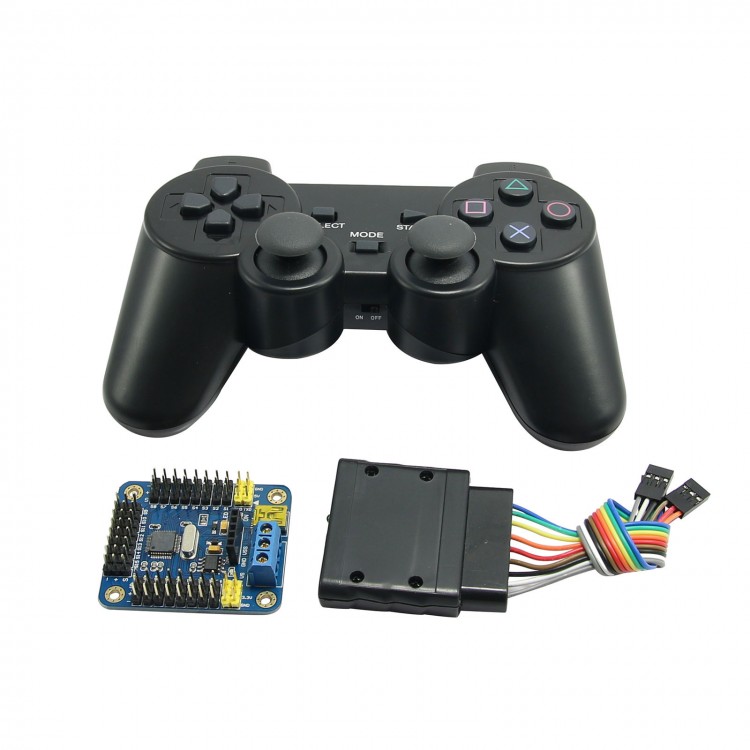

- 1 pc 24 Channel Servo UART USB Controller board
- 1 pc Remote handle controller kit
- 1 pc remote receiver

Download:
- Video instruction
- Data download
- User Manual
