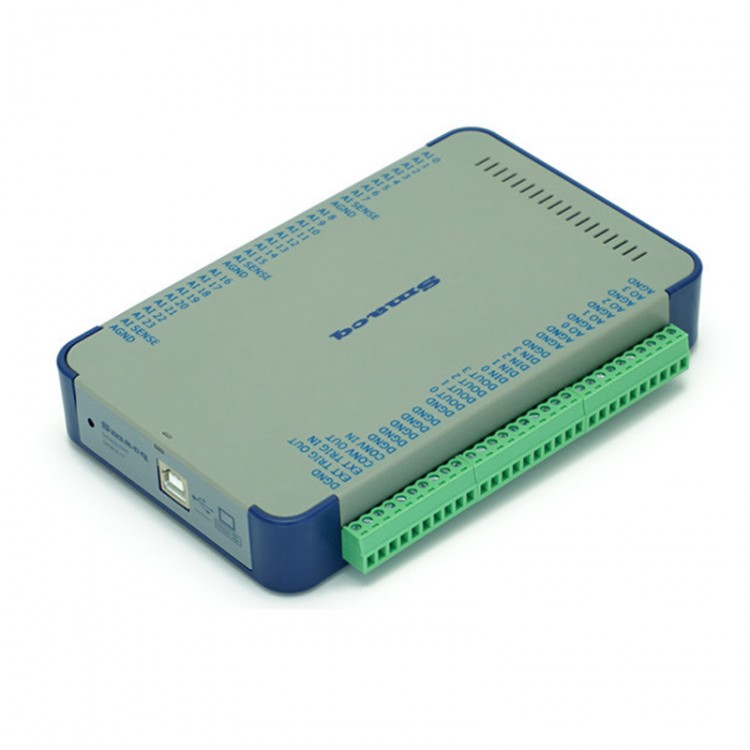

USB-3210 USB Data Acquisition Card 16Bit 125KSa/s 8 Analog Inputs 4 Digital Inputs 4 Digital Outputs

USB-3210 USB Data Acquisition Card 16Bit 125KSa/s 8 Analog Inputs 4 Digital Inputs 4 Digital Outputs

USB-3210 Introduction:
- Resolution: 16-bit
- Sampling Rate: 125kSa/s
- Analog Input: 8-ch
- Analog Output: None
- Digital Input: 4-ch
- Digital Output: 4-ch

Description:
It is a multifunctional data acquisition card based on the high-speed USB2.0 interface, which can be used for continuous high-speed signal acquisition and continuous high-speed output of control signals when connected to a computer. The data acquisition card can measure analog and digital signals, and record measurement data continuously and uninterruptedly to a computer hard disk; it can also output digital signals, can output periodic repetitive signals, or high-speed output of uninterrupted non-repetitive signals controlled by the computer . It supports use in operating system for Windows, provides a standard dynamic link library, and supports for mainstream development languages such as VC++, VB, C#, LabVIEW, and Matlab.

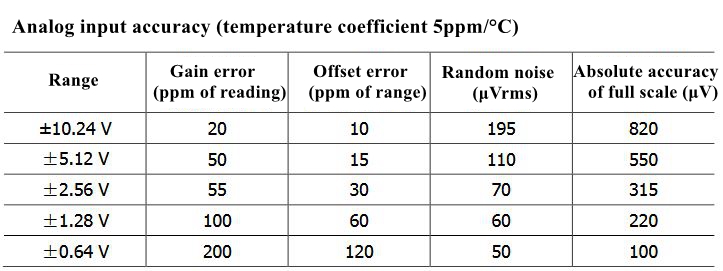

Analog Input:
- Number of channels: USB-3210: 8 single-ended/4 differential
- ADC type: SAR
- Resolution: 16-bit
- The highest sampling rate: USB-3210: 125kS/s, continuous without interruption, the sum of the channels used
- Timing resolution: 10ns
- Channel synchronization: No
- Range: ±10.24V / ±5.12V / ±2.56V / ±1.28V / ±0.64V
- Input coupling mode: DC
- Input impedance: 500MΩ
- Small signal bandwidth (-3 dB): 450kHz
- Input bias current: 0.7nA
- The highest voltage of analog input: the voltage of each input terminal to ground does not exceed ±12V
- Software FIFO: 2MPts/Ch
- Pre-trigger FIFO: 4096Pts
- AI acquisition mode: continuous acquisition mode and limited number of acquisitions



Digital I/O:
- Number of channels: 4 inputs, 4 outputs
- Reference ground: DGND
- Digital input: pull-up resistance 10kΩ
- Digital input voltage: High level: 1.95V~5V; Low level: 0V~1.2V
- Digital output voltage: High level: 3.3V; Low level: 0V~0.003V
- Digital output power state: low level
- DIN highest sampling rate: 10MS/s/Ch
- The highest update rate of DOUT: 10MS/s/Ch
- Timing resolution: 10ns
- Channel synchronization: yes
- DIN software FIFO: 2MPts/Ch
- DIN pre-trigger FIFO: 2048Pts/Ch
- DOUT hardware FIFO: 2048Pts/Ch
- DIN acquisition mode: continuous acquisition mode and OneShot mode
- DOUT output mode: direct output, periodic generation of onboard FIFO waveform, onboard FIFO waveform to trigger N cycles, uninterrupted non-repetitive signals buffered by the computer
- DOUT edge time: rising edge: 6ns; falling edge: 8ns

External Trigger:
- Number of external trigger channels: 1 input, 1 output
- Input voltage: high level: 1.95V~5V; low level: 0V~1.2V
- Output voltage: High level: 3.3V; Low level: 0V~0.003V
- Output power state: low level
- Output edge time: rising edge: 6ns; falling edge: 8ns

External Sampling Clock I/O:
- Number of channels: 1 input, 1 output
- Input voltage: high level: 1.95V~5V; low level: 0V~1.2V
- Output voltage: High level: 3.3V; Low level: 0V~0.003V
- Output power state: low level
- Output frequency range: DC ~ 1 MHz
- Output edge time: rising edge: 6ns; falling edge: 8ns

Calibration:
- Recommended warm-up time: no less than 20 minutes
- Recommended calibration interval: 1 year

Bus Interface:
- USB: USB2.0 high speed interface

Power Supply Requirements:
- USB interface power supply: 4.5V~5.5V
- Typical current without load: 400mA
- Maximum load: 600 mA

Physical Characteristics:
- Size: Without connector: 150*96*28mm; With connector: 150*112*28mm
- Weight (g): Without connector: about 185g; With connector: about 230g
- I/O connector: screw terminal
- Screw terminal connection: 16AWG~28AWG
- USB connector: USB Type B

Package Included:
- 1 x Set of Data Acquisition Module
