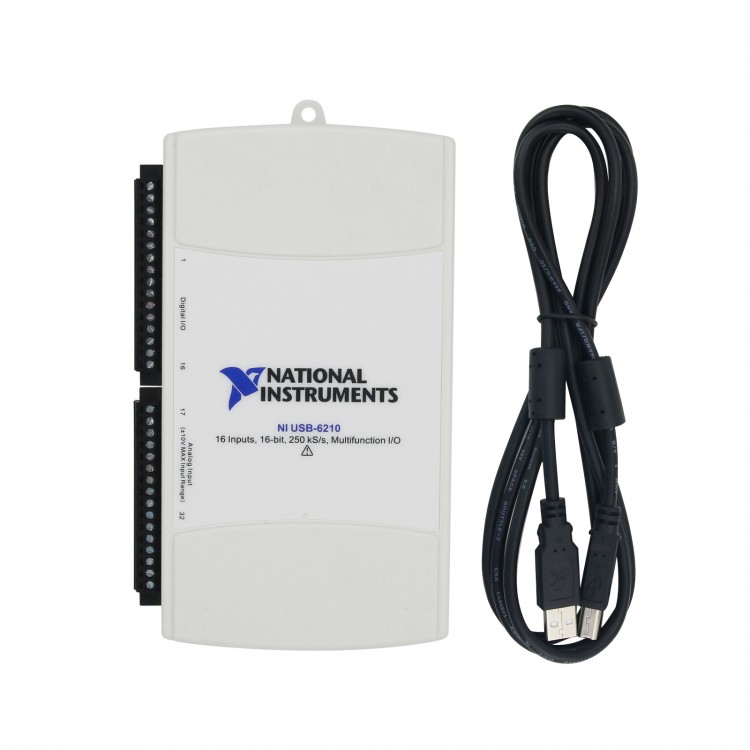

USB-6210 OEM Data Acquisition Card DAQ USB 779675-01 16 Input 16Bit 250KS/s Multifunction I/O for NI

USB-6210 OEM Data Acquisition Card DAQ USB 779675-01 16 Input 16Bit 250KS/s Multifunction I/O for NI

Description:
USB-6210 is a USB bus powered M series multifunction DAQ module. It also maintains high accuracy at high sample rates. The module provides 16 analog inputs; 250kS/s single-channel sampling rate; 4 digital input lines; 4 digital output lines; each channel has 4 programmable input ranges (±0.2 V - ±10 V); digital Triggered; 2 counters/timers.

The USB-6210 is specifically designed for mobile applications and space-constrained applications. Its plug-and-play installation minimizes configuration and setup time, while its direct connection to screw terminals cuts costs and simplifies signal connections. USB bus power eliminates the need for users to carry an extra external power supply.

The module also features the new signal data flow technology for NI, which implements DMA-like bidirectional high-speed data flow operations on the USB bus.

Features:
- 16 analog inputs (16-bit, 250kS/s)
- 4 digital inputs; 4 digital outputs; two 32-bit counters
- USB bus-powered for flexible mobility; built-in signal connections
- Plug and play USB for automatic detection and configuration
- Compatible with software for Measurement Studio for LabVIEW, LabWindows/CVI, and Visual Studio.NET
- Driver software for NI-DAQmx and interactive data logging software for NI LabVIEW SignalExpress

Product Software:
NI-DAQmx drivers and measurement services software provide an easy-to-use configuration and programming interface, and features such as the DAQ Assistant help reduce development time. M Series devices for NI are not compatible with traditional drivers for NI-DAQ (Legacy).

Every M Series data acquisition device includes a copy for NI LabVIEW SignalExpress, allowing you to quickly acquire, analyze, and display data without programming. In addition to the copy for LabVIEW SignalExpress, M Series data acquisition devices are compatible with the following application software versions (or later) for NI, i.e., software for LabVIEW 7.1, LabWindows/CVI 7.x, or Measurement Studio 7.x. The M Series data acquisition devices for NI are compatible with tools for Visual Studio .NET, C/C++, and Visual Basic 6.

Parameters:
General Specifications:
- Product: USB-6210
- Product Family: Multifunctional DAQ
- Bus Type: USB
- Product Number: 780103-01; 779675-01
- OS/Object: for Linux, Mac OS, and Windows
- DAQ Product Family: M Series
- Measurement Type: Voltage
- Isolation Type: None
- Conformance with RoHS Directive: Yes
- USB powered: bus powered

Analog Input:
- Number of channels: 16 and 8
- Single-ended channels: 16
- Differential Channels: 8
- Resolution: 16 bits
- Sampling rate: 250kS/s
- Maximum analog input voltage: 10 V
- Large voltage range: -10 V to 10 V
- Accuracy over wide voltage range: 2.69 mV
- Sensitivity over a wide voltage range: 91.6 μV
- Small voltage range: -200 mV to 200 mV
- Accuracy in small voltage range: 0.088 mV
- Sensitivity in small voltage range: 4.8 μV
- Number of ranges: 4
- Simultaneous sampling: no
- On-board storage: 4095 samples

Analog Output:
- Number of channels: 0

Digital I/O:
- Bidirectional channel: 0
- Input channels only: 4
- Output channels only: 4
- Timing: Software
- Logic level: TTL
- Input current: leakage current and source current
- Output current: leakage current and source current
- Programmable Input Filter: No
- Support Programmable Power-Up State: Yes
- Single-channel current drive capability: 16 mA
- Total current drive capability: 50 mA
- Watchdog Timer: No
- Support handshake I/O : Not
- Mode I/O supported: No
- Large input range: 0V-5.25V
- Large output range: 0V-3.8V

Counter/Timer:
- Number of counters/timers: 2
- Buffer operation: yes
- Glitch Cancellation: Yes
- GPS Sync: No
- Large range: 0 V-5.25 V
- Large signal source frequency: 80 MHz
- Pulse generation: yes
- Resolution: 32 bits
- Time base stability: 50 ppm
- Logic level: TTL

Physical Standard:
- Length: 16.9cm/6.7"
- Width: 9.4cm/3.7"
- Height: 3.1cm/1.2"
- I/O Connector: Screw Terminal

Timing/Triggering/Syncing:
- Trigger: Digital

Package Included:
- 1 x Data Acquisition Card

Note:
- It is a non-original product, made in China by a subsidiary factory.
