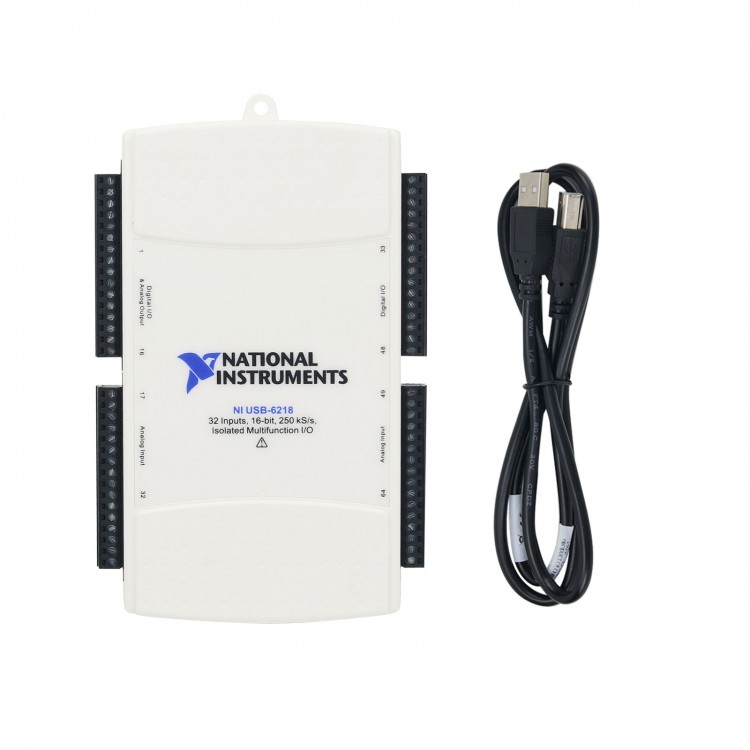

USB-6218 DAQ USB Data Acquisition 779678-01 32 Inputs 16Bit 250KS/s Replaces the Original One for NI

Availability: In stock, usually dispatched in 1 business day

  • Price:$773.85
  • Price in reward points: 7739 Reward Points: 77
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $758.37 $742.90 $719.68 $688.73 Contact US
Quantity:
USB-6218 DAQ USB Data Acquisition 779678-01 32 Inputs 16Bit 250KS/s Replaces the Original One for NI

Features:

- 16-Bit, 250kS/s Isolated M-Series MIO DAQ, bus powered
- 32 analog inputs (16-bit, 250kS/s)
- 2 analog outputs (16-bit, 250kS/s); 8 digital inputs; 8 digital outputs; 2pcs 32-bit counters
- 60V, CAT I isolation (1000Vrms, 5s momentary isolation) for better reliability and safety
- Signal reading and writing for continuous high-speed data streaming over USB
- Compatible with Measurement Studio for LabVIEW, LabWindows/CVI, and Visual Studio.NET
- NI-DAQmx driver software and interactive data logging software for NI LabVIEW SignalExpress LE

Specifications:

General:
- Product Family: Multifunctional DAQ
- Measurement Type: Voltage
- Form Factor: USB
- Operating System/Target: for Linux, Mac OS, and Windows
- RoHS Compliant: Yes
- Isolation Type: Channel-Ground Isolation

Analog Input:
- Single-ended channels: 32
- Differential Channels: 16
- Analog input resolution: 16bits

Voltage Range:
- Range: -10V to 10V
- Accuracy: 2.69mV
- Sensitivity: 91.6µV

Small Voltage Range:
- Range: -200mV to 200mV
- Accuracy: 0.088mV
- Sensitivity: 4.8µV
- Number of ranges: 4
- Simultaneous sampling: No
- Onboard memory: 4095 samples

Analog Output:
- Number of Channels: 2
- Resolution: 16bits

Maximum Voltage Range:
- Range: -10V to 10V
- Accuracy: 3.512mV

Minimum Voltage Range:
- Range: -10V to 10V
- Accuracy: 3.512mV
- Update Rate: 250kS/s
- Current Drive Single: 2mA
- Current to drive all devices: 4mA

Digital I/O:
- Bidirectional Channels: 0
- Input-Only Channels: 8
- Output-Only Channels: 8
- Timing: Software
- Logic Levels: TTL
- Programmable Input Filters: No
- Supports Programmable Power-Up States: Yes

Digital Input:
- Input Type: Source; drain
- Maximum Voltage Range: 0V-5.25V

Digital Output:
- Output Type: Source; drain
- Current Drive Single: 16mA
- Current Drive All: 50mA
- Maximum Voltage Range: 0V-5V

Counters/Timers:
- Watchdog Timer: No
- Counters: 2
- Buffered Operations: Yes
- Debouncing / Glitch Removal: Yes
- Max Source Frequency: 80MHz
- Pulse Generation: Yes
- Size: 32 bits
- Time-base Stability: 50 percent
- Logic Levels: TTL

Timing / Triggering / Synchronization:
- Triggering: Numbers

Physical Specifications:
- Length: 16.9cm/6.7"
- Width: 9.4cm/3.7"
- Height: 3.1cm/1.2"
- I/O Connector: Screw Terminal
- USB Power: Bus Powered

Package Included:
- 1 x DAQ Card
