Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $271.54 | $266.00 | $257.68 | $246.60 | Contact US |

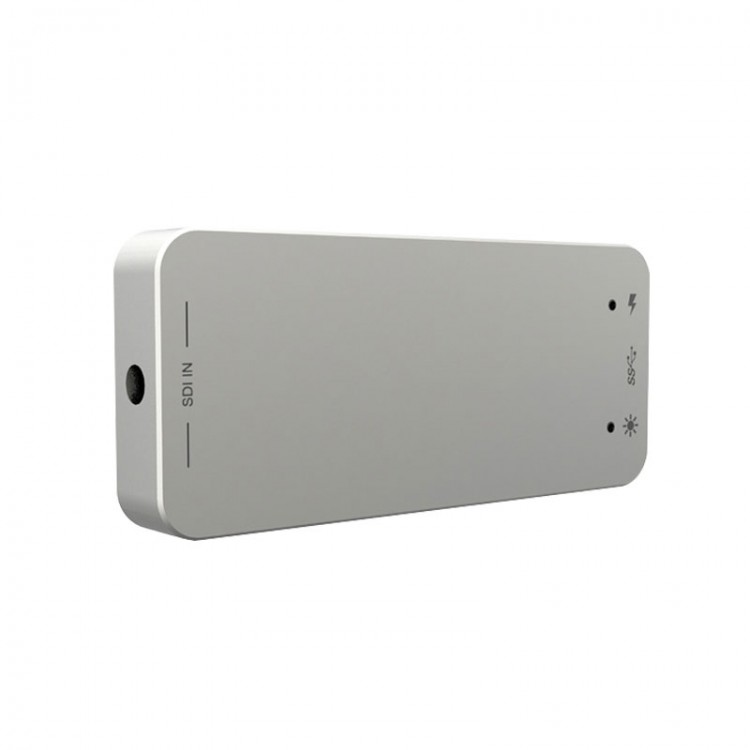

USB Acquisition SDI One Channel AD HD 3G-SDI Acquisition Dongle 1080P USB3.0 Driver Free
Incredible Compatibility:
USB 3.0 interface is used and is also compatible with USB 2.0. Compatible operating systems: Windows (7, 8, 8.1), Linux (kernel version 2.6.38 and above), OS X (10.8 and above). Compatible with various software with DirectShow architecture.
Excellent Video Processing
- Support up to 1920 x 1200p 60Hz(CVT-RB) video input.
- Video output support up to 1920x1200p 60 Hz.
- Video and audio processing is done by the dongle and will not occupy CPU.
- The processing includes up/down scaling of video resolution, frame rate and audio sampling rate.
- Support brightness, contrast, hue, saturation, and other image adjustment functions.
- Support output format: 4:4:4, 4:2:2, YUY2, RGB 24, 8 Bit.
Reliable and Stable
Metal housing helps to cool the chip effectively. Standard USB 3.0 interface is used, so it does not easily come loose after long time of use. Pass through 7x24h continuous high load tests in high and low temperatures (0-50 degrees).
Package included:
- 1 x USB Acquisition SDI
- 1 x USB3.0 cable
- 1 x MCX to BNC cable
- 1 x Guide
