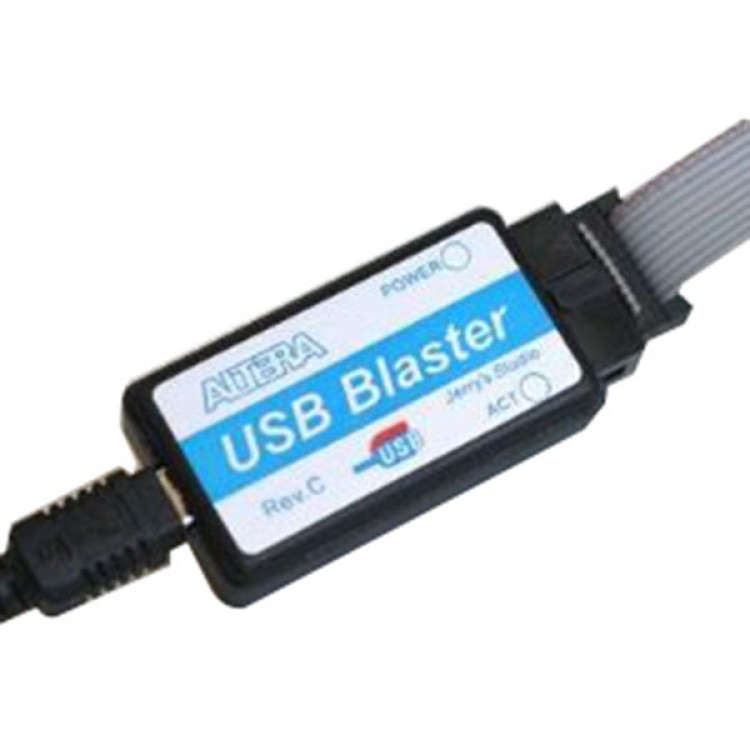

USB Blaster (ALTERA CPLD/FPGA Download Cable) For CPLD FPGA NIOS JTAG Altera Programmer
FEATURES :
1. Support 1.5V,1.8V,2.5V,3.5V and 5.0V.
2. Support all ALTERA products : CPLD ( MAX3000, MAX7000, MAX9000 and MAX II ) ; FPGA ( Stratix, StratixII, Cyclone, CycloneII, ACEX 1K, APEX20K and FLEX 10K ) ;Active serial configuration device (EPCS1, EPCS4, EPCS16)
---- Now we have tested chip using this tool is: Cyclone (EP1C3, EP1C6, EP1C12, EP1C20) ; Cyclone II (EP2C5, EP2C8, EP2C35) ; Stratix (EP1S10, EP1S20, EP1S25) ; Stratix II(EP2S60) ; FLEX10K(EPF10K10, EPF0K30) ; ACEX1K(EP1K30) ; MAX7000(MAX7128SLC84, MAX7128) ; AETC100(MAX3000, MAX3128) ; MAXII(MAXII240, MAXII570, MAXII1270) ; EPCS(EPCS1, EPCS4, EPCS16) ; EPC(EPC1, EPC4)
3. Support AS, PS and JTAG program ( with Verify and BankCheck function) .
---- When we tested the chip above , we use the different program mode: JTAG ( Cyclone, CycloneII, Stratix II, Flex10K, Acex1K, Max7000 and Max3000) ; AS ( EPCS1, EPCS4, EPCS16 ) ; PS ( Stratix , Stratix GX )
4. Support embedded logic analyzer function of SignalTapII
5. Support NIOS II communication and debugger -- When you use it to debug your Black Gold , it will not Pop-up warning
6. Faster -- about 6 times than ByteblasterII
7. USB interface ! -- you don't need a PC with serial port now
8. 100% compatible with Official ALTERA USB Blaster
