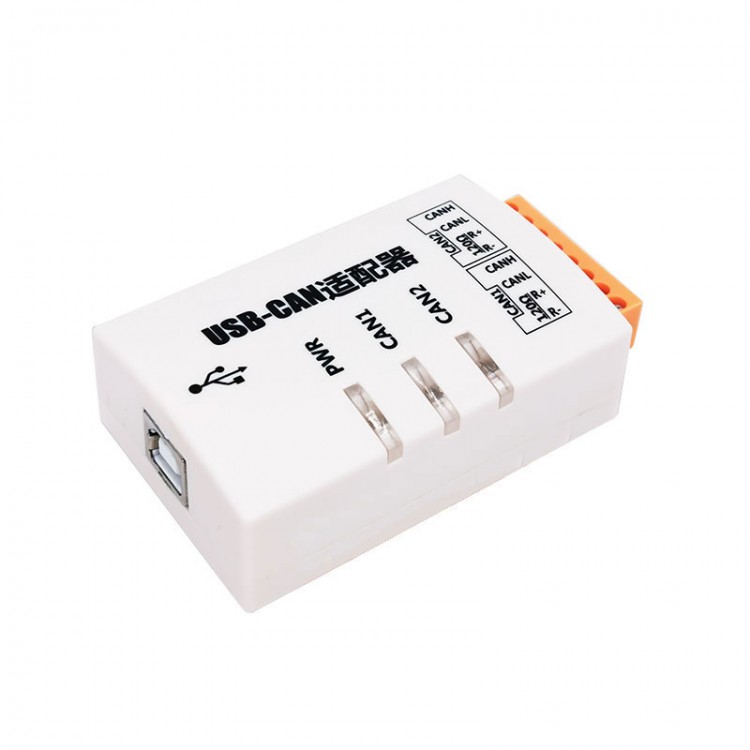

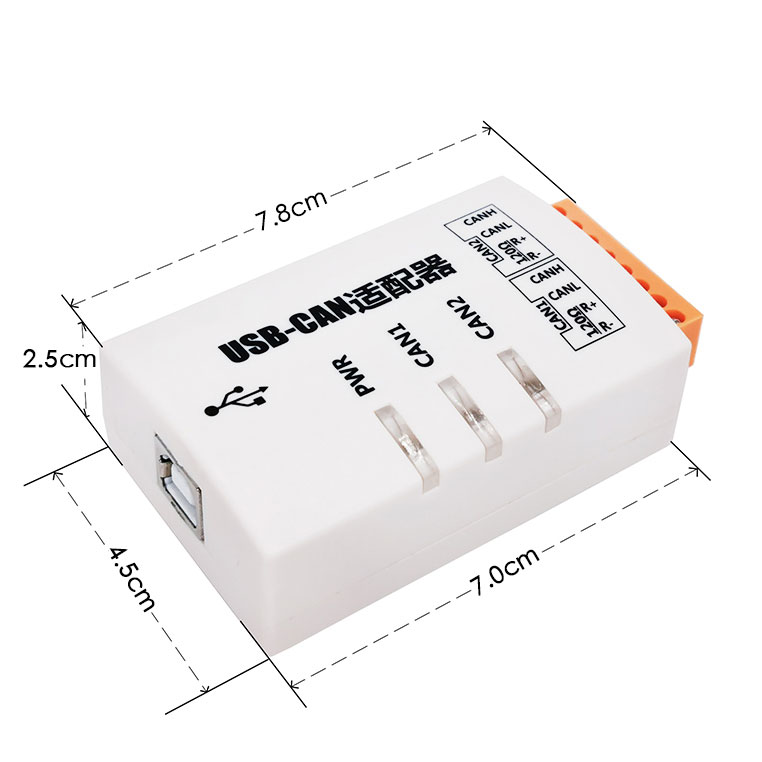

USB_CAN-2C USB CAN Adapter USB To CAN Adaptor Dual-channel Industrial Isolation Suitable For ZLG

USB_CAN-2C USB CAN Adapter USB To CAN Adaptor Dual-channel Industrial Isolation Suitable For ZLG

Features:
- Support remote software and firmware online upgrades! Click the software button to upgrade the system
- Quality assurance, stability and reliability, the first choice for research institutes and industrial applications
- More than 20,000 companies are using our products
- Freely switch software language Chinese simplified, Chinese traditional, English
- Support offline intelligent relay function, can be used as a relay
- Support automatic baud rate detection, relay and transparent transmission functions
- Provide 32-bit, 64-bit secondary development interface
- Configurable to any baud rate, full range baud rate
- Open PC-side debugging software source code
- Provide sample source code for secondary development projects of various mainstream development platforms: for C++Builder, C#, VC, VB, VB.NET, Delphi, LabVIEW, LabWindows/CVI, Matlab, Python/Python-can, QT
- Support for ZLG ZOPC_Server OPC server software
- Support for configuration software such as Kingview/MCGS
- Support for USBCAN-2E-U
- Support DBC protocol analysis, DBC file import
- Can directly analyze the engine speed and other information in the car OBD interface
- Filter table intuitive configuration, intelligent filtering (unlimited ID or ID segment)
- It adopts the stable driver under the system for windows-for Microsoft winUSB. Support for Microsoft digital signature authentication, and is the first to support for win10 32/64bit!
- For win7 and above, the system will automatically install the driver
- Support bus load rate/utilization rate/flow rate, real-time graph display of curve
- Military-grade craftsmanship:
 * PCB adopts high-standard military grade A grade material for KB (with watermark anti-counterfeiting mark)
 * Fully imported electronic components, automatic placement machine processing (SMT), lead-free technology
 * Optical inspection, 72 hours continuous sending and receiving verification test, high and low temperature aging test, vibration and shock test
- Each channel has two built-in 120 ohm terminal resistors, which is convenient for point-to-point debugging
- Two channels reach 8500 frames per second at the same time, and the two channels are independently configured, work independently, and do not interfere with each other
- Two channels can communicate with each other, which is convenient for testing and learning
- Products are exported to foreign countries, lead-free technology, Chinese and English manuals and software are provided
- The product shell is no longer printed with the manufacturer's logo, which is convenient for resale, OEM, and project application

Advantages:
① Adopt 32-bit 80M high-frequency, high-performance processor, with 512K flash, 128K SRAM storage space.
② It adopts advanced online programming technology (write FLASH online) to save CAN configuration information and status in real time, without tedious configuration every time it turns on.
③ 10K~1M baud rate can be configured arbitrarily, with baud rate calculation and configuration tools, one-key configuration.
④ 10K~1M baud rate can be measured in any frame, and the baud rate of the target device can be automatically measured in seconds.
⑤ Support for win10/win8/win7/xp (64bit/32bit), USB1.1/USB2.0/USB3.0 and tablet OTG specifications. Perfect support for Windows tablet.
⑥ All use military-grade craftsmanship, mass production testing, and quality assurance.
⑦ Unique encryption technology: The user develops the software for the second time, which can realize the binding of the software and the hardware, or a set of keys can be built in the software to realize the binding of one software to multiple specific devices.
Our company guarantees that products have different keys, and batch customers can customize the same key to facilitate software programming.

Functions:
- Dual ports with isolation
- Plastic shell, supports data receiving and sending, relay and transparent transmission functions
- 2500V single isolation
- Support for debugging software comes with USB CAN Tool, ZLG CANTest, Geeyang CANTools, etc.

Attention:
1. Support for our company's USB_CAN_Tool (provide original code), ZLG CANTest, ZLG CANpro protocol analysis platform, Geeyang CANTools, freescale motor debugging software FreeMaster new version software.
2. Software for ZLG CANpro supports for CANopen, SAE J1939, DeviceNET, iCAN and other high-level protocol analysis and custom protocol analysis software. Therefore, all products compatible with CANPro software for ZLG use this software, and the functions of the products are all the same, which are a level higher than the performance and functions of USBCAN.
2. With CAN intelligent relay function, transparent transmission function (fully reflect the advantages of dual channels).

More Details:
- High-speed USB2.0 interface compatible with USB3.0 and USB1.1
- 2-channel 2500VDC electrically isolated CAN interface, electrostatic level contact discharge ±8KV.
- Full load receiving capability at any baud rate, large 130,000 frame buffer, no frame loss
- Support for Freescale chip CAN bus upgrade firmware
- The CAN protocol fully complies with CAN 2.0B specifications, is compatible with CAN 2.0A, and complies with ISO 11898-1/2/3. Users can purchase CANBridge-1054 separately, which supports the fault-tolerant CAN standard of ISO11898-3
- CAN baud rate can be set arbitrarily, the range is between 10kbps~1Mbps
- Support detecting the bus baud rate, you can easily know the unknown baud rate of the bus
- Support various development environments, efficient and easy-to-use secondary development functions, support various development environments, for example, it is for VC, C#, Labview, LINUX, etc.

About CAN Relay, Transparent Transmission Function:
① Relay (device) function: Support CAN relay function to realize real-time high-speed exchange of data of 2 CAN channels at the same or different baud rates. (Same as CAN repeater, can run offline)
② Transparent transmission function: In the relay state, through the PC software, the data exchange of CAN1 and CAN2 can be monitored in real time, and data can be sent to the bus at the same time.
③ The role of CAN relay (device): 1. Extend the receiving distance. 2. Signal isolation. 3. Connect the CAN network to the CAN repeater, and analyze the transceiver status of the CAN network without disconnecting the CAN network to facilitate protocol analysis. )
④ USBCAN device with dual-channel CAN, the advantage is to use its relay function, if a dual-channel CAN device does not have the relay function, it is no different from single-channel CAN.
⑤ CAN relay configuration software
⑥ Other features:
1. It can save configuration data, run after offline automatic initialization, and realize independent relay (device) function.
2. It can realize all-round control of data flow, CAN1->CAN2, CAN1<-CAN2, CAN1<->CAN2 can be selected according to needs.
3. In the relay process, the PC software can also be used to monitor the communication of the equipment to realize transparent transmission and send data to the bus at the same time. (At this time, the operation and function of the USBCAN device are exactly the same, and the relay function and transparent transmission function are realized at the same time.)

About USBCAN-2E-U DBC Protocol Analysis and Intelligent Filtering Function:
① USBCAN-2E-U is a new generation of USBCAN equipment for ZLG, USBCAN-I/II adopts USB1.1 chip + single-chip + CAN controller (SJA1000) program, and SPI communication is adopted between the chips. The USBCAN-2E-U uses an advanced 32-bit processor (with one USB2.0 full-speed interface, two high-performance CAN controllers), and all models of our company use the USBCAN-2E-U solution.
② Compared with USBCAN-I/II, USBCAN-2E-U not only improves communication performance and electrical reliability, but also adds abundant application functions. Mainly increase the DBC protocol analysis and intelligent filtering functions.
③ Each CAN channel of USBCAN-E(2E)-U can independently support the analysis of vehicle CAN-bus application protocol. As long as the user imports the relevant DBC file in the CANtest software, the analysis of application layer data can be realized. It can be used for vehicle CAN protocol analysis, vehicle testing and maintenance, cracking vehicle CAN protocol, etc.
④ All models of our company are compatible with USBCAN-I/II and USBCAN-2E-U, whether for debugging or secondary development.

Reasons For Choosing This Product:
1. Public debugging software CANTOOL source code:
Our USB CAN TOOL is an application software dedicated to USB CAN debugging that we have developed with all our heart. The software contains a variety of complex and practical functions, which cannot be achieved by the sample program source code!

2. Specific performance:
① Using a 32-bit 80M high-performance processor with a main frequency of 512K flash and 128K SRAM, which can cache 6000 frames of CAN information, which is better than STM and other solutions (the main frequency of STM series chips is not higher than 72M, and the size of 64～256K is not Such as Flash, SRAM not higher than 64K).
② It supports advanced online programming technology (write FLASH online) and can save CAN configuration information and status in real time (without external EEPROM), without having to perform tedious configuration every time it turns on.
③ The chip has one high-speed USB and two CAN ports, which is the current advanced solution. There is no data transmission bottleneck. Other USBCAN products on the market use multiple chips, serial or parallel communication in the middle, and use USB to simulate serial communication and other solutions. There are many communication bottlenecks, complicated circuits, and poor reliability.

3. Ratio rate:
The real full-speed USB can easily carry two channels of CAN and easily kill the low-end products on the market: USB serial port, single channel CAN and so on. The two channels reach 9000 frames per second at the same time, without mutual interference! A long time test does not lose a frame.

4. One machine for multiple devices:
On a PC, 10pcs USB-CANs can be run at the same time. Independent operation does not interfere with each other. It is used in a monitoring device to monitor multiple CAN networks at the same time, or when the reliability requires data comparison and time verification.

5. Host computer and compatibility:
All products are compatible with USBCAN device CAN-bus general test software CANTest new version (V2.41) for ZLG, compatible with USBCAN device CANTools tool software new version (V6.12) for Geeyang, compatible with software for Freescale FreeMaster ( Convenient for online real-time debugging of motor applications via CAN bus). Using our equipment can still continue to use these software, allowing you to achieve more powerful functions at a lower cost.

CANalyst-II analyzer supports for ZLG CANPro protocol analysis software V1.50.

6. Stable USB driver:
The driver uses the regular WinUSB driver (for Winusb.sys) for Microsoft fitting all USB devices. Standard drive and strong compatibility. Supports for Windows 10 (64-bit, 32-bit), Windows 8 (64-bit, 32-bit), Windows 7 (64-bit, 32-bit), Windows Server 2008, Windows Vista, Windows Server 2003, Windows XP (64-bit, 32-bit), Windows 2000. For above Windows 7, the system will automatically connect to the Internet, search, download, and install the USB driver. Plug and play, truly drive-free.

Supports for Linux system.

7. Complete engineering examples:
Provide various mainstream development platform engineering sample source code, simple modification on the basis of the sample project, you can complete most of the working conditions, greatly shorten the user development cycle, sample code development environment includes: for ①C++Builder, ②C #, ③VC, ④VB, ⑤VB.NET, ⑥Delphi, ⑦LabVIEW, ⑧LabWindows/CVI, ⑨Matlab, QT, and more

8. Full range of baud rate automatic recognition:
10k～1M baud rate range, you only need to click the mouse to detect the baud rate on the bus in seconds, saving countless precious time for your test work!

9. Simple and professional baud rate setting:
To set the universal standard baud rate, just select it in the drop-down list; at the same time, we also support multi-register combination to set non-standard baud rate, you can set any baud rate between 10K and 1M according to your needs!

10. Humanized filtering settings, easy to face complex filtering

11. Combine similar IDs and explain in simple terms:
Combining similar ID functions: A device generally sends a limited number of ID data, which has the same meaning as the ID data. Generally, debugging only needs to pay attention to the current frame of data.

Work in a simple way: When using this function, the software will highlight the changed data, which can help users quickly complete variable identification when cracking unknown protocols.

Performance and Technical Indicators:
- Protocol conversion between USB and CAN bus;
- Has 2 CAN interfaces;
- The USB interface supports USB2.0 and is compatible with USB1.1;
- Support CAN2.0A and CAN2.0B protocol, support standard frame and extended frame;
- Support two-way transmission, CAN sending and CAN receiving;
- Support data frame, remote frame format;
- The baud rate of CAN controller is optional between 10Kbps-1Mbps and can be configured by software;
- USB_CAN-2C: CAN bus interface adopts high-speed magnetic coupling isolation and isolated DC-DC power supply; USB bus and CAN bus are isolated, CAN1 and CAN2 are not isolated
- Flow: Two CAN channels (when running at the same time) respectively reach 8500 frames/s for receiving and 8500 frames/s for sending; (two channels receive 8500 frames/s at the same time, USB speed can reach 17000 frames/s, no frame loss );
- The internal CAN transmit buffer capacity is 1000 frames per channel (automatically retransmitted if the transmission fails), and the CAN receive buffer capacity is 2000 frames per channel;
- USB bus directly supplies power without external power supply;
- USB_CAN-2C, isolation voltage of isolation module: 2500V;
- Working temperature: -40 to 85℃;
- Product compatibility: The function library is compatible with adapter for ZLG-USBCAN interface.

Summary:
USB_CAN-2C can use the provided CANTools tool software to directly configure, send and receive the CAN bus. Users can also refer to the provided DLL dynamic link library and VC/VB routines to write their own application programs to facilitate the development of CAN system application software products.

When using it for secondary software development, you don't need to understand the complicated USB interface communication protocol at all.

Debugging Tool Developed Based on That for LABVIEW:
- Device model selection: USB_CAN-2C has two channels, select USB-CAN2.0
- Tool software main interface, universal and easy to operate
- Parameter setting: The baud rate, working mode, and filtering can be set separately; it supports direct selection and setting of general standard baud rate and advanced custom setting of unconventional baud rate.
- The scan time of receiving thread can be set, accurate to 1ms
- Display: Combine the same ID data to reduce the impact of interface display on the transmission and reception rate during high-speed transmission and reception
- Support custom display of data format
- Save data to EXCEL

Typical Application:
- Realize the sending and receiving of CAN bus network through the USB interface of PC or notebook;
- Fast CAN network data collection and data analysis;
- Fast CAN network data collection and data analysis;
- CAN bus-USB gateway;
- USB interface to CAN network interface;
- Extend the network communication length of CAN bus;
- Industrial field CAN network data monitoring;
- CAN-bus network debugging and testing;
- CAN2.0A/2.0B message analysis;
- For iCAN protocol analysis;
- For DeviceNet protocol analysis;
- For CANopen protocol analysis;
- For SAE J1939 protocol analysis.

Package Included:
- 1 x USB-CAN Adapter

Note:
- Other items mentioned are not included, for demonstration purposes only. Thank you for your understanding!
