• USB CNC 4Axis Kit 4pcs Nema23 Stepper Motor 57+USB MDK2 Motor Controller Board+1pc Handwheel+ Power

USB CNC 4Axis Kit 4pcs Nema23 Stepper Motor 57+USB MDK2 Motor Controller Board+1pc Handwheel+ Power

Availability: Out Of Stock

  • Price:$550.00
  • Price in reward points: 5500 Reward Points: 55
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $539.00 $528.00 $511.50 $489.50 Contact US
Quantity:

USB CNC 4Axis Kit 4pcs Nema23 Stepper Motor 57+USB MDK2 Motor Controller Board+1pc Handwheel+ Power

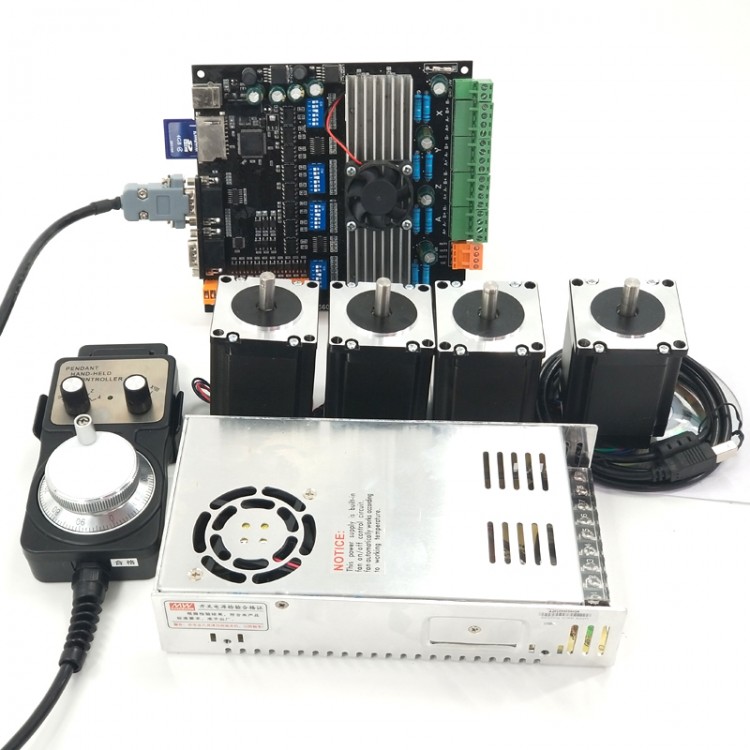

Package Included:

- 4 x Nema 23 Stepper Motors 57
- 1 x USB CNC 4 Axis MDK2 Motor Controller Board
- 1 x Handwheel
- 1 x Power
- 1 x USB Cable
- 1 x CD

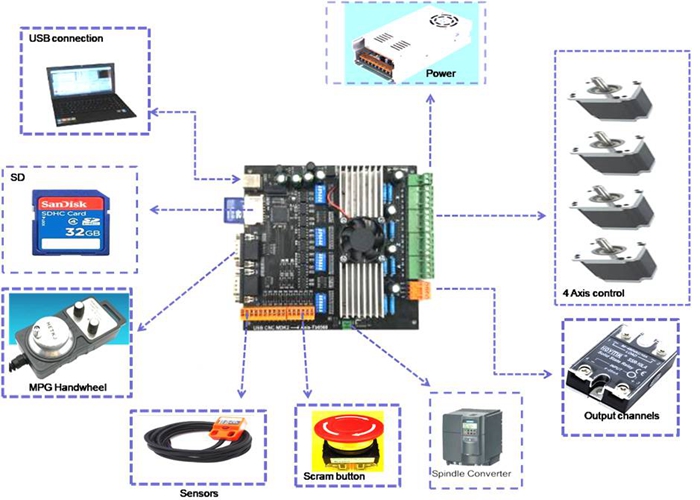

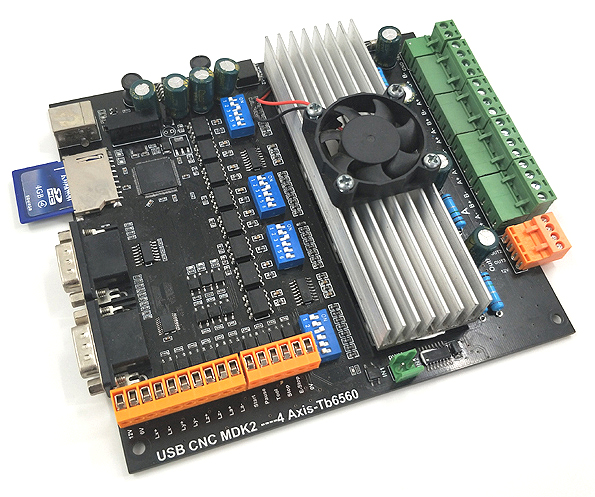

Motor Controller: USB CNC 4 Axis MDK2
- 4 axis controller for stepper and servo motors
- USB connection
- 100 kHz maximum step frequency
- 12 us minimum pulse width, 50% duty cycle at higher frequencies
- 7 digital outputs on board
- jogging keyboard support
- 8 limit switches with shift feature
- 5 inputs
- MPG pendant support
- Spindle encoder and index signal support for spindle synchronization
- SD card support for running g-code without computer
- control external devices with I2C and UART protocol
- Homing procedure
- Tool change procedure
- Tool length sensor support
- Sensor for capturing and measuring
- digitizing probe support
- Transformation matrix
- Soft limits
- Slave axes
- Backlash compensation
- API
Note:
- The controller should be powered with an external power supply.
- USB CNC MDK2 -4 Axis –Tb6560 requires 24V DC supply.
- Power supply should be at least 200mA.
- SD card in the pictures is not included. Thank you!

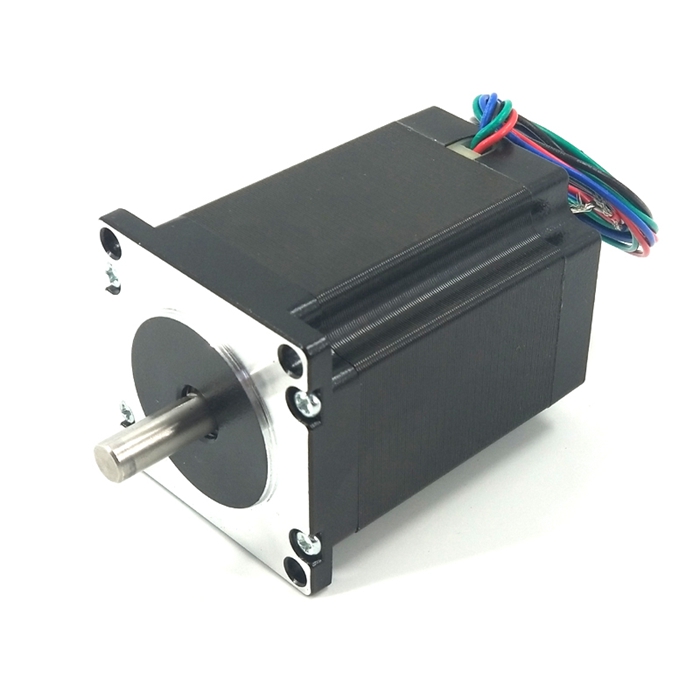

Nema 23 Stepper Motor 57:
- Step Angle (degrees): 1.8 deg.
- Holding Torque: 1.8Nm
- Phase: 2
- Current / Phase: 4

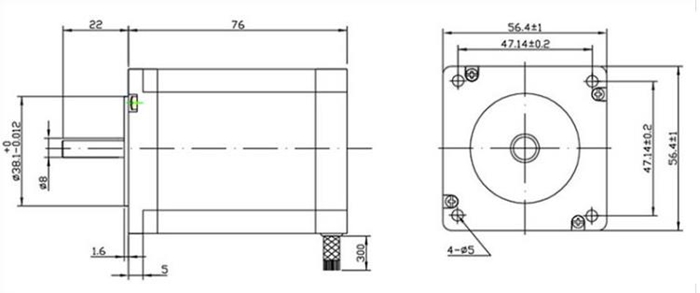

- Size: 57*57*76
- Shaft Diameter: 8mm

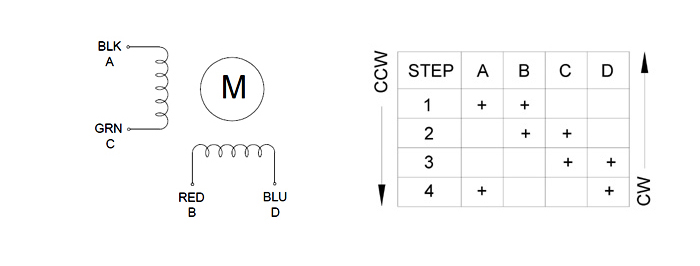

- Wiring Configuration: 4-Wire Bipolar
- Application: 3D printer, Robotics, Reprap project and CNC machine
- DM542 Stepper Motor Driver:

Features:
- 20KHz chopping frequency
- Optical isolation signal input
- Output current DIP switch is adjustable
- Bipolar constant current chopping method
- High segmentation: 2, 4, 8, 16, 32, 64, 128, 256. 5,10,25,50,125,200
- TTL input signal compatible, while accepting differential signal input

Specifications:
- Power supply: DC 24-60 (V)
- Current maximum: 4.5A
- Output phase current: 1.5A-4.5A
- Logic input current: 10-20mA
- Operating temperature:-15°—+45°
- Size:11.7*8.5cm/4.61*3.35inch
