USB Dongle Stick CC2538 CC2592 2.4G Dongle Zigbee2MQTT 6LowPAN HA With Shell
Overview:
Tiny USB stick or dongle, adapter, development board is for 2.4G multiprotocol RF such as for Openthread border router, Zigbee2MQTT adapter and Contiki 6LowPAN.
Features:

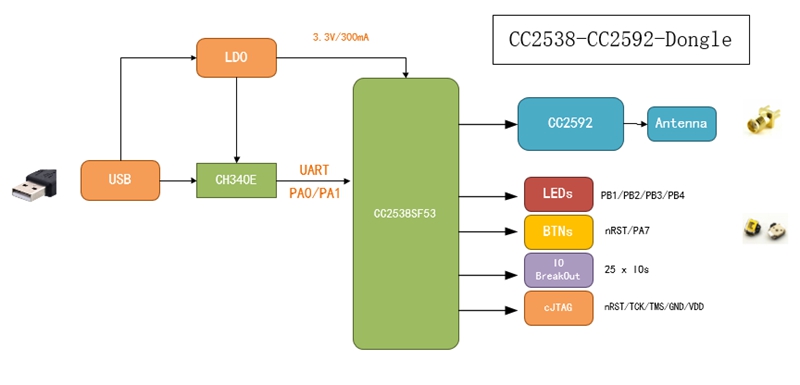

- 2.4GHz multiprotocol RF development board (for OpenThread, Zigbee, BLE, IEEE802.15.4, 6LoWPAN based on CC2538SF53 + CC2592 chip for TI)
- Communicates with the host computer via common CH340E USB-UART bridge
- cJTAG debug header, flashed firmware or debug with JTAG
- Self-programming via a serial bootloader for TI with bootloader bit enabled
- SMA antenna port for an external antenna with personal choice
- General 4xLEDs (PB1/PB2/PB3/PB4)
- General 2xButtons (BTN1--PA7 <Bootloader-enable> RST--nRESET)
- IO breakouts with 2.0mm/0.08" pitch holes for connecting peripheral device
- Low power LDOs
- ESD protections with USB interface
- Easy application for Koenkk's zigbee2mqtt
- Support for TI's OpenThread border router
- Confirmed working with ZHA, ZIGBEE2MQTT, Home Assistant
- Compatible with CC2538 + CC2592 SmartRF06EVB for TI
Package Included:

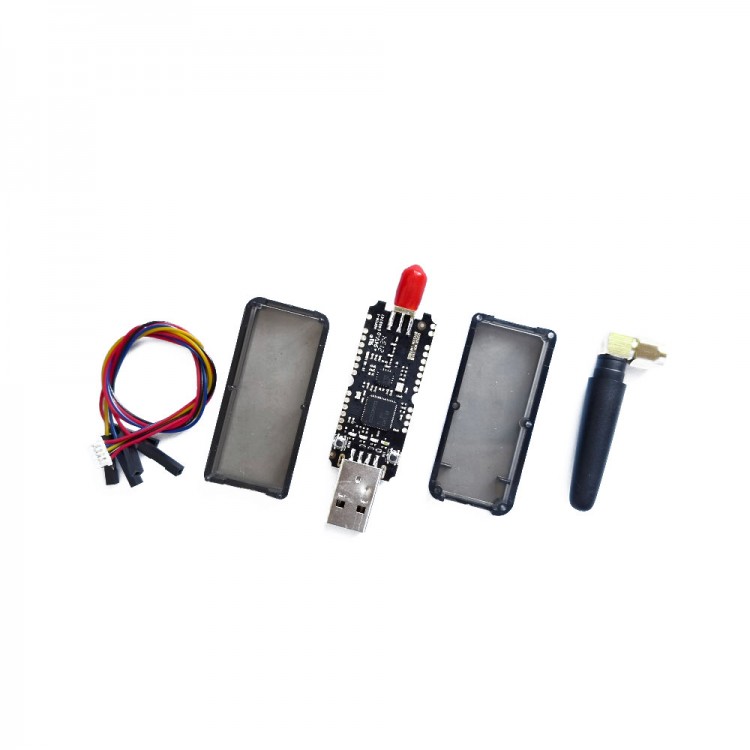

- 1 x Set of Dongle Stick
Testing:
1. RF performance testing
2. Frequency spectrum testing
3. Function testing
4. QC pass
BOM:
1. Inductor: for muRata
2. Capacitor: for muRata/AVX/Samsung
3. Resistors: for FH
4. Crystal oscillator: for TXC/TKD
5. LEDs : for Orient
Flashing:
1. Via USB interface with bootloader enable:
A. flash firmware using Flash Programmer 2 for TI: press BTN1 and keep holding --> click the Reset button --> wait a few seconds --> release BTN1 button --> Flash programmer 2 operation
B. flash firmware using cc2538-bsl.py
2. Via cJTAG interface with debugger tools for TI
Dimensions:
- 5.5 x 2.3 x 1.3cm/2.2 x 0.9 x 0.5"
Firmware:
The dongle comes stitched with coordinator firmwares of zigbee2mqtt, you can flash it with router or other types firmware via USB with bootloader enable condition. Link for https://github.com/Koenkk/Z-Stack-firmware/tree/master/coordinator/Z-Stack_3.0.x/bin

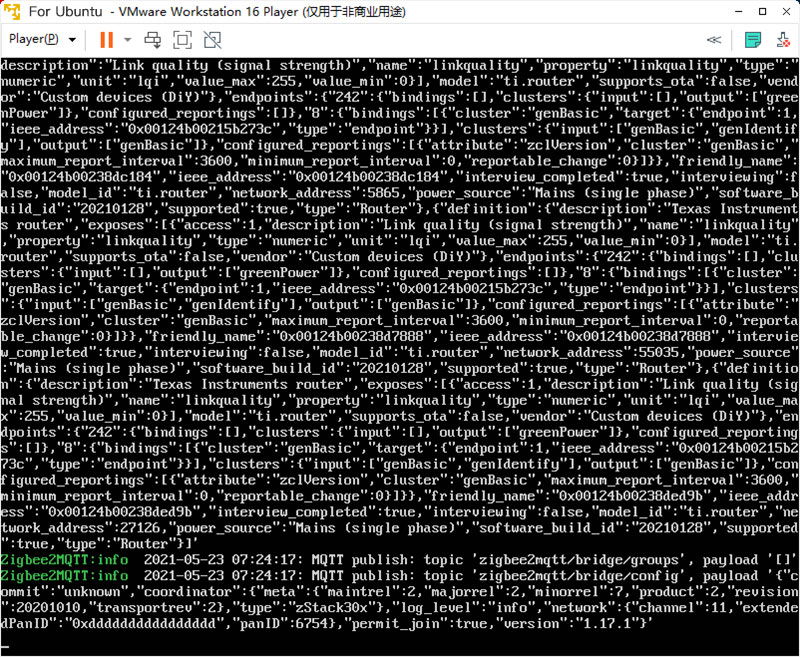

Zigbee2MQTT Snapshots:
