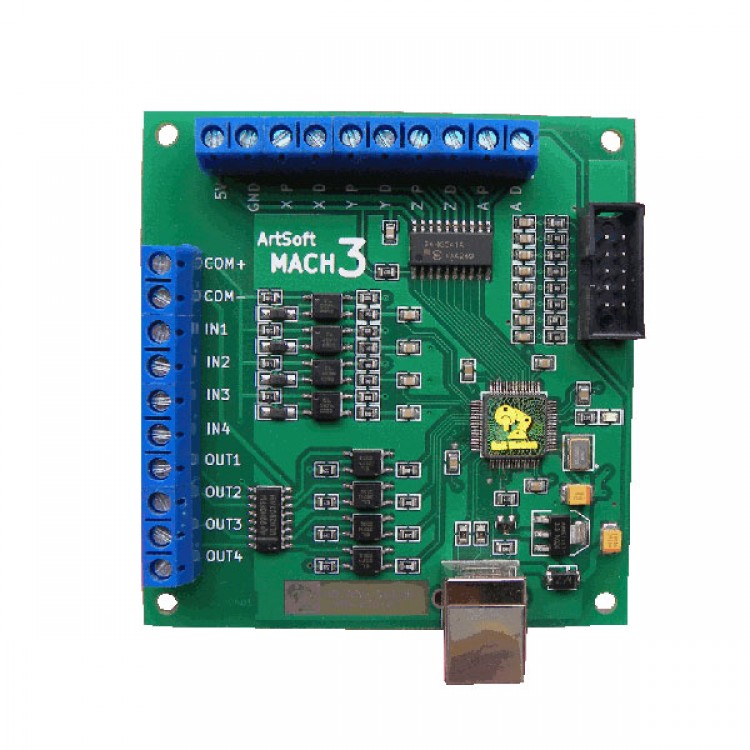

USB Interface MACH3 Motion Control Card DIY for Carving Machine

USB Interface MACH3 Motion Control Card DIY for Carving Machine

Description:
- This product is Mach3 motion control board for DIY lovers
- This card provides 4 axis driving, output impulse frequency 100K. enough for stepper motor
- This control card is recommended to use on DC main axis carving machine

Note:
- This main control board is specially for Mach3 software, not for Mach2 or USBCNC, or not for developing software by your own
- This board is USB no driver design, has good compatibility. Support winxp system, win7 system (32 bits or 64 bits), win8 (win8.1) system

Functions:
- Support most 4 axis parallel control, the forth axis can be set as driven shaft
- Output impulse 100K, adopting min error interpolation algorithm, high processing precision
- USB interface, suitable for USB interface computer
- No driving design, can well compatible with all kinds of hardware environment
- Support automatic zero set
- Driven shaft to zero in the automatic leveling
- Support automatic tool setting
- Support emergency stop input
- Support limit switch access
- Support main axis control(PWM way and relay way)
- Providing 4 axis with coupling with photoelectric isolation digital signal input
- Max support 12 channel digital signal input
- Providing 4 channel with coupling isolation relay output
- Support handwheel interface
- Anti interference design, imported industrial components assembling, high reliability

Package includes:
- GI AT USB interface Mach3 motion control card x 1
- CD x 1 (including Mach 3 software, Mach3 driving plug-ins, tool code)
- Shielding USB calbe
